Relay Timer Display DC 6V-30V Delay Timer Module Switch Control Suport Micro USB 5V

Detail Relay Timer Display DC 6V-30V Delay Timer Module Switch Control Suport Micro USB 5V

Hi #RekanEasyWare ...
EasyWare Part#: EP001749

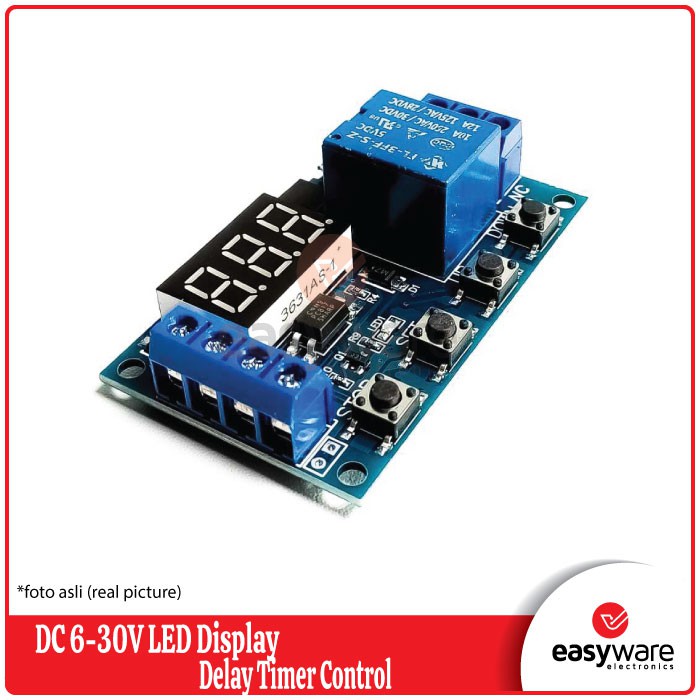

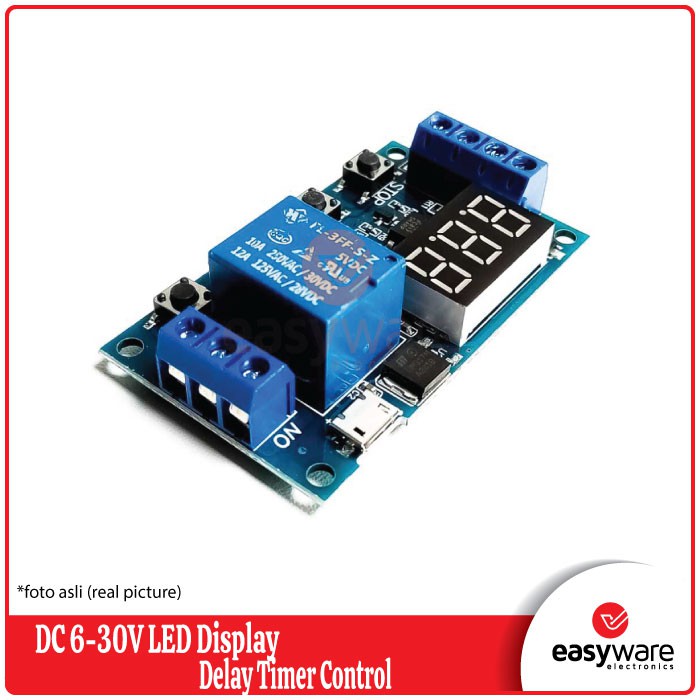

Relay Timer Display DC 6V-30V Delay Timer Module Switch Control Suport Micro USB 5V
Features:
- Wide voltage power supply (6 ~ 30V) supports micro USB 5.0V power supply, easy to use;
- The interface is clear and simple, powerful, easy to understand, meet almost all your needs;
- There is a key stop function (STOP key), with reverse polarity protection, reverse polarity does not burn;
- Increase the sleep mode, it enables, without any operation within 5 minutes, turn off the monitor automatically; any key to wake up;
- You can set a different OP, CL, LOP parameters, which are independent of each other, were saved;
- All setup parameters are saved automatically power down.

Product parameters:
- Operating voltage: 6--30V support micro USB 5.0V power supply
- The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming capability of the system (also self-shorting common ground)
- Output capability: You can control the DC or AC within 30v 5A within 220v5A
- Quiescent Current: 20mA Operating Current: 50mA
- Timing range: 0.1 seconds -999 minutes continuously adjustable;
- Availability: more than 10 million times;
- Working temperature: -40-85 Celsius ;
- size: 6.2 * 3.8 * 1.7cm
- with optocoupler isolation, enhanced anti-jamming capability, industrial grade circuit boards, set the parameters after power failure memory forever.
- Special Note: The relay outputs are passive contact, uncharged output to control a line-off role.

Kelengkapan :
- 1 pcs Relay Timer Display DC 6V-30V Delay Timer Module Switch Control

Gambar produk
