Relay Timer Display 4 Tombol DC 6V~30V Delay Time Module Switch Control

Detail Relay Timer Display 4 Tombol DC 6V~30V Delay Time Module Switch Control

Timer Display DC 6V~30V Delay Time Module Switch Control Dpt digunakan dgn PIR sensor, atau kipas, atau mesin penentas telur ayam, dll Spesifikasi:
• Voltage: 6V~30V rentang volt yang lebar (support micro USB 5.0V)
• Level Tegangan Trigger Input : 3.0V~24V , Signal ground an system ground tidak sama, bertujuan supaya tidak ada interferensi.
• Load Capacity: DC 30V 5A, AC 220V 5A
• Pemakaian arus standby: 20mA , Relay On: 50mA • Delay Timing 0.1 detik ~ 999 minutes (dapat di setting)
• Size: 6.2*3.8*1.7cm / 2.44*1.49*0.67" Cara Setting: Tekan Set selama 4 detik, untuk setting dan simpan, up dan down untuk mengubah nilai.
.• P1: Setelah sinyal trigger , relay ON selama OP time , dan kemudian Relay Off OP time
• P1.1: abaikan jika sinyal trigger terpicu lagi
• P1.2: jika ada triger lagi reset ulang timer , tp kl di trigger tetap HIGH counter tetap jalan
• P1.3: jika ada trigger relay langsung OFF, stop timer
• P-2: jika ada trigger, setelah OP time relay ON, dan OFF setelah CL time, re-trigger tidak berfungsi pd mode ini. •
• P3.1:Loop , jika ada trigger Relay ON selama OP time dan OFF setelah CL time, dan akan di ulang selama LOP time.(mis: jika OP = 7, CL=3, LOP=2 , jika ada trigger relay on selama 7 detik, dan OFF selama 3 detik, kemudian diulang sampe 2x), jika ada trigger akan counter akan di ulang
• P3.2: Loop sama dengan P3.1, beda nya hanya trigger pd saat power on counter langsung mulai, trigger tidak efek
• P-4: sama dengan p1.2, cuman kl triger on terus…counter akan diam…jika triger sudah OFF, counter akan jalan lagi selama OP time Paket yg di dapat: 1 pcs ★Relay Timer Display DC 6V~30V Delay Time Module Switch Control

Feature:
1. Wide voltage power supply (6-30V) supports micro USB 5.0V power supply, which is very convenient to use.
2. Clear and simple interface, powerful function, easy to understand, almost meet all your needs.

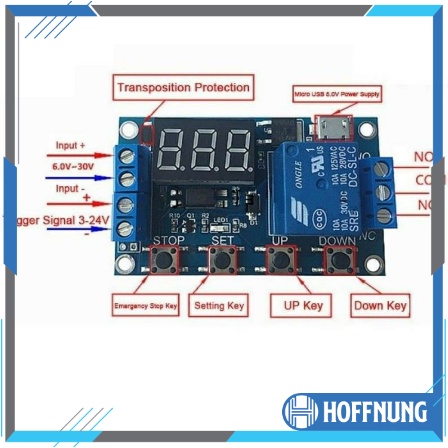

3. Has a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn.
4. Increased sleep mode, enabled, within 5 minutes without any operation, automatically shut down the display; any key wake-up.
5. Different OP, CL and LOP parameters can be set. These parameters are independent and stored separately.
6. All setting parameters are automatically saved after power failure.
7. With optocoupler isolation, enhance anti-jamming ability, industrial grade circuit board, set parameters after power off forever memory.

Specification:
Working Voltage: 6-30V Supports Micro USB 5.0V Power Supply
Trigger Signal Source: High-level Trigger (3.0V-24V) signal is not in common with the system to improve the anti-jamming ability of the system (also can be connected to the ground by itself)

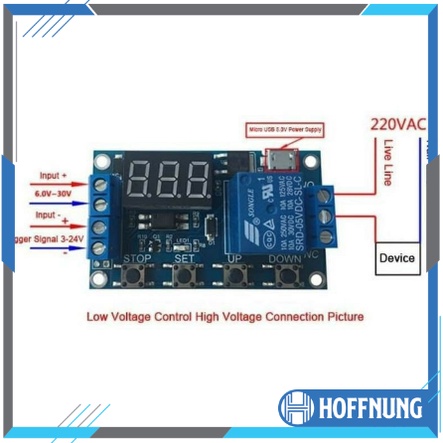

Output capability: can control equipment within 30 V 5A DC or 220 V 5A AC
Static Current: 20mA
Working current: 50mA
Service life: more than 100,000 times
Working temperature: - 40 - 85℃
Size: 62*38*17mm/2.44*1.49*

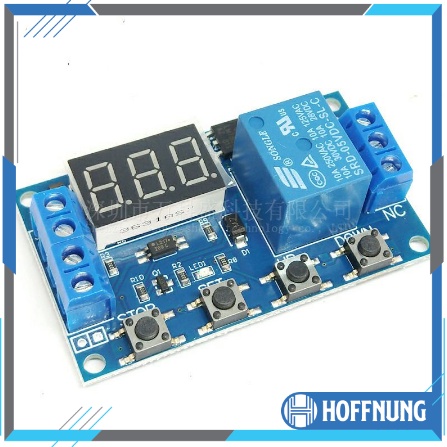

Gambar produk
