RELAY SONGLE 12V 10A SRD-12VDC-SL-C 5 PIN 5P

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > RELAY SONGLE 12V 10A SRD-12VDC-SL-C 5 PIN 5P
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail RELAY SONGLE 12V 10A SRD-12VDC-SL-C 5 PIN 5P

P/N : REL-0010

=============

Relay 12V/10A yang memiliki 5 pin ini banyak digunakan dalam aplikasi IoT, domestik, office machine, audio, equipment, automobile dll. Kami juga menjual relay yang sudah berbentuk modul memakai opto-coupler, silahkan cek lapak kami yang lain.

Silahkan di Order !!!

Specifications :
- Model : SRD-12VDC-SL-C(T73)
- Coil Voltage : DC 12V
- Pin : 5PIN
- Rated load : 10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
- Contact form : 1a, 1b, 1c
- Contact resistance : <=100m (ohm)
- Electrical life : 100,000
- Mechanical life : 10,000,000
- Coil power : 0.36W, 0.45W
- Coil pick-up voltage : <=75%
- Coil drop-out voltage : >=10%
- Ambient temperature : -25 degrees Celsius to +70 degrees Celsius
- Coil and contacts : 1500VAC/min
- Contact and contacts : 1000VAC/min
- Insulation resistance : >=100M ohm
- Mounting form : PCB

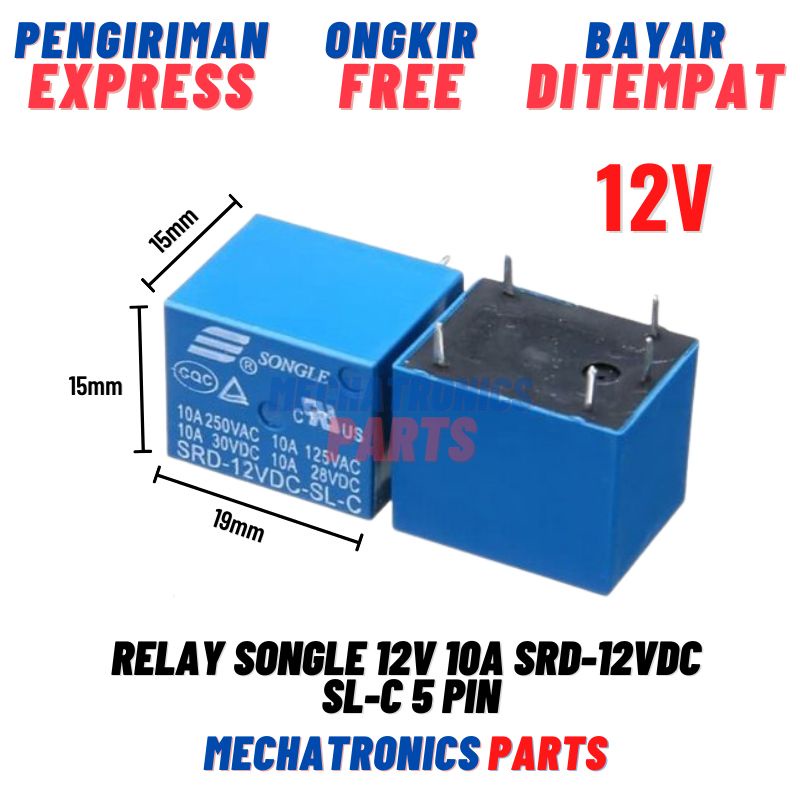

- Outline dimensions : 19mm x 15.5mm x 15mm

Paket : 1x RELAY SONGLE 12V 10A SRD-12VDC-SL-C 5 PIN 5P
