Relay module 8 channel 8 relay module low trigger 5V

Detail Relay module 8 channel 8 relay module low trigger 5V

Hi #RekanEasyWare ...
EasyWare Part#: EP000733

It is an 8 Channel Isolated 5V 10A Relay Module opto coupler, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc. It is also able to control various appliances and other types of equipment with a large current. Relay output maximum contact is AC250V 10A and DC30V 10A.

One can connect a microcontroller with standard interface directly to it. Red working status indicator lights are conducive to the safe use. The 8 Channel Isolated 5V 10A Relay Module optocoupler has a wide range of applications such as all MCU control, industrial sector, PLC control, smart home control.

Features :
- Power supply and relay instructions, lit, the disconnect is off.
- The input signal, signal, common Terminal and start conducting.
- Useful for appliance control.
- DC or AC signal, control, you can control the 220V AC load.
- One normally closed contact and one normally open contact.
- Triode drive, increasing relay coil.
- High impedance controller pin.
- Pull-down circuit for the avoidance of malfunction.
- Power supply indicator and Control indicator lamp.
- The module is compliant with international safety standards, control and load areas isolation trenches.

Spesifications :
- Operating Voltage (VDC) : 5
- Trigger Voltage (VDC) : 5
- Switching Voltage (VAC) : 250@10A
- Switching Voltage (VDC) : 30@10A
- Package :
- 5V 8 channel relay module (low trigger)

Package :
- 5V 8 channel relay module (low trigger)

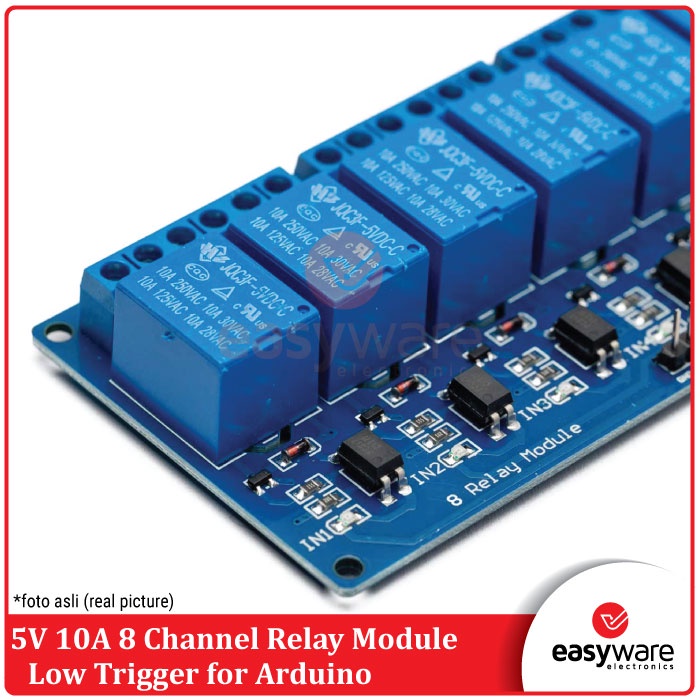

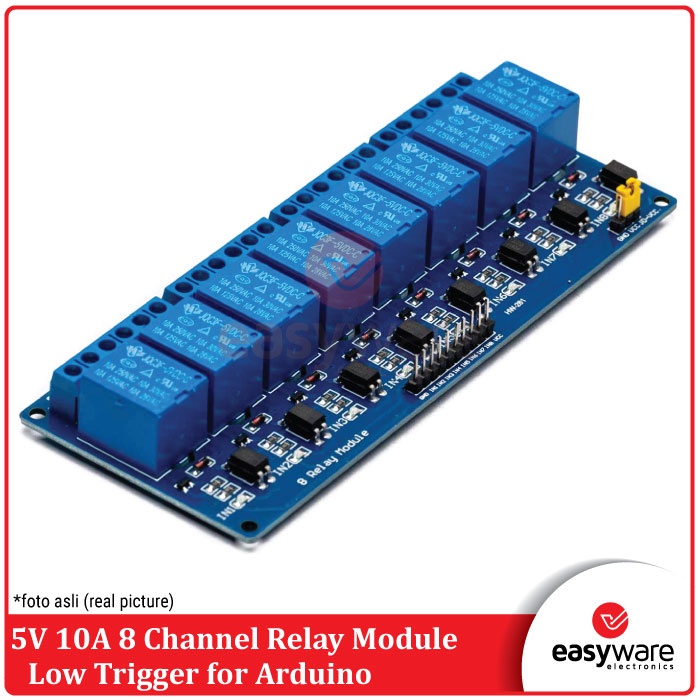

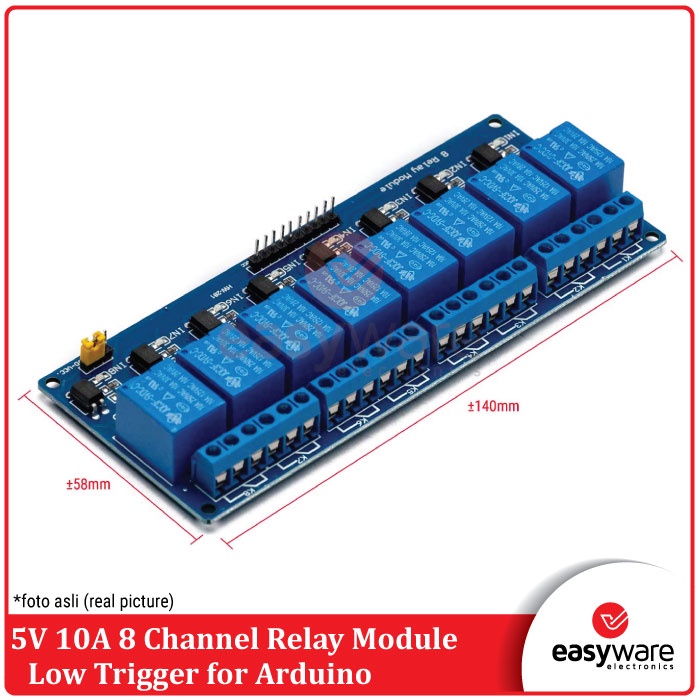

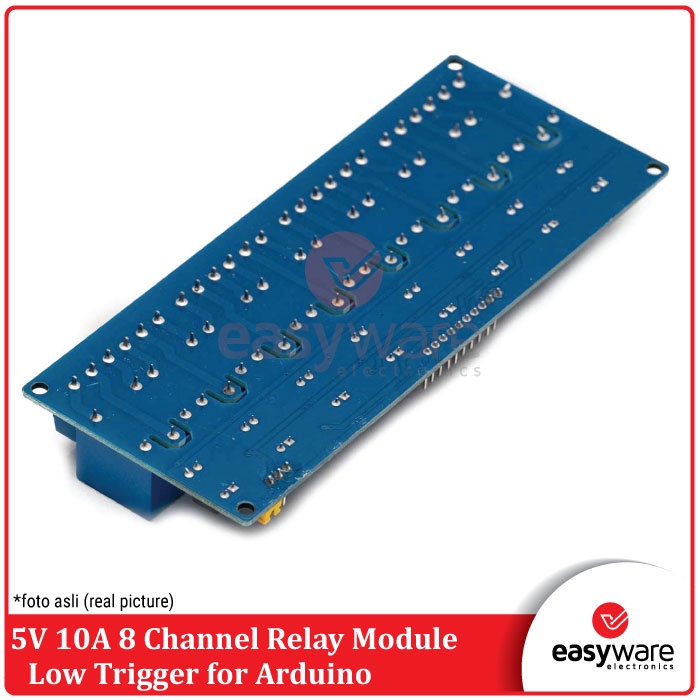

Gambar produk
