Relay module 5V 1 channel high and low trigger

Detail Relay module 5V 1 channel high and low trigger

***Bismillaah
Relay jenis high low level trigger. Silakan pilih variannya terlebih dahulu. Terima kasih ***

Features :
- Module adopts high-quality relays with normal interface and maximum load: AC 250V/10A, DC 30V/10A
- Using patch optocoupler isolation, strong driving ability, stable performance, trigger current 5mA.
- Working voltage of the module is 5V.
- Modules can be triggered by setting high or low levels through jumpers.
- Fault-tolerant design, even if the control line is broken, the relay will not move.
- Power indicator (green), relay status indicator (red).
- The interface design is humanized. All interfaces can be directly connected through the terminal, which is very convenient.

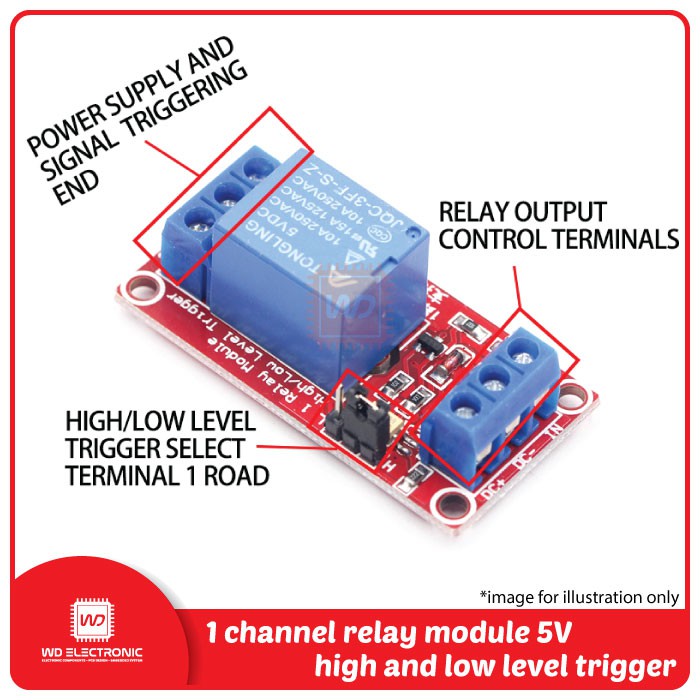

High and low level trigger selector :
- Short connection between jumper and LOW is triggered at low level.
- Short connection between jumper and HIGH is triggered by high level

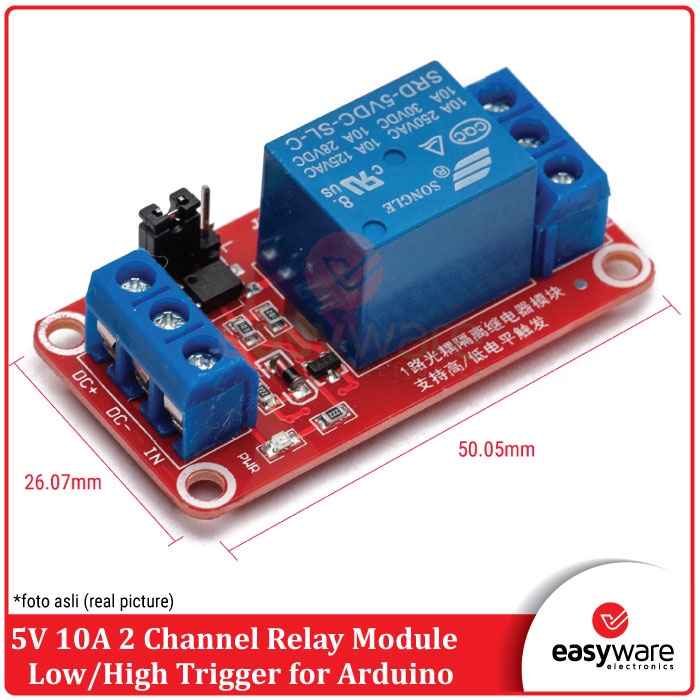

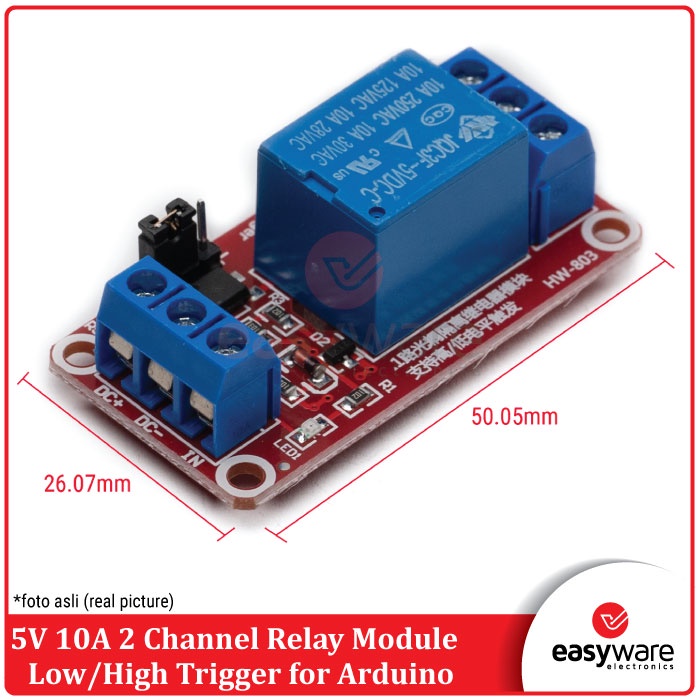

Module interface :
- DC+: Connect the positive pole of the power supply (voltage according to relay requirements, 5V.12V and 24V options).
- DC- : Connect power supply negative pole.
- IN : High or Low Level Control Relay Suction.
- NO : Relay often opens interface. Relay is suspended before suction and short-connected with COM after suction.
- COM : Relay Common Interface
- NC : Normally closed interface of relay, short connection with COM before relay suction, suspension after suction

Spesifications :
- Voltage : 5V DC

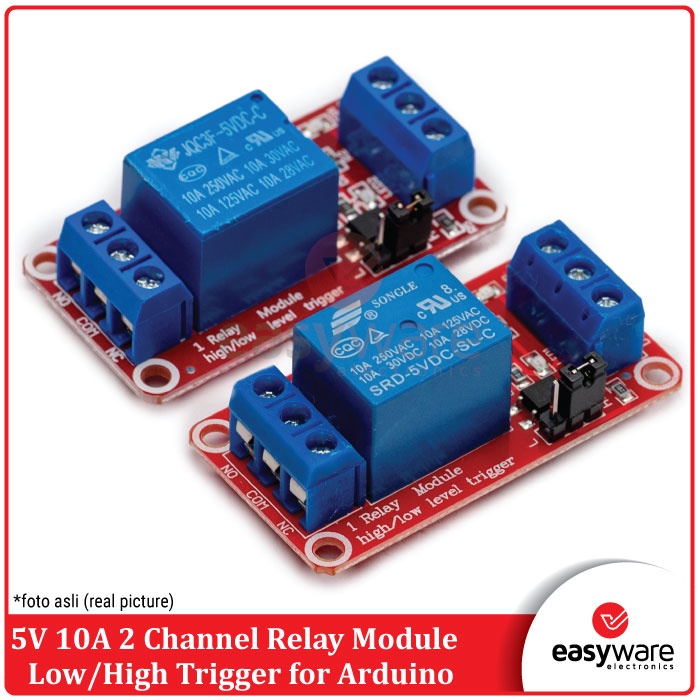

- Relay brand : Songle (option)

Package :
- 1x 5V 1 channel relay module (high low trigger, type 2)

Gambar produk
