RELAY DC 30V 6P 5A RELAY HF42F-012-2HS RELAY JZC-42F-005 12V 30V 125V DC 6 PIN

Elektronik > Elektronik Lainnya > RELAY DC 30V 6P 5A RELAY HF42F-012-2HS RELAY JZC-42F-005 12V 30V 125V DC 6 PIN
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail RELAY DC 30V 6P 5A RELAY HF42F-012-2HS RELAY JZC-42F-005 12V 30V 125V DC 6 PIN

#relay #relays #relayswitch #sparepart #komponen #komponenelektronik #komponenlistrik #poweramplifier #partpoweramplifier #hf42f #hongfa

**RELAY DC 30V 6P 5A RELAY HF42F-012-2HS ATAU SAMA DENGAN RELAY JZC-42F-005**

Relay adalah Saklar (Switch) yang dioperasikan secara listrik dan merupakan komponen Electromechanical (Elektromekanikal) yang terdiri dari 2 bagian utama yakni Elektromagnet (Coil) dan Mekanikal (seperangkat Kontak Saklar/Switch).

Fitur :
● Kemampuan pengalihan 5A
● TV-3 125VAC disetujui oleh standar UL
● 2 Bentuk Konfigurasi ramping

Technical Data :
-Tipe = HF42F-012-2HS
-Merk = Hongfa
-Contact Arrangement = 2A
-Contact Resistance = 100mΩ Max.(at 1A 6VDC)
-Contact Material = AgSnO₂, AgCdO
-Contact Rating (Res.Load) = 5A 250VAC/30VDC
-Max. Switching Voltage = 250VAC/30VDC
-Max. Switching Current = 5A
-Max. Switching Power = 1250VA/ 150W
-Berat = 13 gram

Produk Ready Stok Segera Checkout sekarang juga sebelum kehabisan !!! Harap Chat Kami jika ada Pertanyaan seputar Produk.

Non Garansi, 100% Baru, Tested Operational.

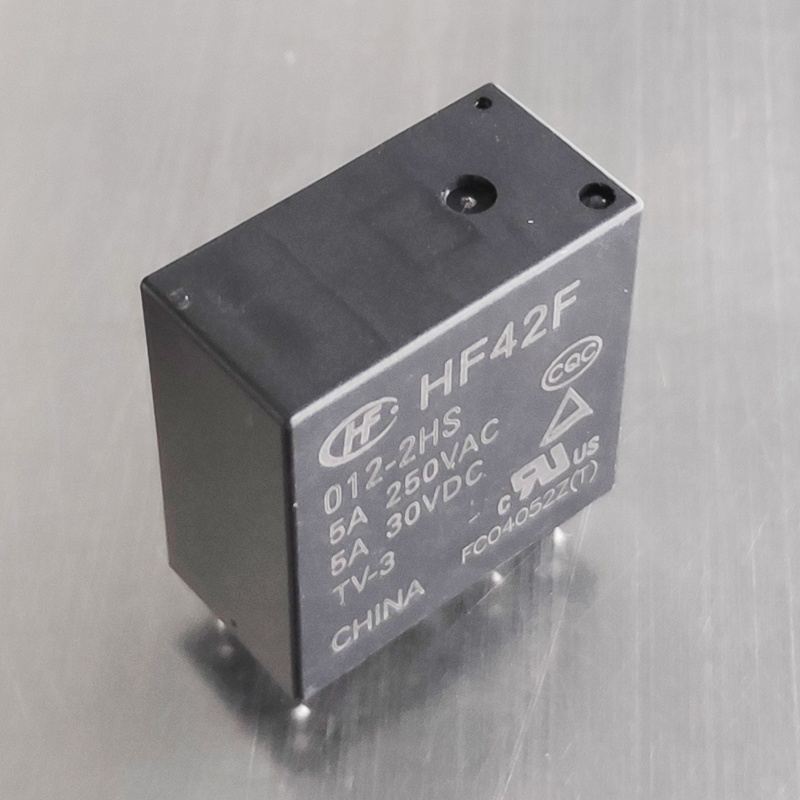

Gambar produk
