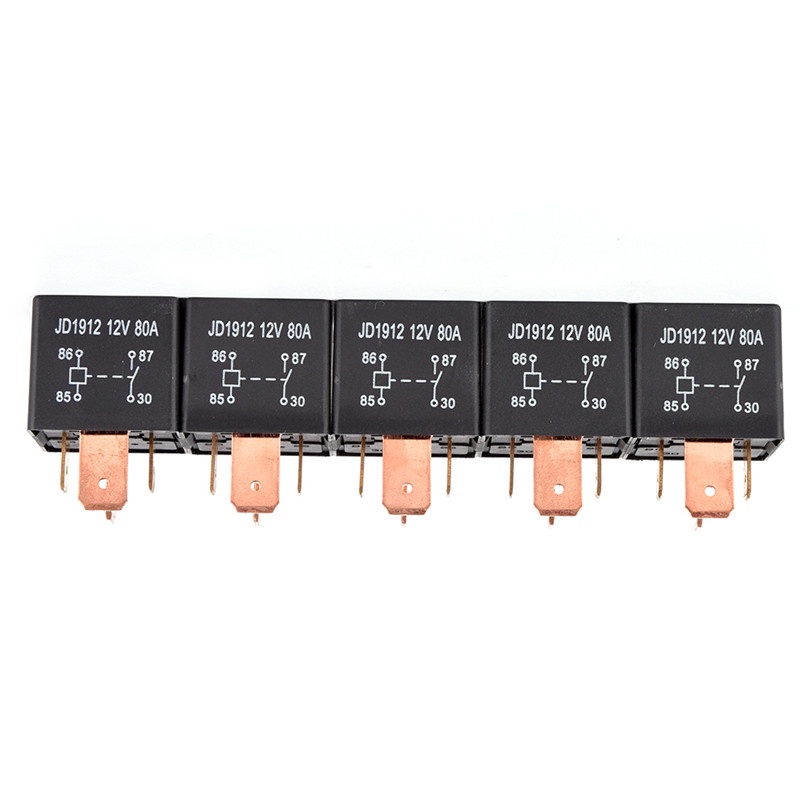

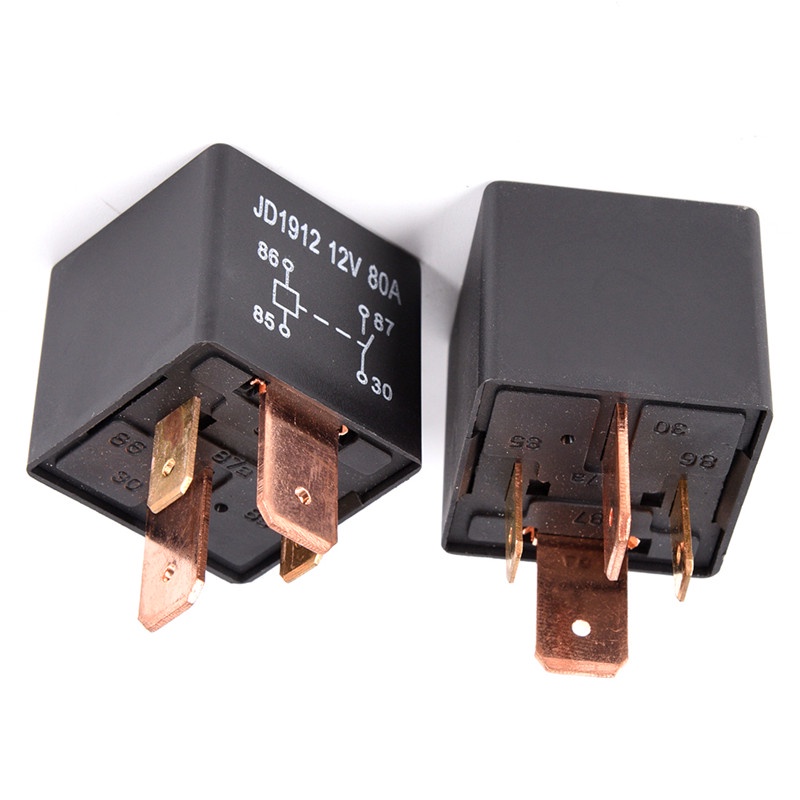

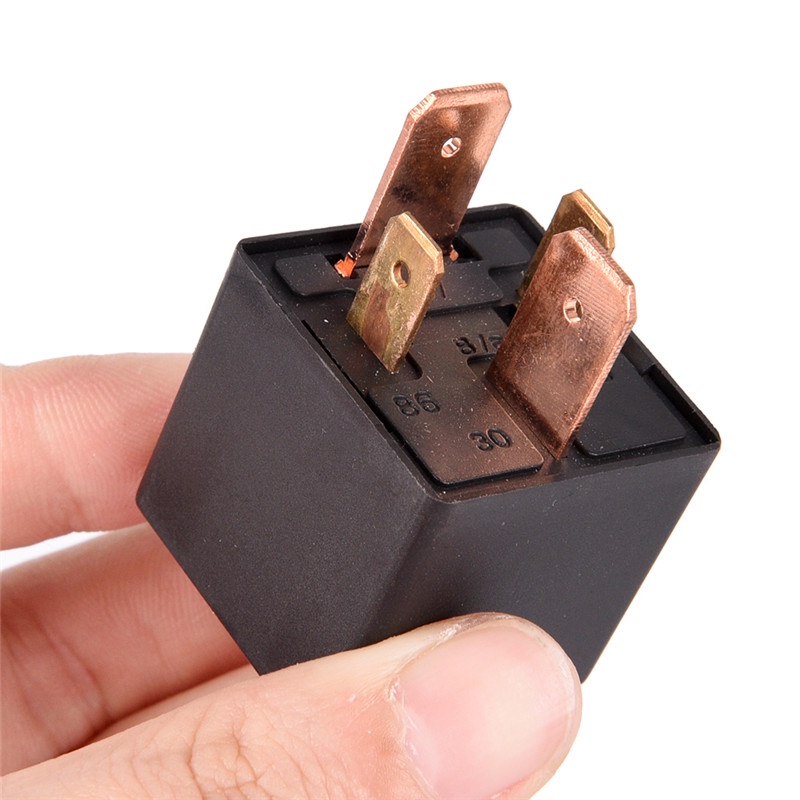

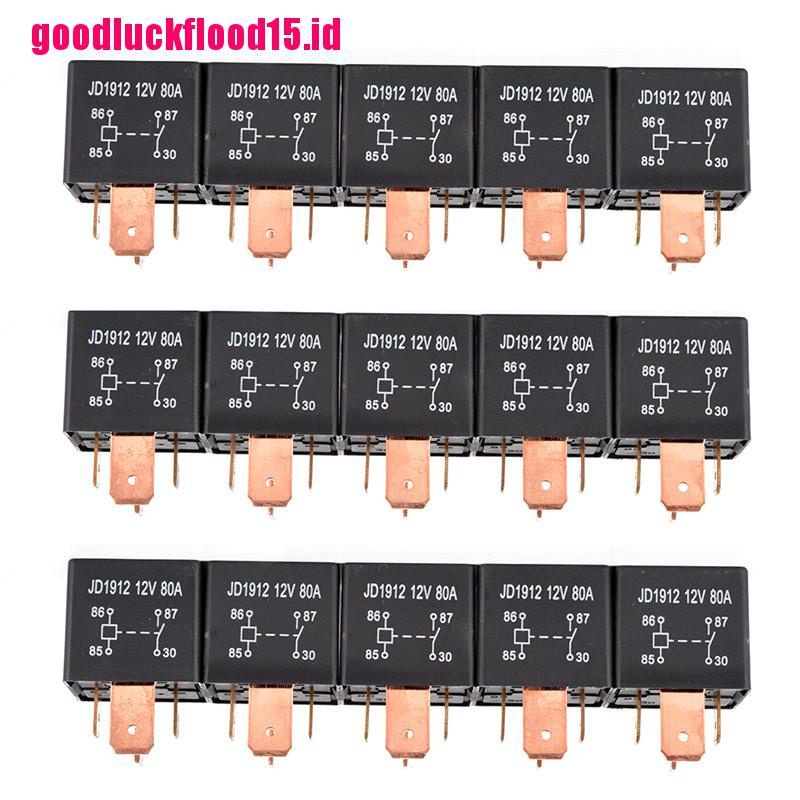

Relay 4 Pin DC 24V 12V 80A JD1912 Tahan Air Untuk Otomotif Mobil
Deskripsi singkat
Perlengkapan Rumah > Perkakas > Perkakas Lainnya > Relay 4 Pin DC 24V 12V 80A JD1912 Tahan Air Untuk Otomotif Mobil
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Relay 4 Pin DC 24V 12V 80A JD1912 Tahan Air Untuk Otomotif Mobil
Features:100% brand new and high quality
With Fuse,more safe,more convenient
Specifications:
High-capacity, 80A switching capability,
1form A.1form B .1formC.2 form A contact arrangement
Application: Auto control device
Size(L*W*H): 28mmx28mmx25mm/1.1inx1.1inx1in
Ambient temperature: -40°C~+125°C
Contact Form: 1a,1b,1c
Contact Capacity : 1a:80A 14VDC
1b:60A 14VDC
1c:80A/60A 14VDC
Coil Voltage: 12VDC/24VDC/48VDC
Coil Power: 1.8W
Contact Resistance: ≤50mΩ
Initial insulation resistance: ≥1,00MΩ
Life: Electrical Life 100,000ops
Mechanical Life 1,000,000ops
Dielectric strength Between off-contact: 500VAC
Between Coil contact : 500VAC
Installing form: Tri-clamp connection, socket mount
Environment Temperature: -40°C~+125°C
Package Including:
1 x Relay
Note:
1.Please allow 0.1-0.3cm differences due to manual measurement, thanks.
2.Please understand because of the light irradiation or computer display difference, so I can't guarantee photos and real color is 100% the same.
Gambar produk
