Relay 12V 10A 5 kaki original SONGLE

Elektronik > Elektronik Lainnya > Relay 12V 10A 5 kaki original SONGLE
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:YoubeaggerLihat semua produk Elektronik oleh Youbeagger
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Relay 12V 10A 5 kaki original SONGLE

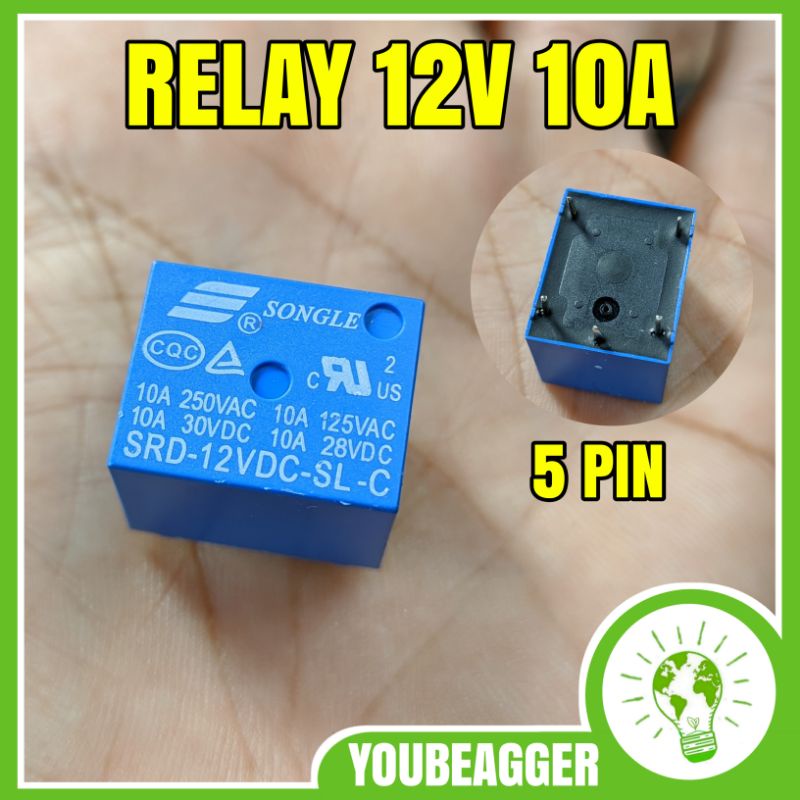

Relay 12V 10A 5 kaki SONGLE
- Model : SRD-12VDC-SL-C(T73)
- Coil Voltage : DC 12V
- Pin : 5PIN
- Rated load : 10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
- Contact form : 1a, 1b, 1c
- Contact resistance : <=100m (ohm)
- Electrical life : 100,000 - Mechanical life : 10,000,000
- Coil power : 0.36W, 0.45W
- Coil pick-up voltage : <=75%
- Coil drop-out voltage : >=10%
- Ambient temperature : -25 degrees Celsius to +70 degrees Celsius
- Coil and contacts : 1500VAC/min
- Contact and contacts : 1000VAC/min
- Insulation resistance : >=100M ohm
- Mounting form : PCB
- Outline dimensions : 19mm x 15.5mm x 15mm
