RELAY 2 CHANNEL 12V PLC 12VDC

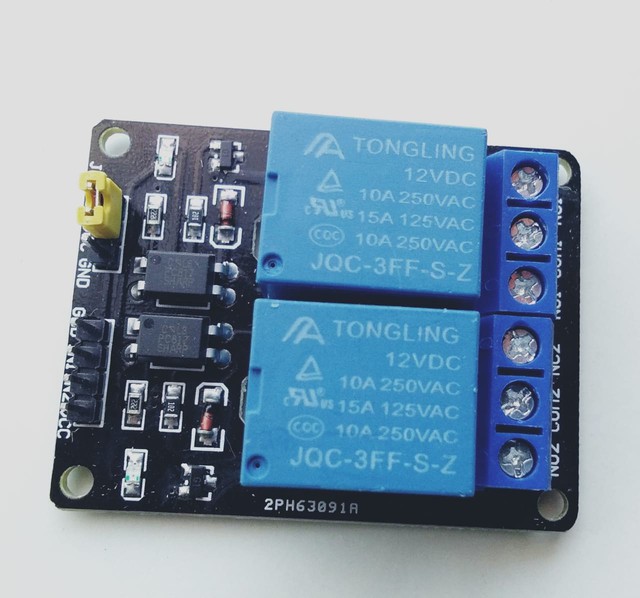

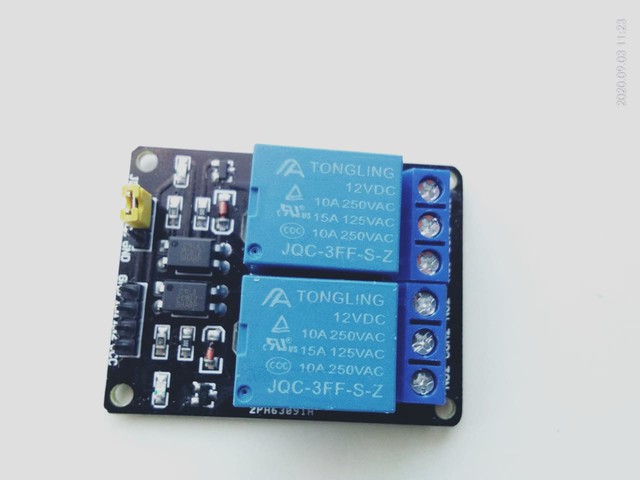

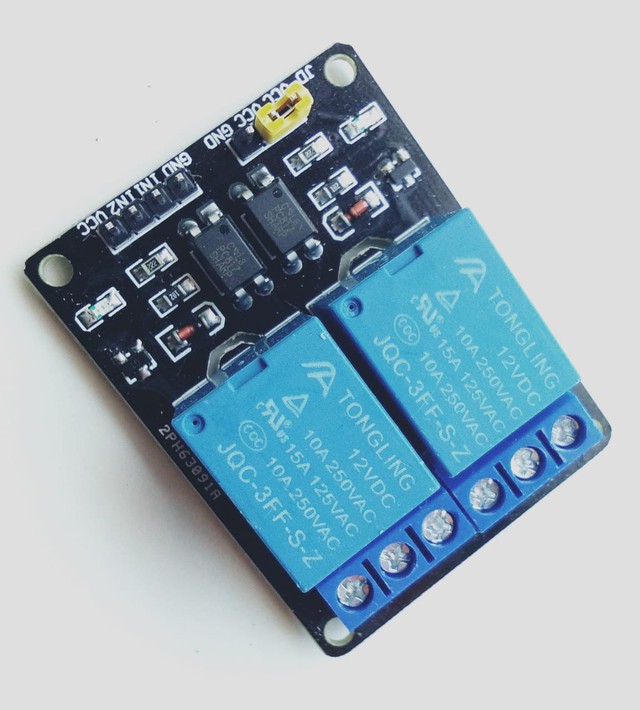

12V 2 Channel Relay Module with Optocoupler Relay Output 2 way Relay Module for Arduino

Module parameters:
1. Size: 50.5mm (length) * 38.5mm (width) * 18.5 (height)
2. Weight: 31g
3.PCB color: black
4. There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.
5. Use high quality relays, single pole and double throw. a common end, a normally open end, and a normally closed end
6. Optocoupler isolation, good anti-interference
7. Low level pull-in, high level release. The status indicator is on when the inverter is closed, and the status indicator is off when released.
8. VCC is the system power supply, and JD_VCC is the relay power supply. Plug in the jumper cap

Electrical parameters:
Supply voltage: 12V
Current: greater than 100mA
Load: 250V 10A AC or 30V 10A DC

Wiring instructions:
VCC: system power supply positive
GND: system power supply negative
IN1--IN2: Relay Control Port
