Detail Regulator Konverter Step Down Mini Dc-Dc 3a 5v-23v Ke 3.3v 6v 9v 12v

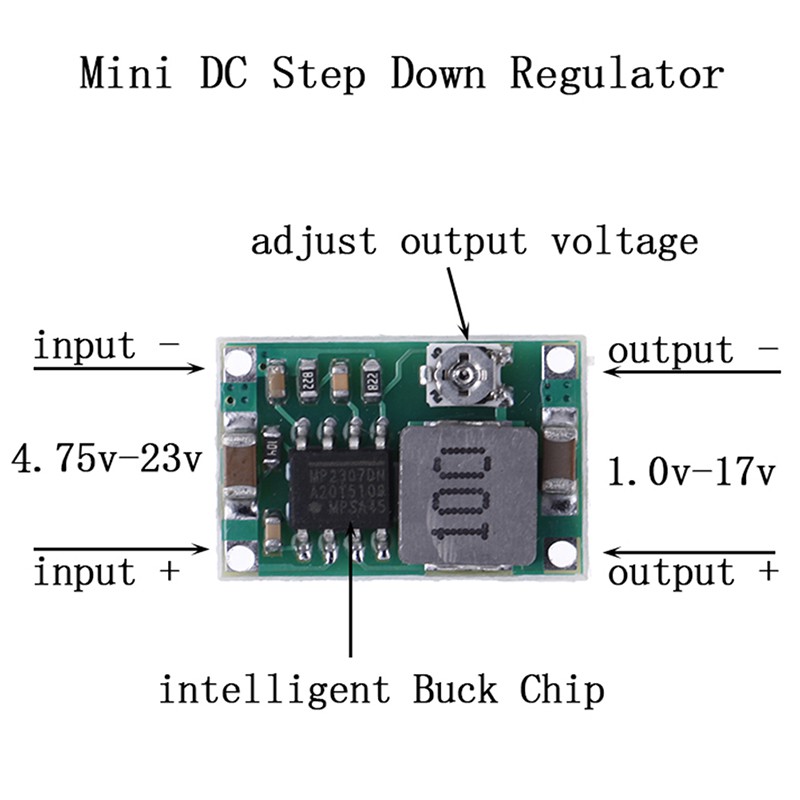

Description：Module nature: non-isolated buck
Rectification mode: synchronous rectification
Input voltage: 4.75V-23V
Output voltage: 1.0V-17V
Output current: peak 3A, long time 1.8A
Conversion efficiency: 96% (highest)
Switching frequency: 340KHz
Output ripple: 30mV (when no load)
Load adjustment rate: +-0.5%
Voltage regulation rate: +-2.5%
Working temperature: -40°C-+85°C
Size:Show in the picture
Package include：
1Pcs step down converter volt regulator
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
