Regulator Konverter Step Down Mini DC-DC 5v-23v ke 3.3V 6V 9V

Detail Regulator Konverter Step Down Mini DC-DC 5v-23v ke 3.3V 6V 9V

【TATY】3A Mini DC-DC step down converter volt regulator 5V-23V to 3.3V 6V 9V 12VDescription：
Module nature: non-isolated buck
Rectification mode: synchronous rectification
Input voltage: 4.75V-23V
Output voltage: 1.0V-17V
Output current: peak 3A, long time 1.8A
Conversion efficiency: 96% (highest)
Switching frequency: 340KHz
Output ripple: 30mV (when no load)
Load adjustment rate: +-0.5%
Voltage regulation rate: +-2.5%
Working temperature: -40°C-+85°C
Size:Show in the picture

Package include：

1Pcs step down converter volt regulator

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

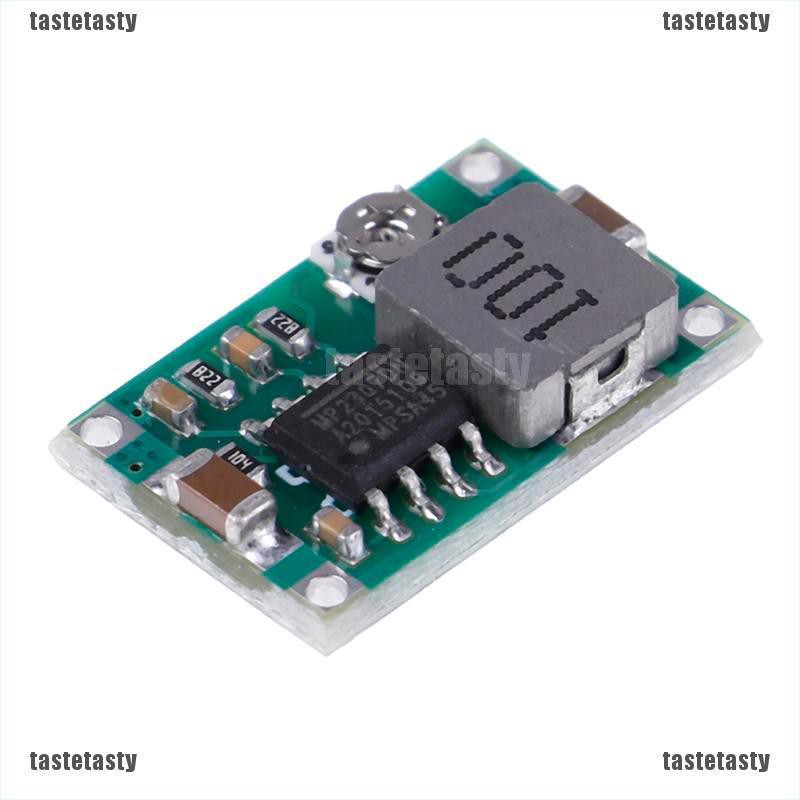

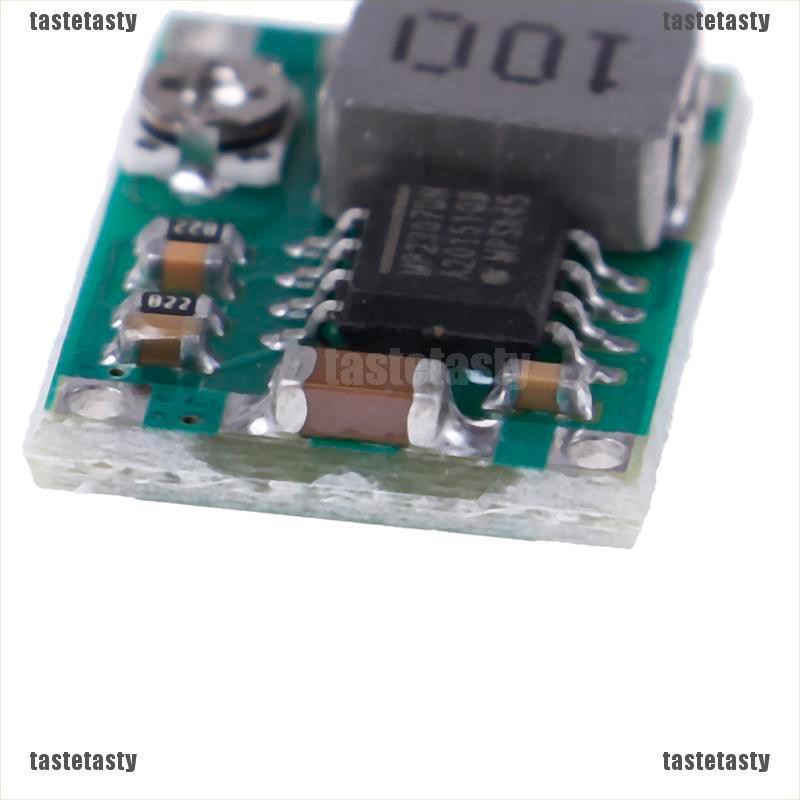

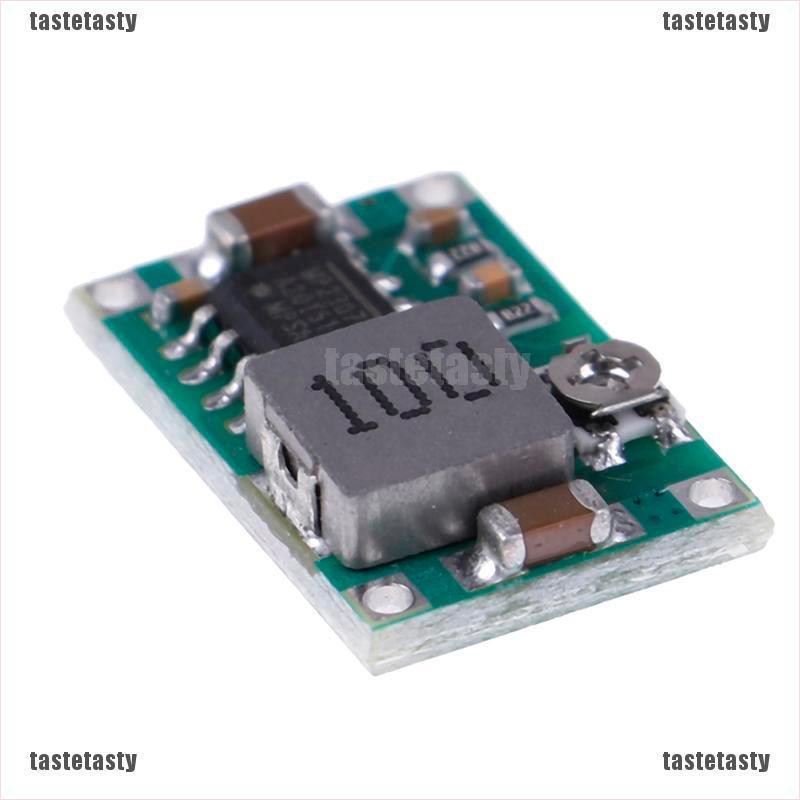

Gambar produk
