Regulated DC power supplay DEKKO PS-3005 3L+ -30Volt 5A

Detail Regulated DC power supplay DEKKO PS-3005 3L+ -30Volt 5A

Video perkenalan produk Regulated DC power supplay DEKKO PS-3005 3L+ -30Volt 5A. Sumber: Shopee.

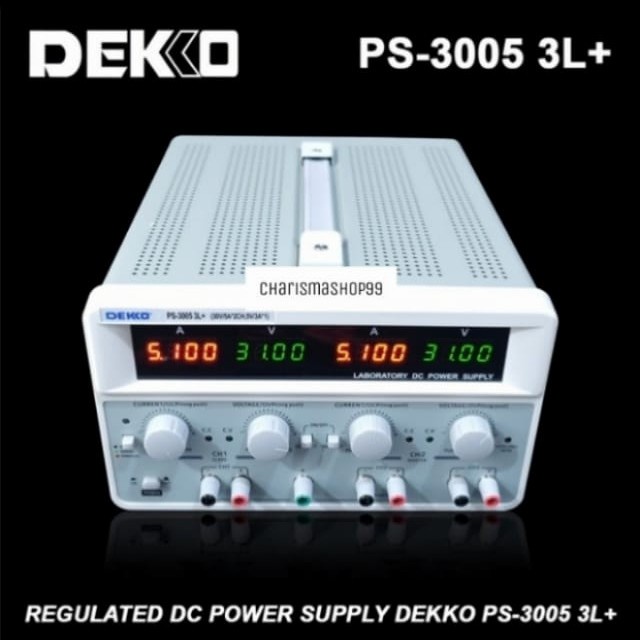

Regulated DC Power Supply Dekko PS-3005 3L+ - 30 Volt 5 Ampere

Triple Channel DC Power Supply is a new generartion of high-quality ar DC Power Supply, both channel can independently adjust the voltage and current, one fixed 5V/3A Output, stable voltage and current automatic conversion, high stability, high reliability and high precision.

Two channel can display output voltage and current simultaneously, which a very high cost-effective advantage.

This series of power supplies have the following characteristics :
- Infinite servo, intelligent fan system
- With voltage and current preset function
- Independently control output ON/OFF
- Over temperature protection OTP function
- 10 mV, 1mA high resolution
- Voltage and current range limit function
- Both channel can independently adjust voltage and current
- One-key series and parallel function
- In parallel mode, positive and negative voltages can be formed

Technical Specifications CH1, CH2 :
- Rated output voltage : 0~30V
- Rated output current : 0~5A
- Rated load regulation voltage : <0.01%+5mV
- Rated load regulation current : <0.1%+5mA
- regulation voltage : <0.01%+5mV
- regulation current : <0.1%+5mA
- Setting resolution voltage : 10mV
- Setting resolution current : 1mA
- Readback resolution voltage : 10mV
- Readback resolution current : 1mA
- Setting accuracy voltage : <0.03%+10mV
- Setting accuracy current : <0.1%+5mA
- Readback accuracy voltage : <0.03%+10mV
- Readback accuracy current : <0.1%+5mA
- Parallel mode power effect : <0.01%+5mV
- Parallel mode load regulation : <0.01%+5mV
- Series mode power effect : <0.01%+5mV
- Series mode load regulation : <0.01%+5mV

Technical Specifications CH3
- Rated output voltage : 5V
- Rated output current : 3A
- Rated load regulation voltage : <15mV

Ripple and noise voltage : <2mV(rms)
Ripple and noise current : <5mA(rms)
Interface : Optional USB, RS232
Using Envireonment : 0~40 Celciuc <80%RH

Size dimension : 250x150x330 mm
Weight : 9 kg

Gambar produk
