Detail Refrigerated Air Dryer FK-22 ACS - Araki

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barangnya dan kami akan mengirimkan barang pesanan anda secepat mungkin.

Mohon Tanyakan Stock terlebih dahulu sebelum Melakukan Order !!
Untuk menghindari Penolakan Order, Mohon Tanyakan Stock terlebih dahulu sebelum Melakukan Order !!

Spesifikasi Produk

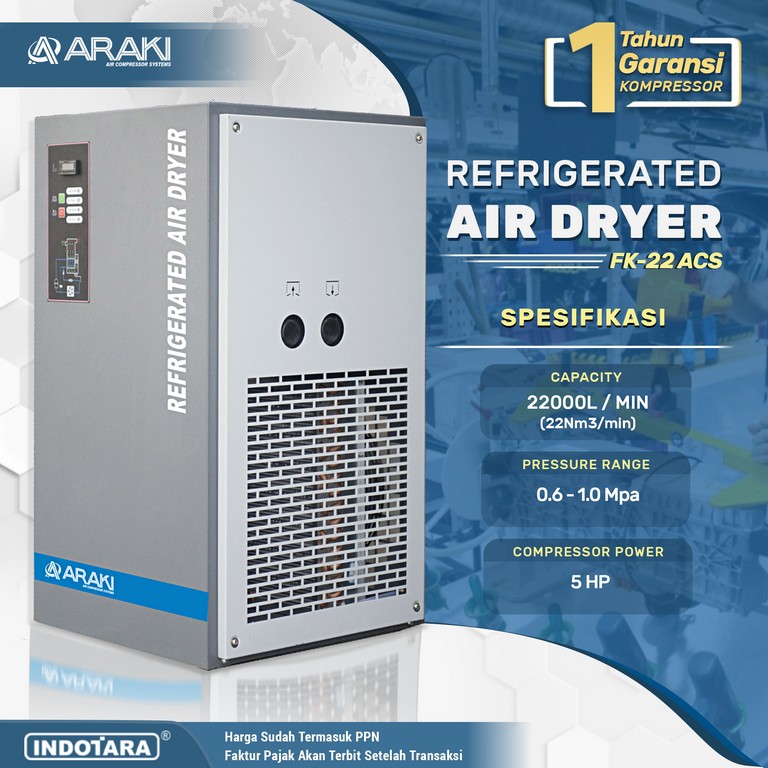

ARAKI REFRIGERATED AIR DRYER FK-22ACS, TAIWAN
Model : FK-22ACS
Capacity : 22.000L/min (22Nm3/min)
Pressure Range : 0.6 - 1.0 Mpa
Power Supply : 3 Phase 380V 50Hz
Compressor Power : 5 HP
Fan Power : 2x230 Watt
Air Interface : DN65
Dewpoint : 2°C - 10°C
Ambient Temp Range : 5°C - 50°C
Air Inlet Temperature Range : 20°C - 60°C
Nett Weight (Kgs) : 410
Dimension (L x W x H) mm : 1670x800x1623
Warranty : 1 Years for Compressor

Features :
• Excellent Properties Refrigerated Air Dryers of ARAKI Series
• Plate fin type heat exchanger with three-in-one design : Heat exchanger, evaporator & Gas-liquid Separator be combine together
• The temperature of the dew point is steady
• Energy saving of 20% for compressor power
• Bigger precoler & backheating design to reduce the 15% load for the evaporator to reduce the cost
