Detail ✫〖ready to ship/COD〗✫DSO138 Set Oscilloscope Digital DIY dengan Probe unsoldered STM32 200KHz
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickWhy choose our store?
» 〖 FREE SHIPPING 〗 RM0.00 for order > IDR232,000 (mix products) from our store.
» 〖 READY STOCK 〗 for all of our products.
» 〖 SAME DAY POST 〗 for all orders made before 10pm.
» 〖 FAST DELIVERY 〗 post from Overseas, normally shipping out 1-2 days.
» 〖 WARRANTY PROGRAM 〗 if you are not satisfy with our product or whatsoever, please do contact us to learn more without hesitate
» Working hour : Mon - Sta @ 09:00 -20:00
»〖 Follow #OlahragaOutdoorElektronik# 〗 You can get IDR2000 discount
Features:
● Training for electronic production, complete detailed descriptive information, including schematics, production guidance, instructions, troubleshooting methods , etc., making a high success rate.
● Component species diversity for students to identify elements, inline elements welding, soldering SMD components training.
● Students can get in at the same time making a practical tool for audio, video synchronization, low-frequency switching power supply, infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured , increased interest in learning, improve learning outcomes.

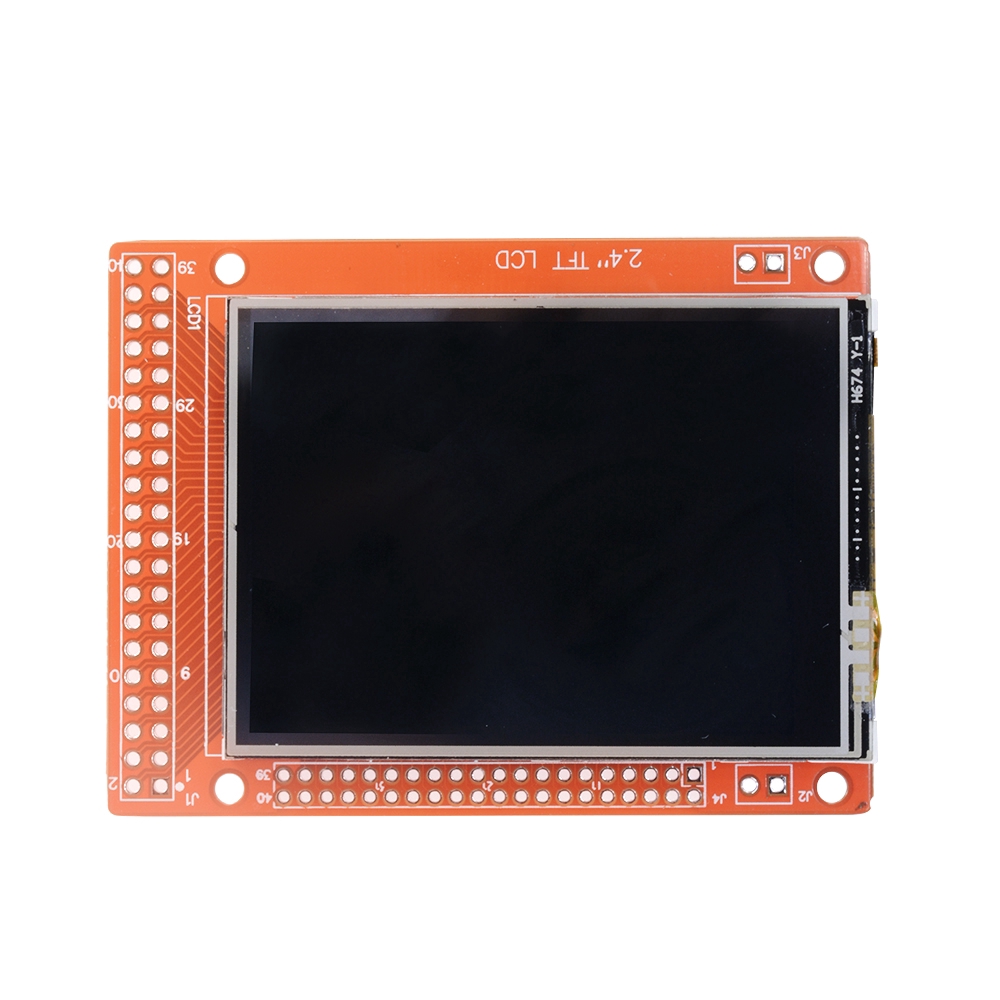

● Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4 -inch color TFT display can be used as test ARM development board .
● Available source, the ability of a friend can be secondary development kit based on, for example, it can be changed to Millivoltmeter, data loggers and so on .
● Circuit is simple, reliable, inexpensive
Performance:
● Maximum real-time sampling rate: 1Msps
● Accuracy: 12Bit
● Sampling buffer depth: 1024 bytes
● Analog bandwidth: 0 - 200KHz
● Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
● Adjustable vertical displacement, and with instructions
● Input impedance: 1MΩ
● Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
● Coupling modes include DC / AC / GND
● The horizontal time base range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
● With automatic, regular and one-shot mode, easy to capture the moment waveform
● Available rising or falling edge trigger
● Adjustable trigger level position , and with instructions
● Observable trigger waveform before ( negative delay )
● Can freeze at any time waveform display (HOLD function )
● Comes 1Hz /3.3V square wave test signal source
Package Included:

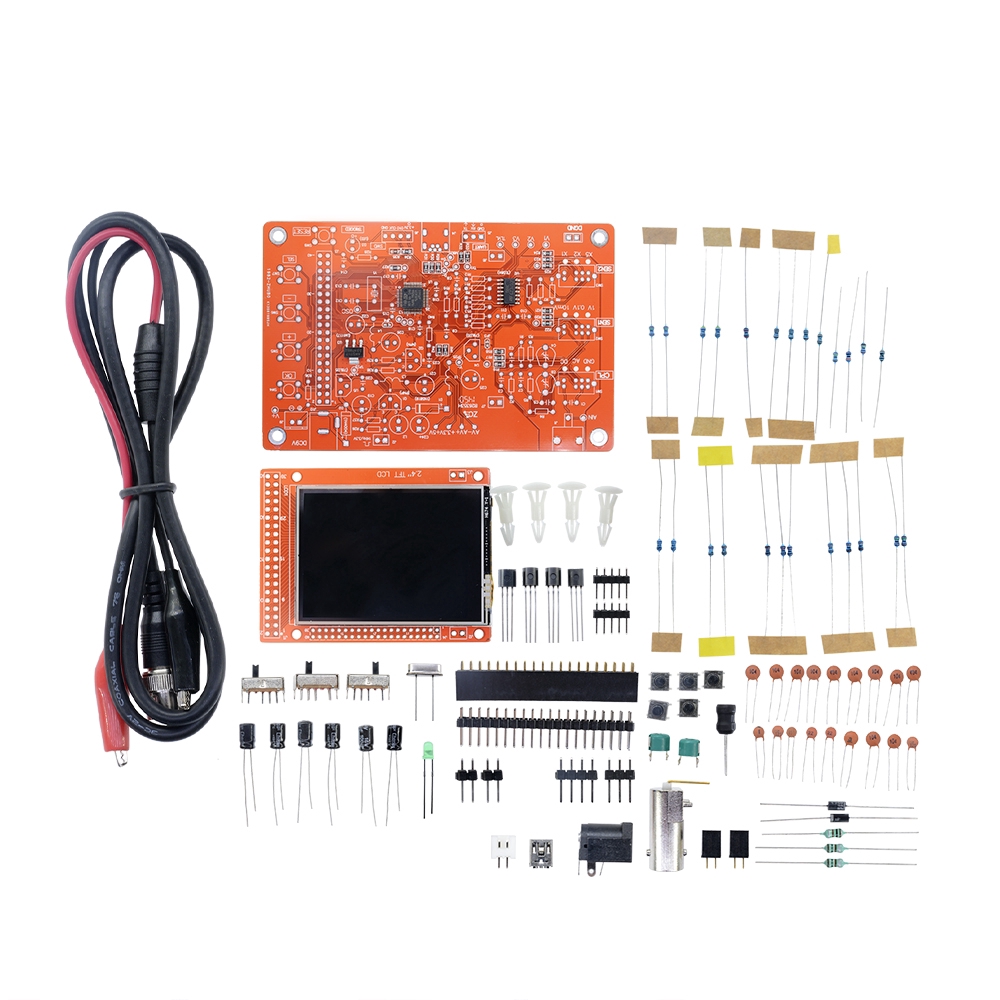

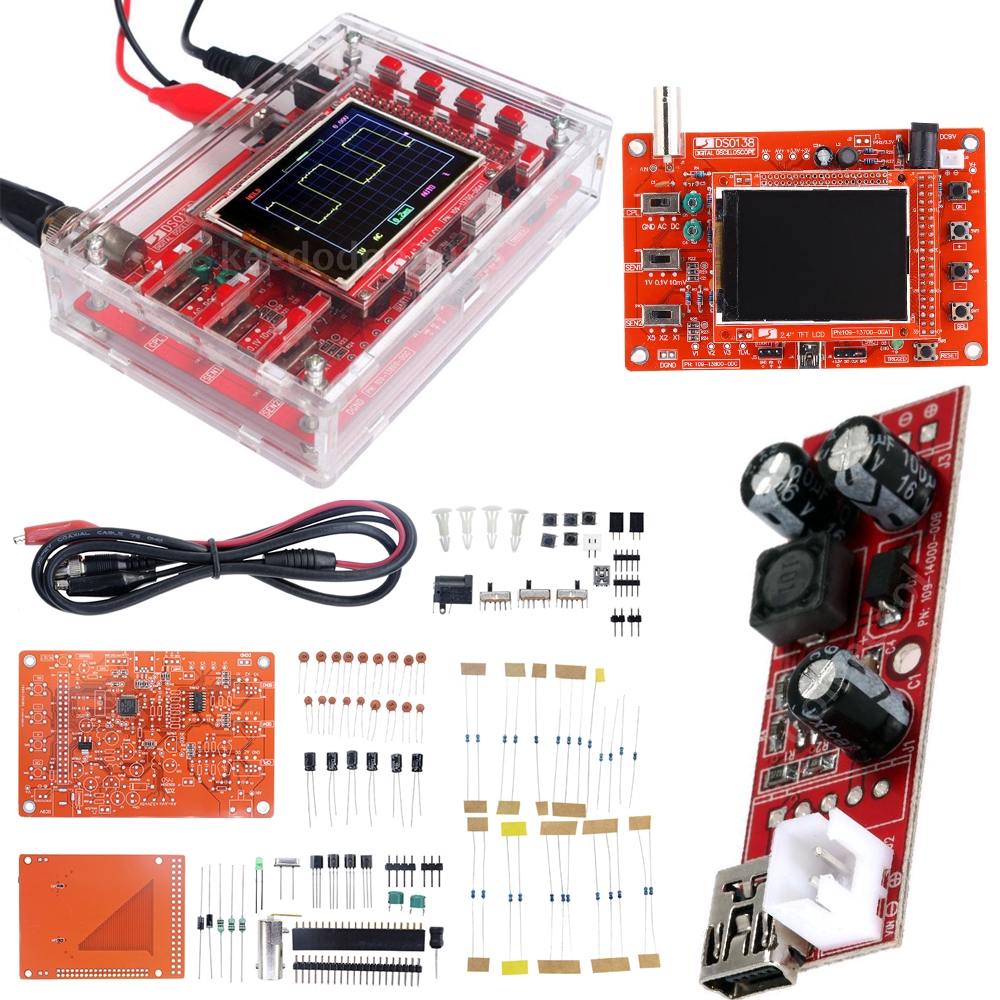

1 x DS0138 Digital Oscilloscope DIY Kit + Probe Unsoldered Flux Workshop STM32 200KHz (this is DIY item show as first photo)
