Detail ✫〖ready to ship/COD〗✫ Board Power Amplifier Mini HXJ8002 Pengganti PAM8403

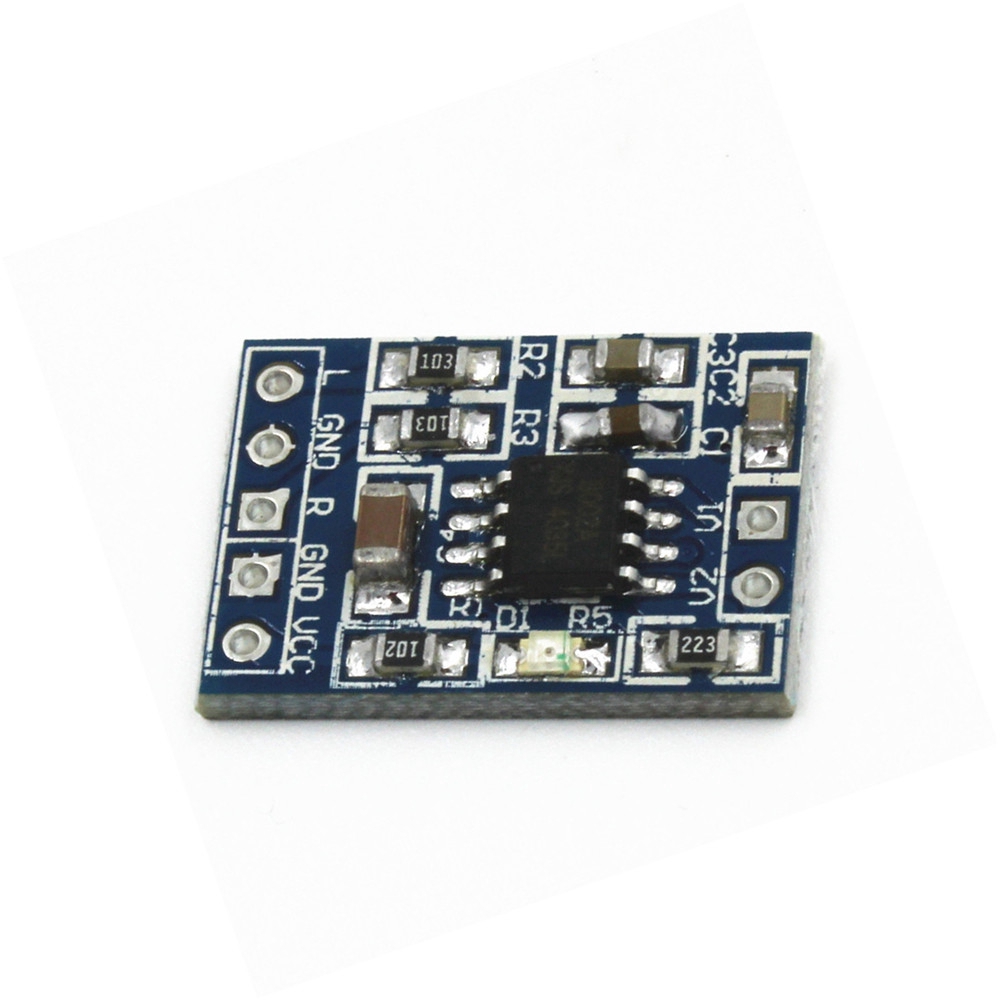

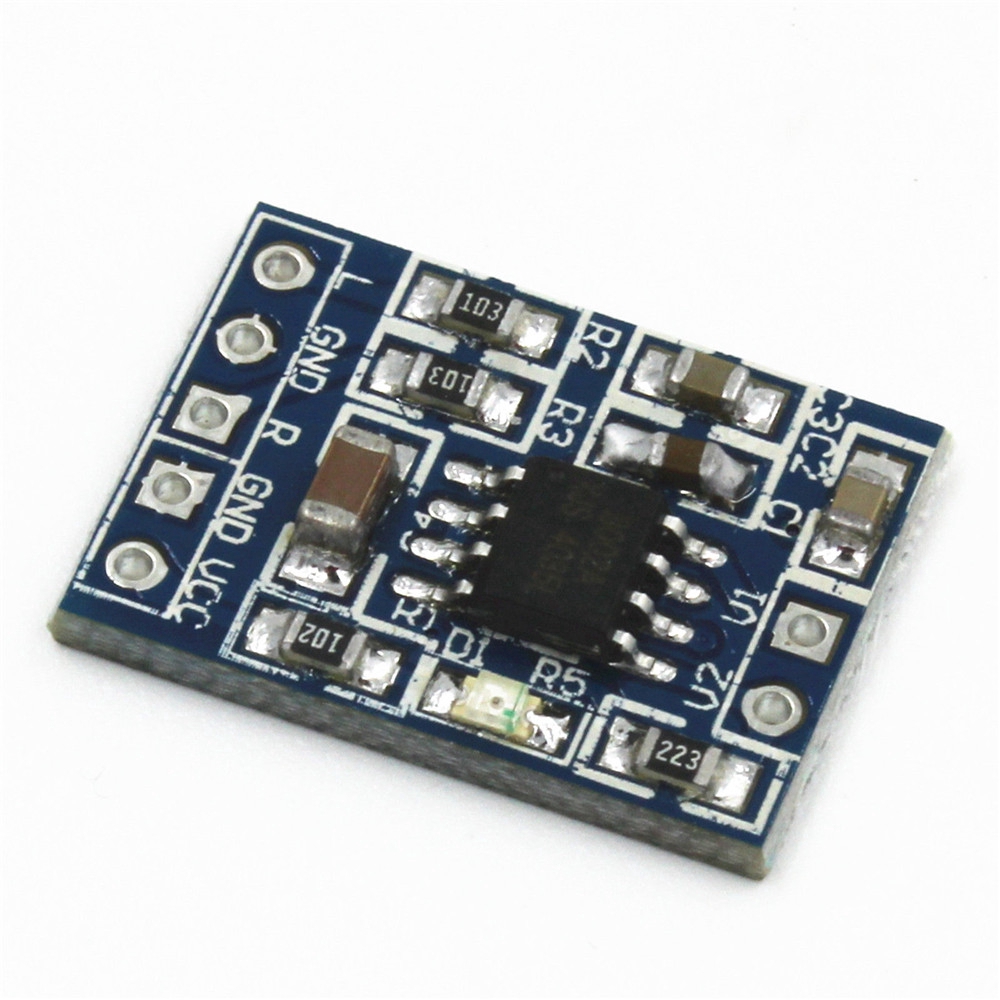

Descriptions:* onboard HXJ8002 single channel 3W, BTL bridge connection audio power amplifier chip
* working voltage :2.0-5 .5 V
* Standby current: 0.6uA (typical value)
* the input signal is a frequency is 1kHz, 8ω loads; average output power is 1W condition,
the maximum distortion is 0.5%
* the THD + D <10%, while the frequency of the input is 1KHZ under different load conditions
the output power (typical): 3W (load 3ω); 2.5W (load 4ω); 1.5W (load 8ω)
* board size: 19.8 (mm) x14.2 (mm)
Package Included:
1 x HXJ8002 Power Amplifier Board Mini Audio Voice Amplifier Module Replace PAM84
