✫〖ready to ship/COD〗✫ Board Controller Motor Driver Brushless 5V-12V DC untuk 3 / 4 Motor Drive

Detail ✫〖ready to ship/COD〗✫ Board Controller Motor Driver Brushless 5V-12V DC untuk 3 / 4 Motor Drive

【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please click and give me five-star✧✧✧✧✧thanks. My product is very good quality, my price is also very Cost-effective, my friends, just enjoying your shopping here, come on baby!】


Description:

100% brand new and high quality
Material: Plastic and Electrical components
Color: Green and Black

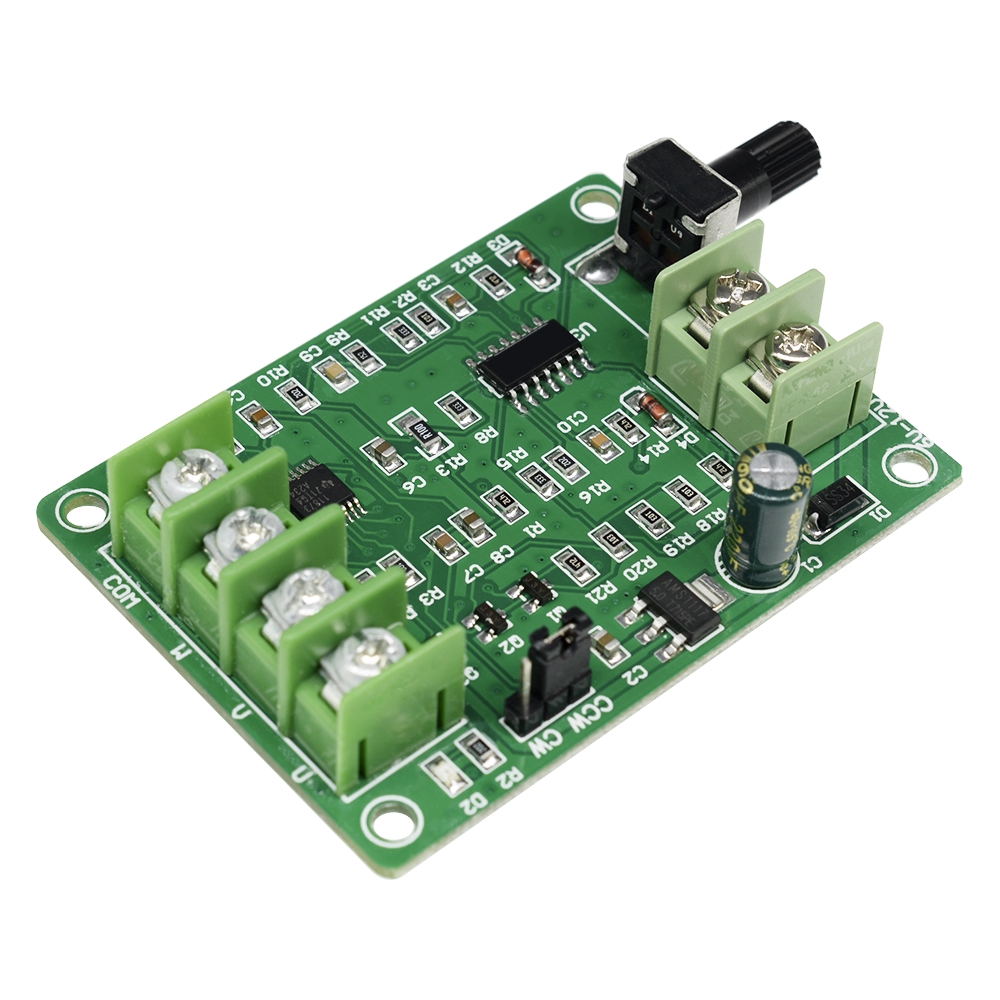

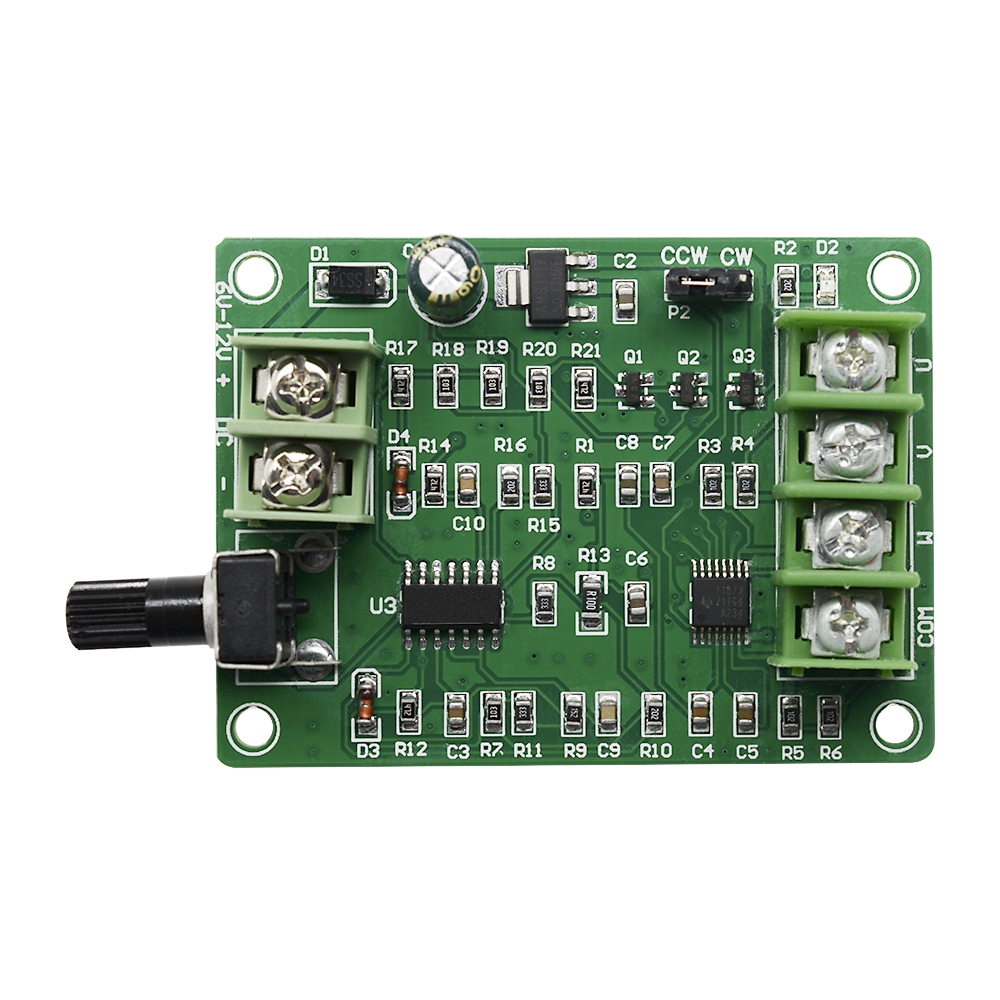

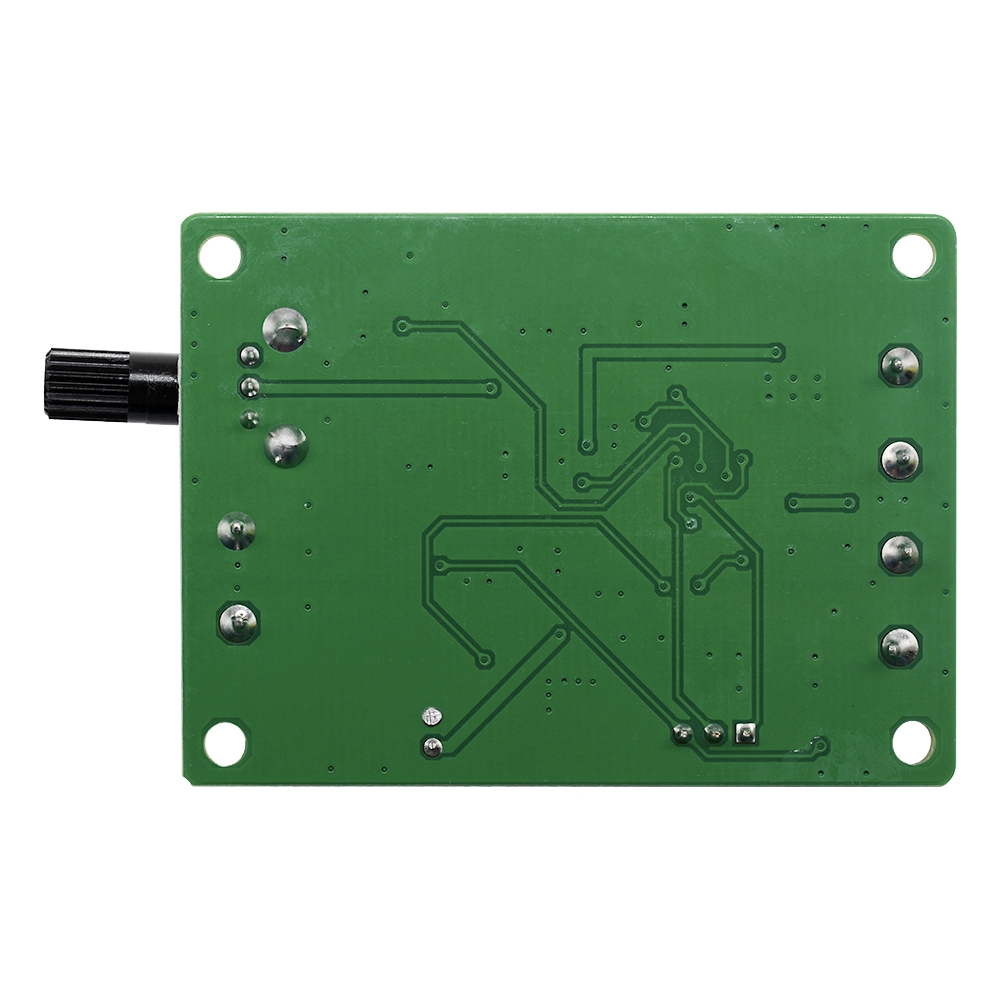

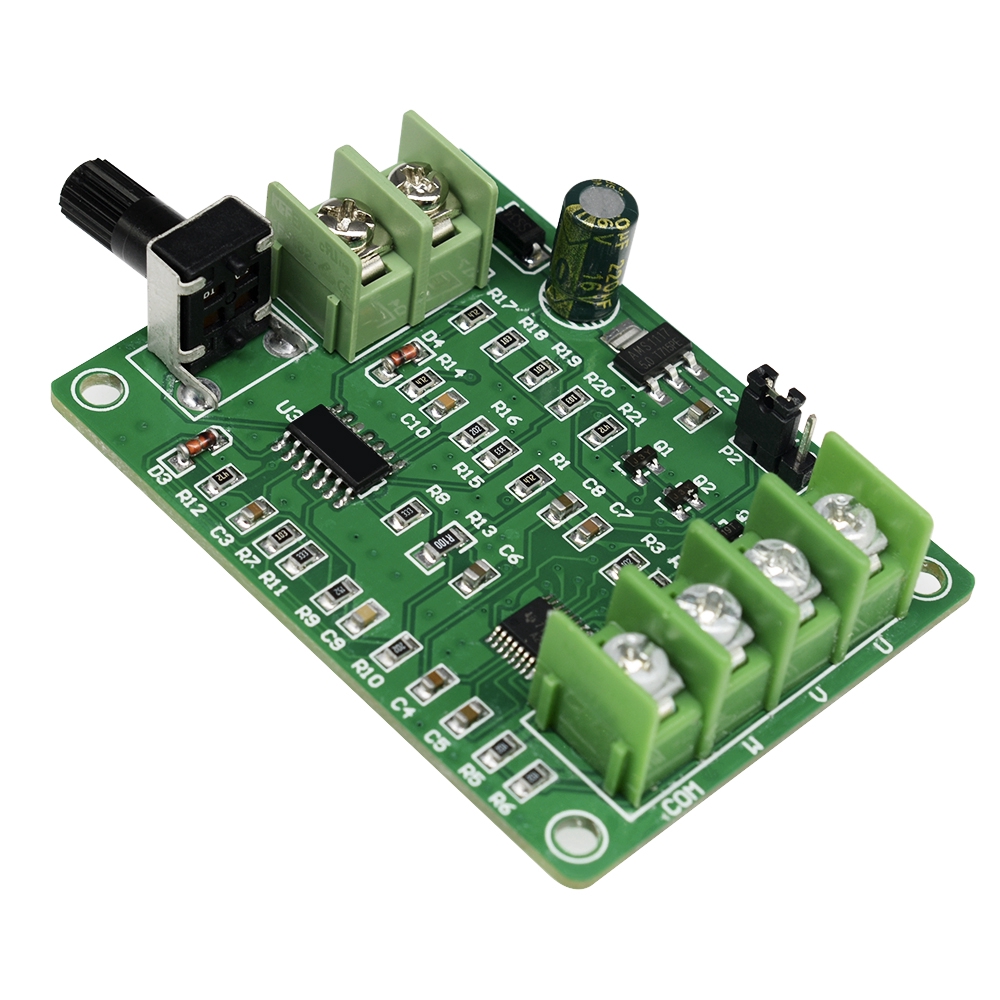

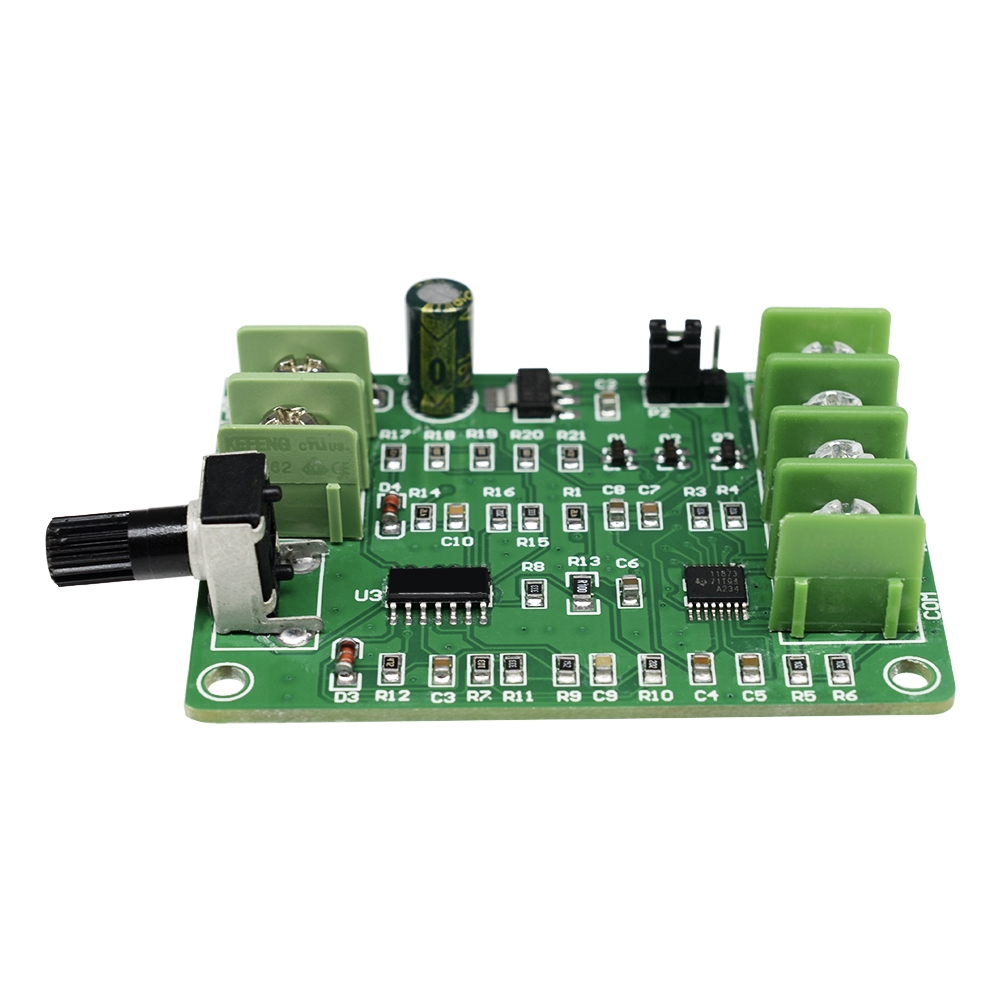

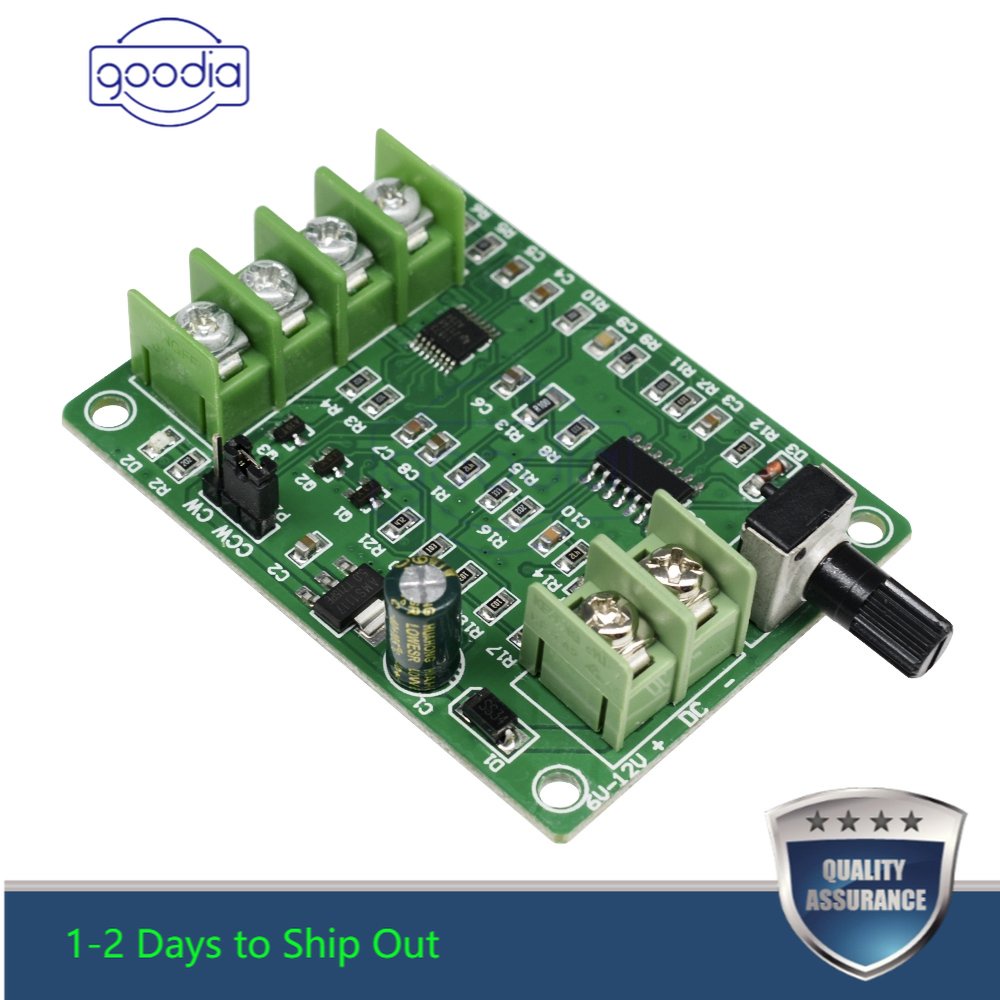

The driver board can drive hard disk brushless motors ,CD-ROM brushless motor and so on ， the micro 3-wire or 4-wire
without hall brushless motor ,
It's have reverse voltage protection , Over current protection , Phase inversion control
Driver voltage : DC5-12v
Working voltage : ≤1.2A
Speed adjust :0%-100%
Note : Brushless motor line of receiving terminal drive plate must be pressed sturdiness, poor contact will lack of phase
operation and burn out the chip.Board terminals fixed screw clearance, please use coarser line connected to the board.
How to identify four line motor public port: use the resistance of the multimeter * gears test this four terminal,One of the
terminals and the other three terminal resistance value of the minimum and equal
So it's COM terminal

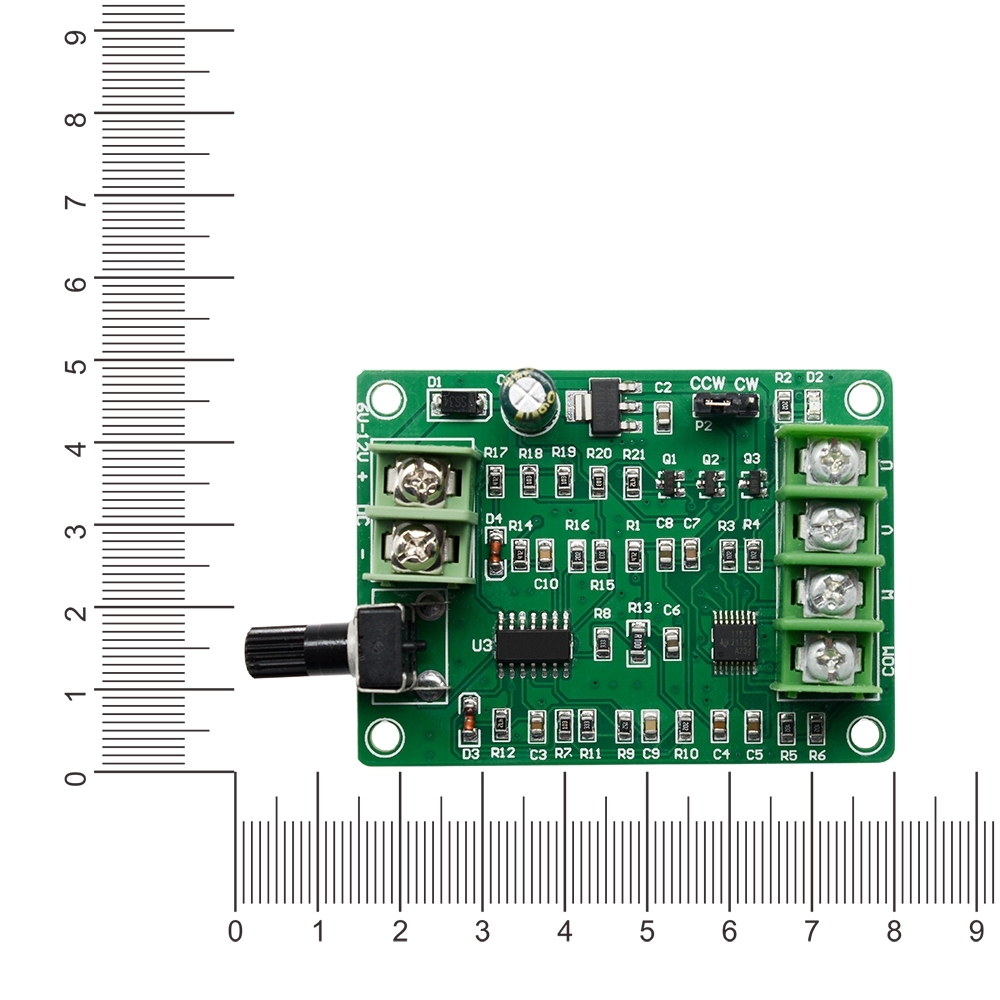

Size:6*4.5cm/2.36"*1.77"
Quantity: 1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1Pc x 5V-12V DC Brushless Motor Driver Board Controller
