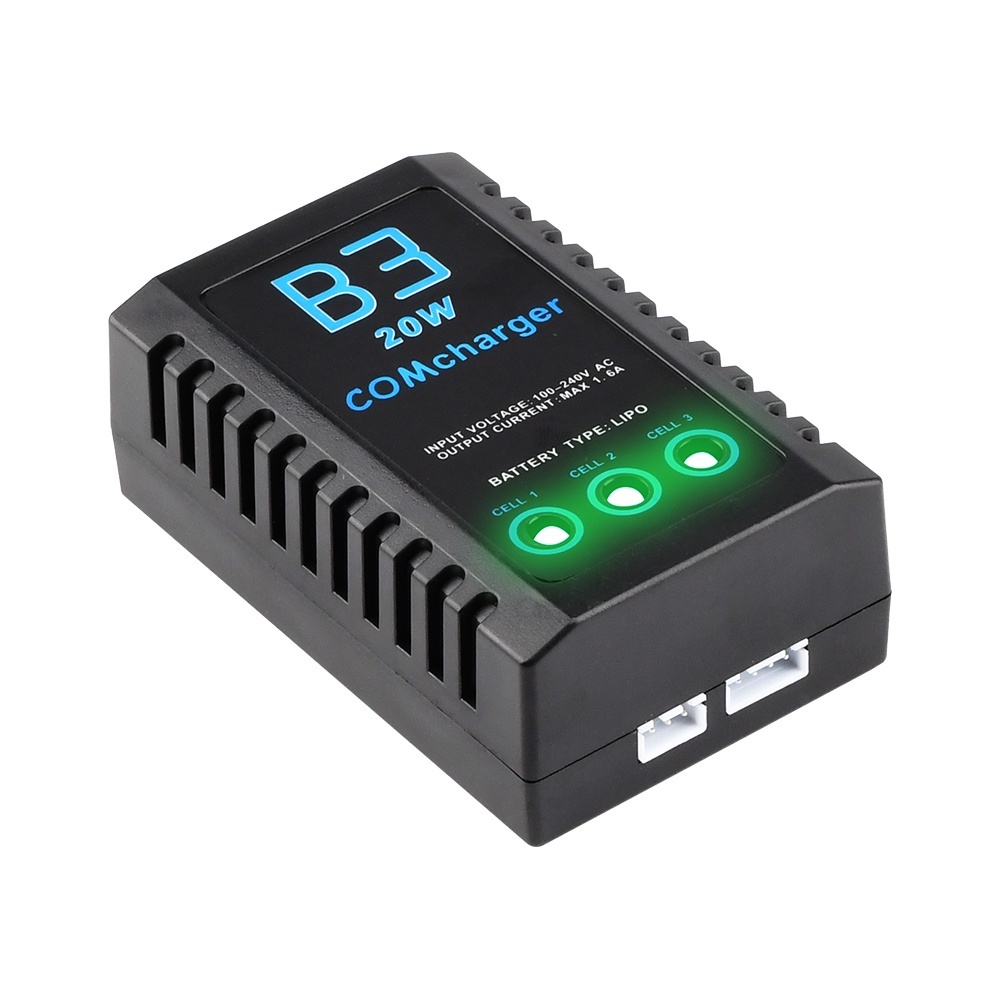

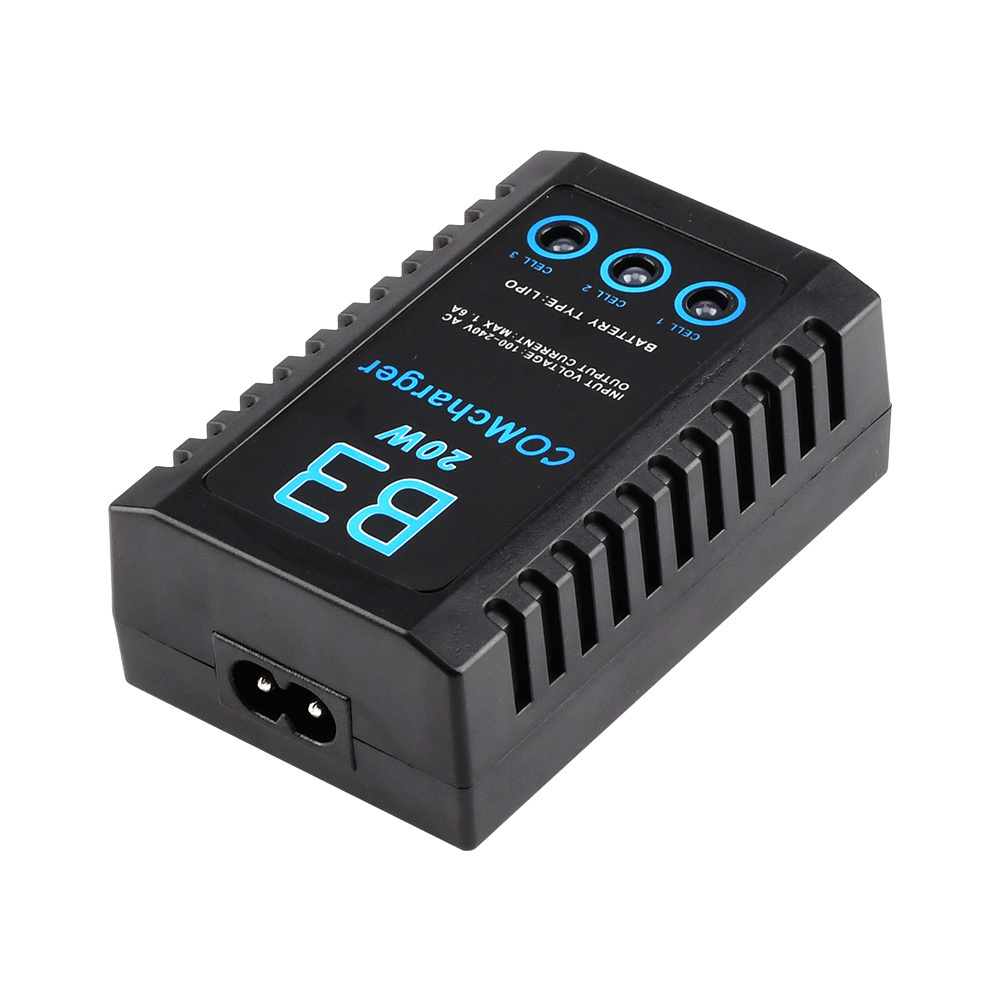

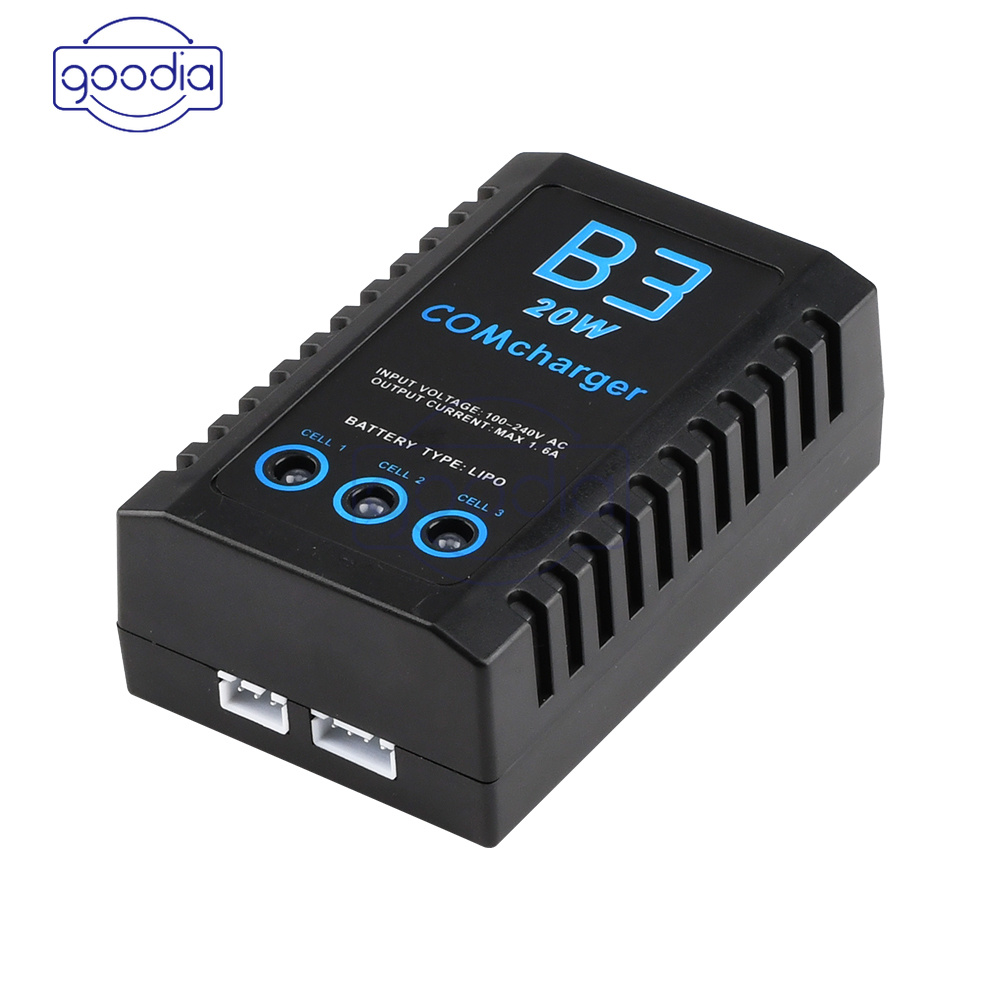

Ready stock iMaxRC B3 20W Pro Compact Charger 2S 3S Lipo Battery Balance Charger RC Compact Lipo Balance Battery Charger

Detail Ready stock iMaxRC B3 20W Pro Compact Charger 2S 3S Lipo Battery Balance Charger RC Compact Lipo Balance Battery Charger

B3 20W Simple Balance Charger is the best solution for 2S-3S batteries, because it is lightweight and exquisite, with a maximum power of 20W, uses charging current, AC functions, and especially separates the corresponding balance ports for each battery pack. This is very suitable for remote control cars and helicopters.

Performance and size parameters:
●Input voltage: AC 110V-240V
●Balance charging current: 1600mA
●Charging power: 20W
●Size: 92mm x 59mm x 35.5mm
●Weight: 100g
●Shell material: plastic
●Display: Green and red LED lights

Charger connection:
1. First, please connect B3 to the power supply, and then the three LED lights will turn green, which indicates that the charger is in good condition.
2. Secondly, please connect the 2S or 3S battery balance port, then the LED light turns red and it starts to charge the battery.
3. All the LED lights turn green, and the charging process ends. Please terminate the charging process.

caveat:
1. Only use the charger and battery type. Don't try to use other types of batteries. The charger is not compatible with LILO or NiMH/NiCd batteries.
2. Observe any battery that warns you.
3. Please observe the charging process of the charger. If any failure is found, terminate the process immediately.
4. Keep the charger away from moisture, dust, dirt, heat, direct sunlight and vibration.
5. All connections are before starting the charging process. Do not connect with reverse polarity.
6. The charger and battery should be placed on a heat-resistant, non-flammable and non-conductive surface. Don't put them on car seats, carpets or similar. Keep combustible materials away from the work area.
7. Avoid short circuit between the output power cord and the input connector, always connect the charger of the adapter cord, and then charge the battery. When the sequence is reversed, disconnect.

The attachment contains:
●B3 charger x 1

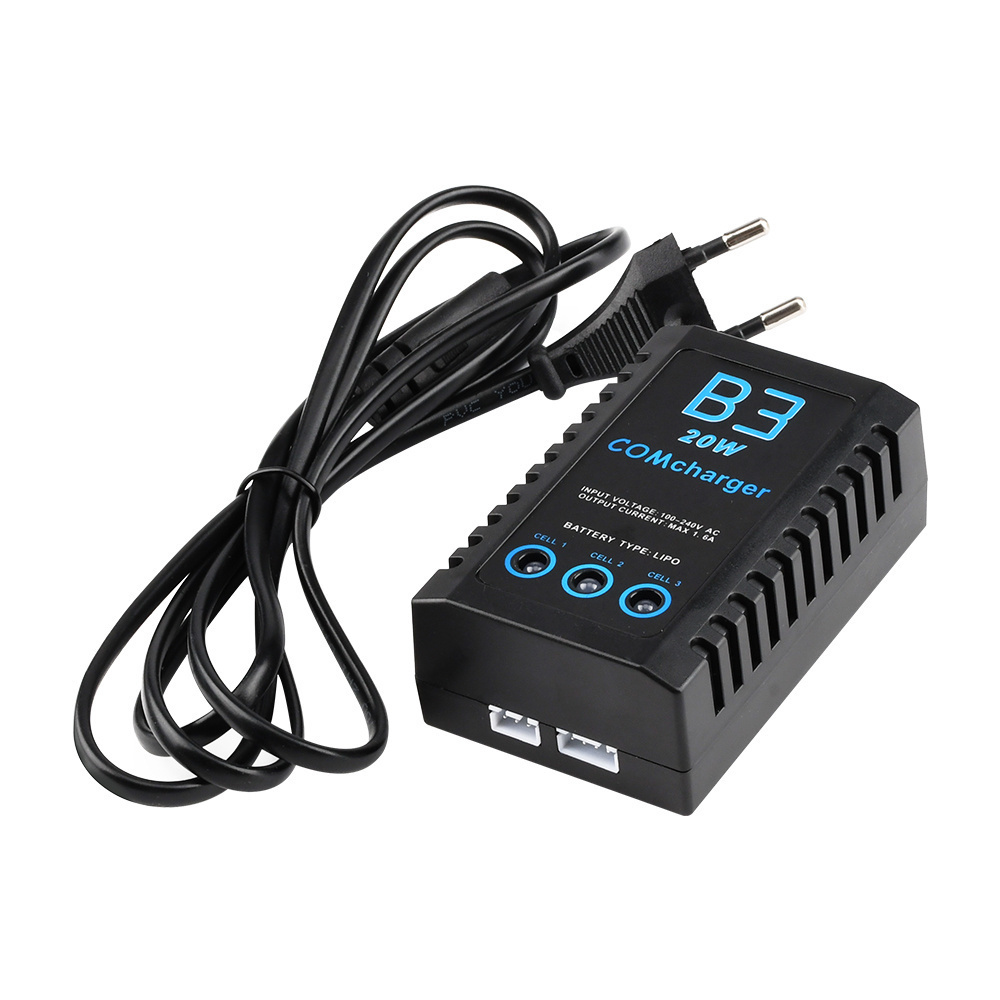

●AC power cord x 1
●English manual x 1
●Colorful packing box
