RDA5807M RRD102 V2.0 FM stereo radio module

Detail RDA5807M RRD102 V2.0 FM stereo radio module

Harga 1pcs

" RRD -102V2.0 " stereo radio module ( the FM Radio Pay Per View Stereo Module1 ) high sensitivity, low power consumption, ultra-small size FM stereo radio module. Using RDA Microelectronics of RDA5807M (or RDA5802NM ) , this circuit external components, the noise factor is minimal. Small size, low power, low cost, simple application, using a wide range of advantages. Is an easy possessed highly cost-effective single-chip FM stereo radio module.
A: Mobile DVD , TV , MP3 , MP4 and other built-in FM wide-band wireless receiver module.
B : mining, business, campus, residential, tourist areas and other public places, stereo FM radio system.
C : wireless audio and wireless stereo headset function.
D : the GPS navigation system, radio and television broadcasting FM radio.
E : high-end game consoles and wireless audio electronic toys.
F. : Stereo mobile phone, cell phone, intercom systems, mobile radio and other radio devices.
G : PDAS and Notebook PC and other peripheral applications.
Second, the functional characteristics:
The A , using a common 102BC module package, users can replace the use of direct, without changing the circuit design.
B , high sensitivity, low noise, anti-interference ability, very few external components, small size ( . 11 * 11.2mm Max ), extremely simple to use.
C , 76-108MHz worldwide FM band compatible (including Japan 76-91MHz and Europe 87.5-108.5MHz ).
D , the I2C serial data communications bus interface , support for external reference clock input.
E , fully integrated COMS technology single-chip integrated circuits, power consumption is minimal.
F. , High-accuracy the A / D (ADC) and digital frequency synthesizer.
G , built-in LDO adjustment, low power consumption, wide voltage range ( 2

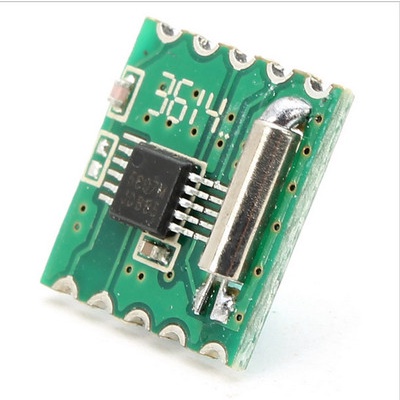

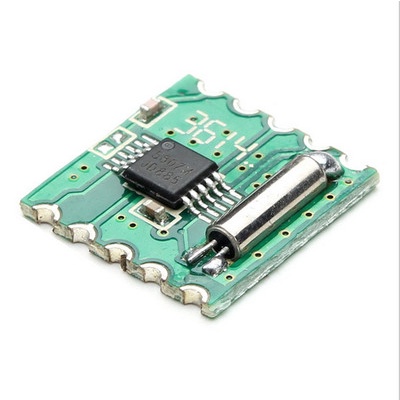

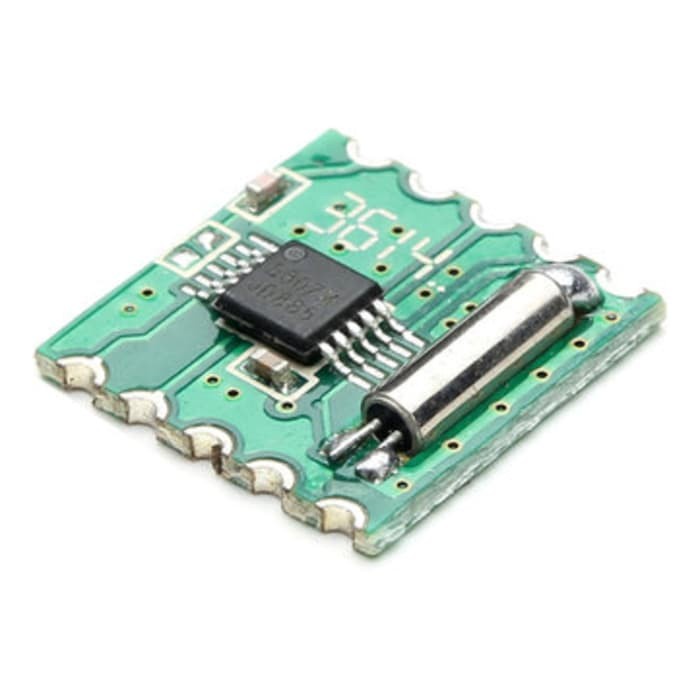

Gambar produk
