Detail RCWL-9610 Ultrasonic Sensor HC-SR04 Ver 2022 support I2C UART 1-Wire

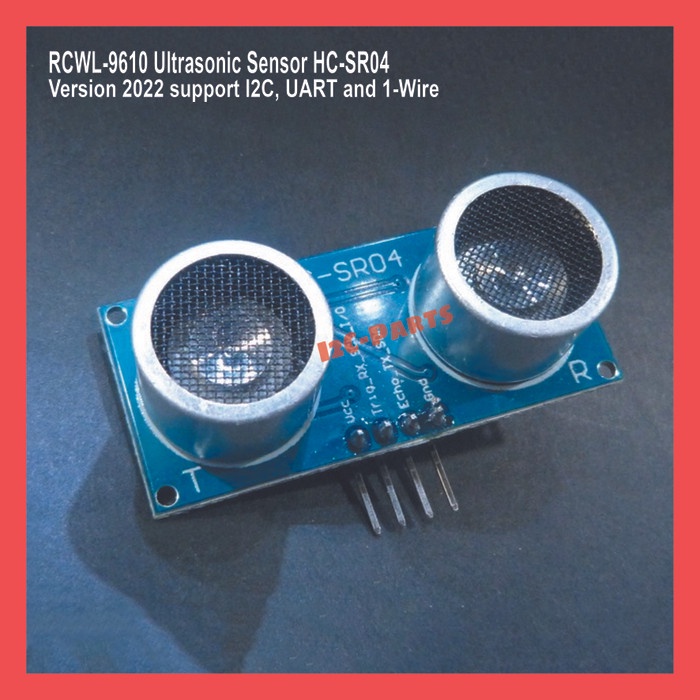

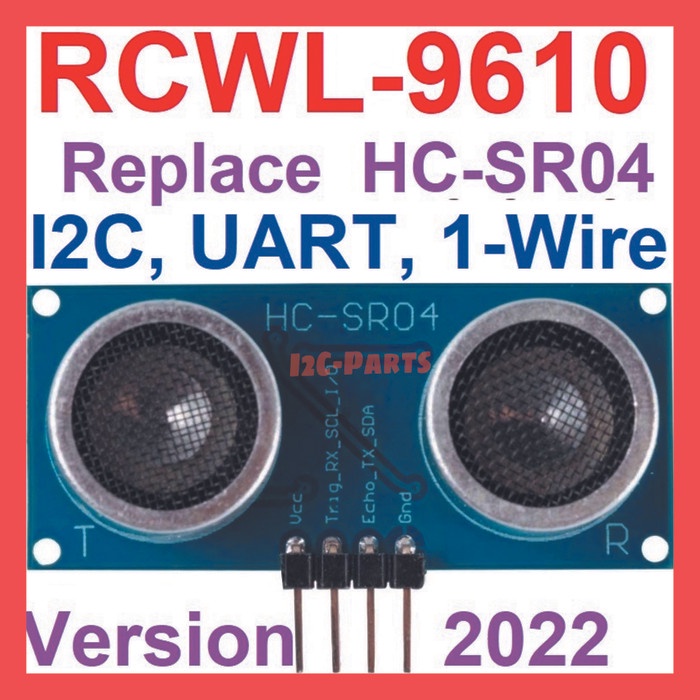

DescriptionUltrasonic distance sensor HC-SR04+ version 2022. An improved version of the well-known sensor with an extended power range on the RCWL-9610 controller.

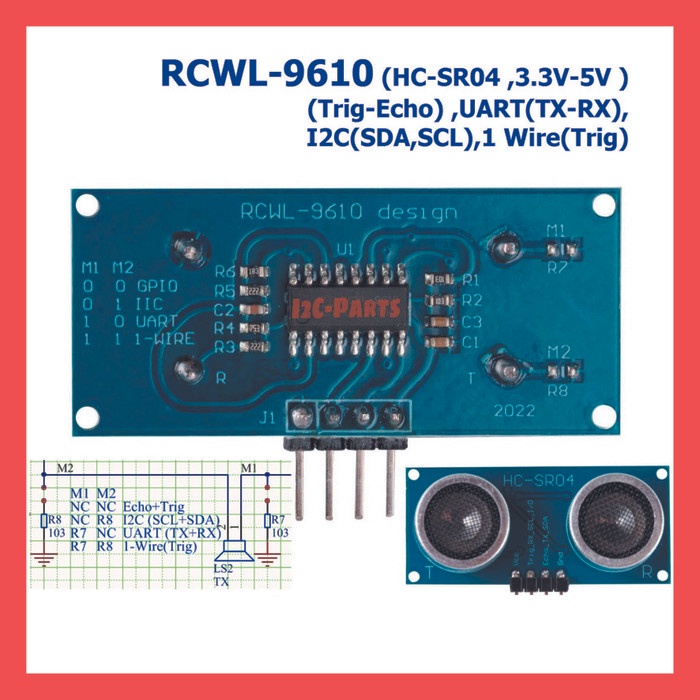

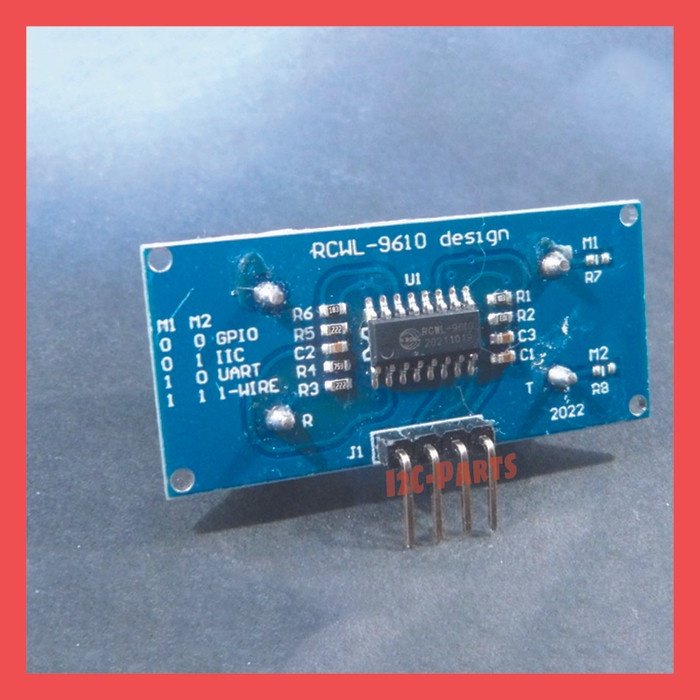

The use of the new controller complements the sensor interfaces: I2C, UART and 1-Wire. To change the interface, you need to install jumpers on the contacts on the back of the board.
No soldered jumpers, works exactly the same as the old version of the HC-SR04 module
Specification:
supply voltage: from 3.3 to 5 V;
current consumption in silence mode: 2 mA;
current consumption in measurement mode: 15 mA;
effective angle: 15°;
working angle: 30°;
measured distance: from 2 to 450 cm.
