RCA Crimping Coaxial 75 Ohm | Canare [RCAP-C4F]

Detail RCA Crimping Coaxial 75 Ohm | Canare [RCAP-C4F]

100% Original Canare
Harga per 1 piece.

The Canare RCAP-C4F 75 Ohms RCA Crimp Pin Connector is specially designed for L-4CFB, LS-4CFB, V-4CFB, Belden 1505A/8212/8241F/9167/9259/9659 Cables.

It has easy assembly using Canare Strip Crimp Tools and Internal Pressure Contact Fingers.

-------------------- Spesifikasi ---------------------------------
- Standard 75 ohm construction Crimp Pin Sleeve
- DC to 200MHz greater than 26dB Return Loss (less than 1.1 VSWR)
- Absolutely No Soldering Required
- Gold plated center Shaft
- Operating temperature -20 to +60 degrees Celsius

---------------------------------------------------------------------
Silahkan lihat gambar produk untuk melihat produk dengan lebih detail.
Gambar produk tertera adalah foto yang kami ambil sendiri menggunakan barang yang kami jual dan berikan kepada customer.

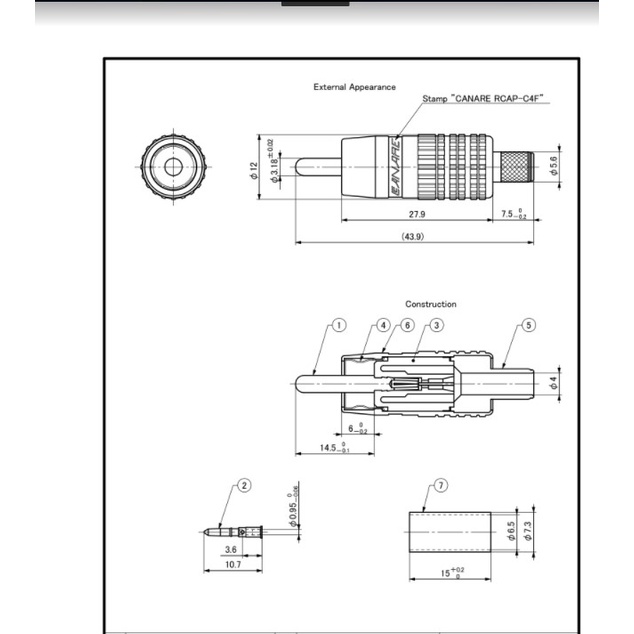

Gambar produk
