RB LHG-5nD

Detail RB LHG-5nD

Lepasan dr 3pack.
Produk Mikrotik variant terbaru yang menggabungkan Antenna Grid Outdoor gain besar dengan RouterBoard yang memiliki banyak fitur. Mengutamakan gain antenna besar yang bisa digunakan di link wireless lebih jauh dari produk lain, siap digunakan di jaringan wireless backbone Anda.
*Menggunakan Standart Wireless 802.11a/n

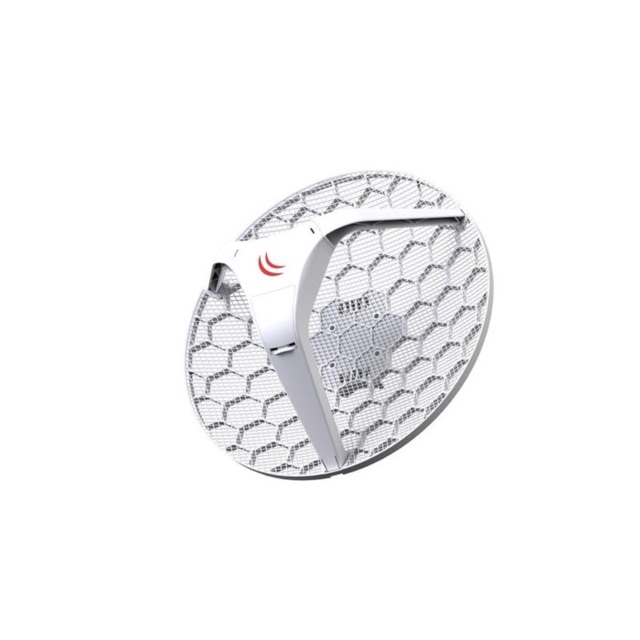

The Light Head Grid (LHG) is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol. The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
Antenna Specification :
Operating frequency : 5150 - 5875 MHz
Antenna gain : 24.5 +/- 0.5 dBi
Antenna beam width : 7
Cross polar : 15 dBi
Port to port isolation : 20 dB
Front to back ratio : 25 dB
Return loss : 10 dB
VSWR : 1.925:1

Detail Barang:

Routerboard RBLHG-5nD dengan outdoor Grid Antenna 5Ghz 24.5dbi
1 port ethernet (1 untuk PoE)
Power Adaptor 24 V
Power over Ethernet Spliter
2 pcs metal ring
Screw Kit

*Spesifikasi RBLHG-5nD
Product Code RBLHG-5nD
Architecture MIPS-BE
CPU AR9344 600MHz
Current Monitor No
Main Storage/NAND 16MB
RAM 64MB
SFP Ports 0
LAN Ports 1
Gigabit No
Switch Chip No
MiniPCI 0
Integrated Wireless 1
Wireless Standarts 802.11 a/n
Wireless Tx Power 25dbm
Integrated Antenna Yes
Antenna Gain 24dbi
MiniPCIe 0
SIM Card Slots No
USB No
Memory Cards No
Power Jack No
802.3af Support No
POE Input 11-30V
POE Output No
Serial Port No
Voltage Monitor No
Temperature Sensor No
Dimentions 450 x 450 x 145 mm
Operating System RouterOS
Temperature Range -40C .. +70C
RouterOS License Level3

*NB: Tanpa dus asli, krn ambil dr lhg 3pack
