RAPAtech CH5110 - POWER GaN I - GaN65W Fast Charger 4 Port 65W PPS

Detail RAPAtech CH5110 - POWER GaN I - GaN65W Fast Charger 4 Port 65W PPS

Kami menjamin semua barang kami adalah 100% original.


POWER GAN I (GAN65W)

Model No: CH5110

Input : AC100~240V 50/60Hz 1.5A (MAX)
Output : USB-C1/ USB-C2: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=3.25A(65W Max.)
PPS: 3.3V-16V = 3.26A (65W Max.)

USB-A1/ USB-A2: 5V=3A, 9V=3A, 12V=2.5A
USB-C1/ USB-A1 + USB-C2/USB-A2 : 30W + 30W
(USB-C1+USB-A1) / (USB-C2+USB-A2) : 5V=2.4A + 5V=2.4A
USB-C1/ USB-A1 + (USB-C2+USB-A2) : 30W+5V=2.4A+5V=2.4A
USB-C2/ USB-A2 + (USB-C1+USB-A1) : 30W+5V=2.4A+5V=2.4A
USB-C1+USB-C2+USB-A1+USB-A2 : 5V=2.4A+5V=2.4A+5V=2.4A+5V=2.4A

Dimensi : 61*39*98.7 mm
Material : ABS
Berat : 180 gr
Warna : Hijau

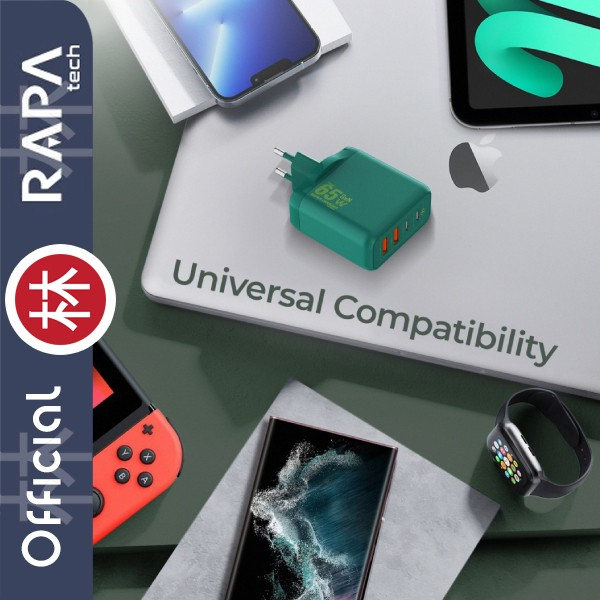

Universal Compatibility
It can be used for intelligent identification and charging of Bluetooth devices, mobile phones, tablets and other digital electronic products that are compatible with Power Delivery and Quick Charge Technology.

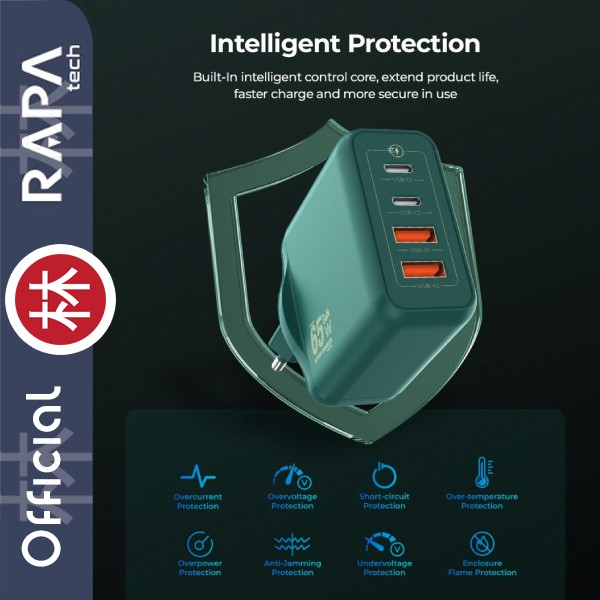

Intelligent Protection Functions
Built-In intelligent control core, extend product life, faster charge and more secure in use. Protecting your devices charging with eight layer protections; Overcurrent protection, Overvoltage protection, Short circuit protection, Over temperature protection, Over power protection, Anti-jamming protection, Undervoltage protection, Enclosure Flame Protection.

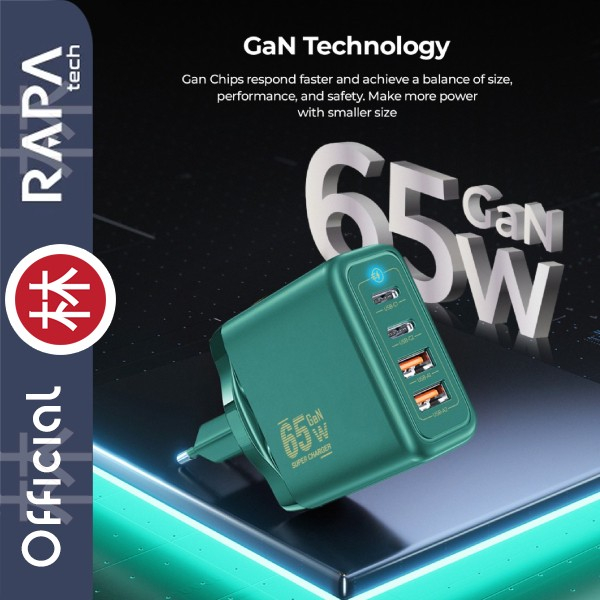

GaN Technology
GaN Chips respond faster and achieve a balance of size, performance, and safety. Make more power with smaller size.

Support Samsung PPS Technology
In which the charger will program the best matching charging power according to the connected devices.

Support all fast charge protocols; PD, QC, SFC, FPC, AFC, etc.

International Certified
Passing the international EMI and Regulatory standards including FCC, CE, CCC rules, etc.
