1. JEDEC Standard 2. DDR3 Speed Grade : 1600 Mbps 3. Unbuffered DIMM : 240-pin 4. Memory Organization : x8 FBGA DRAM chip 5. DDR3 DRAM interface : SSTL_15 6. CAS latency : CL9 7. Bandwidth : 10600MB/s 8. VDD voltage : 1.5+-0.075V 9. VDDQ voltage : 1.5+-0.075V 10. Serial presence detect with EEPROM 11. PCB height : 1.18 inch 12. RoHS Compliant 13. Application : Desktop

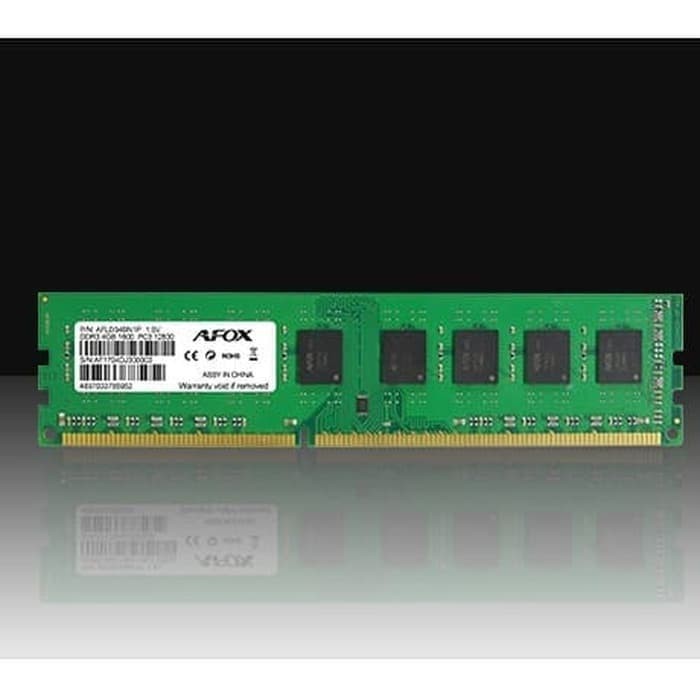

Specification 4GB DDR3 1600 Long DIMM
Working Voltage 1.5V ± 0.075V CL 9 cycles Row Cycle Time (tRCmin) 48.125ns (min.) Refresh to Active/Refresh
Command Time (tRFCmin)
260ns (min.) Row Active Time (tRASmin) 35ns (min.) Maximum Operating Power 1.170W UL Rating 94V - 0 Operating Temperature 0℃ - 85℃ Storage Temperature -55℃ - 100℃
