RAINDROPS RAIN HUMIDITY DETECTION SENSOR AIR HUJAN MODULE

Detail RAINDROPS RAIN HUMIDITY DETECTION SENSOR AIR HUJAN MODULE

SEN-0007
========

Descripsi:
=================================
Sensor ini merupakan sensor untuk mendeteksi hujan, yang memiliki sensitivitas yang baik, dengan output berupa output digital sehingga mudah untuk dipakai menjadi inputan mikrokontroler kita.

Feature:
=================================
- Distribution bit to adjust sensitivity
- A fixed bolt hole for easy installation
- Power indicator, the output signal LED indicator
- The comparator output, the signal is clean, waveform, driving ability over 15mA
- Wide voltage LM393 comparator

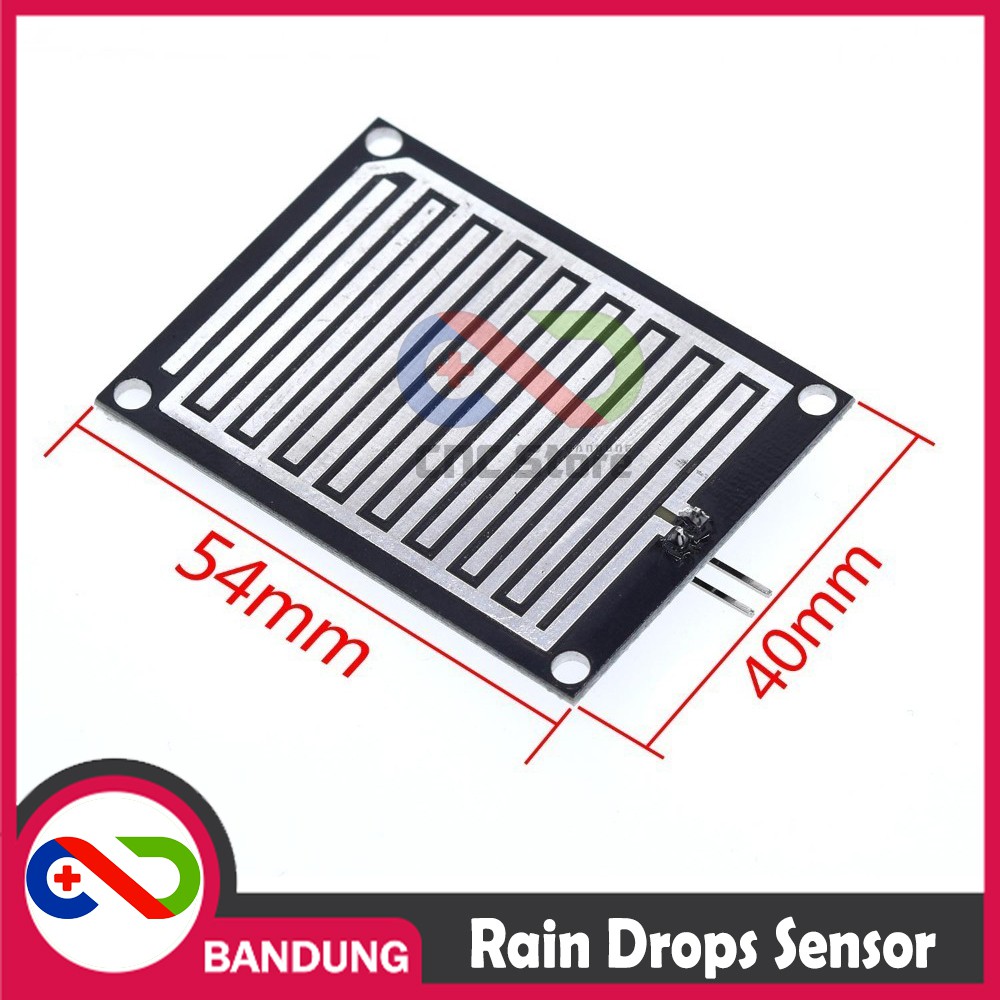

- A large area of rain board, more conducive to detect rain
- Board with positioning holes to facilitate installation
- Raindrops and control panels are separate, easy to wire leads

Specification:
=================================

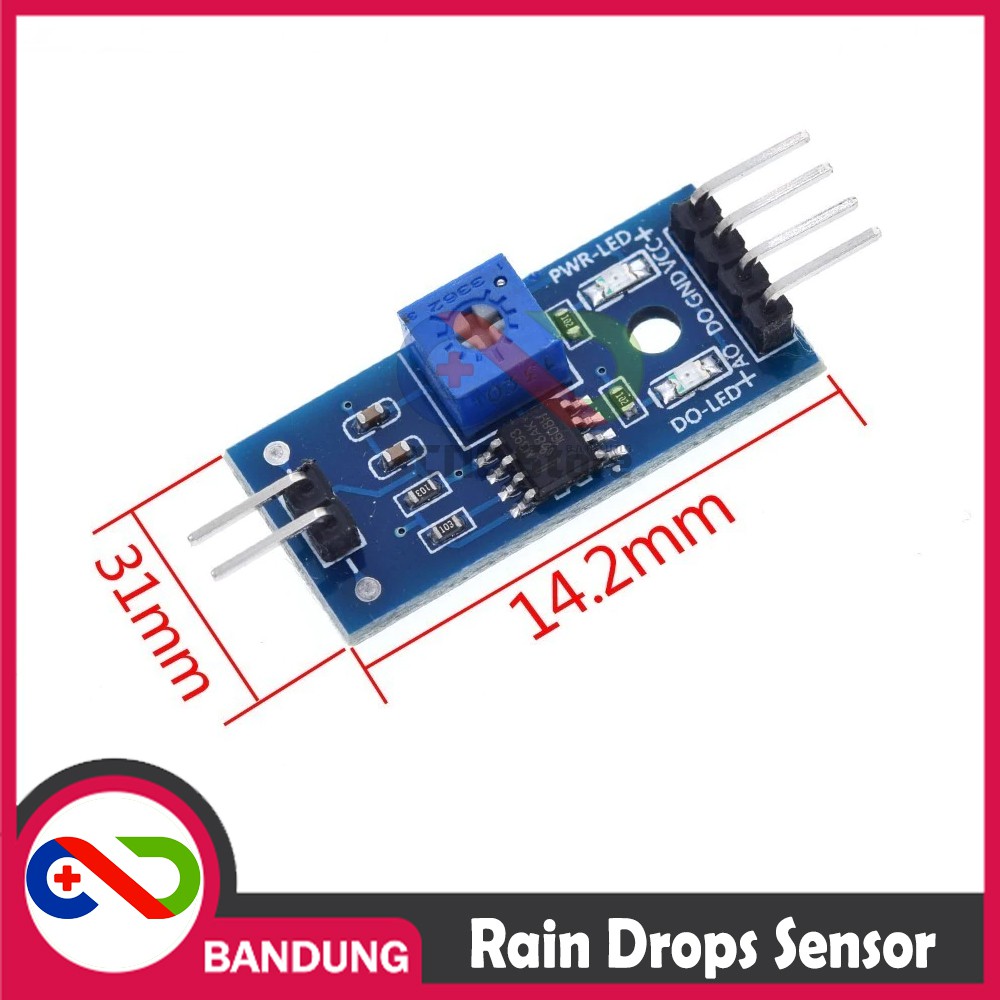

- Small board PCB size: 3.2cm x 1.4cm
- Operating voltage: 3.3V-5V
- Voltage: 5V

Connection mode:
=================================
- VCC: positive power supply (3-5V)
- GND: negative one.
- DO: TTL switching signal output
- AO: Analog signal output

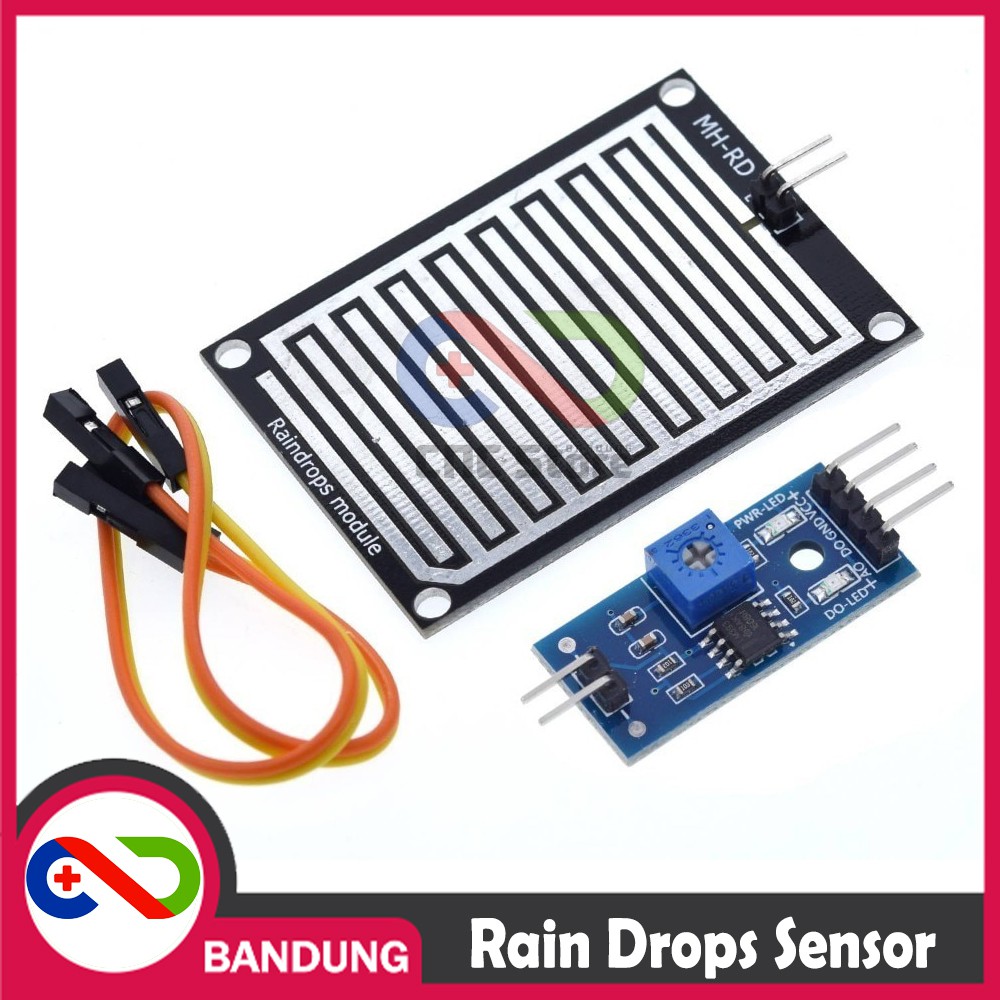

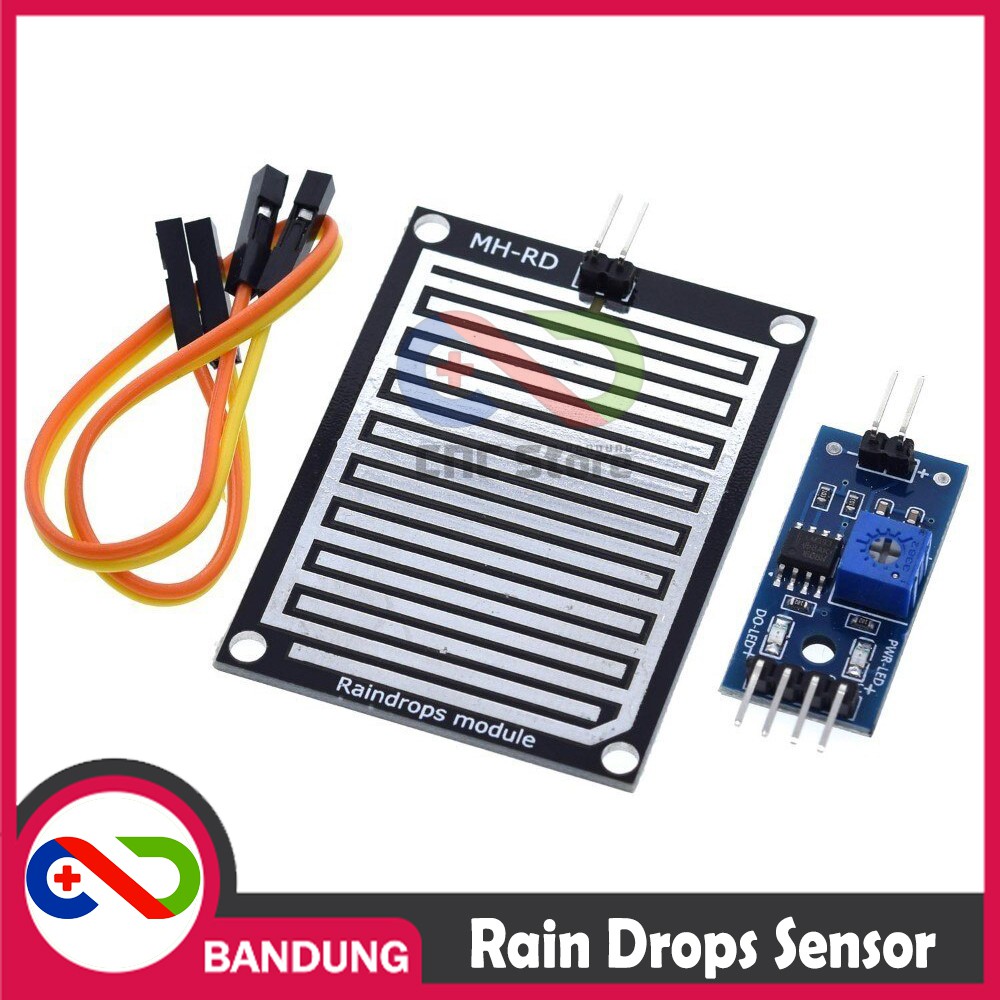

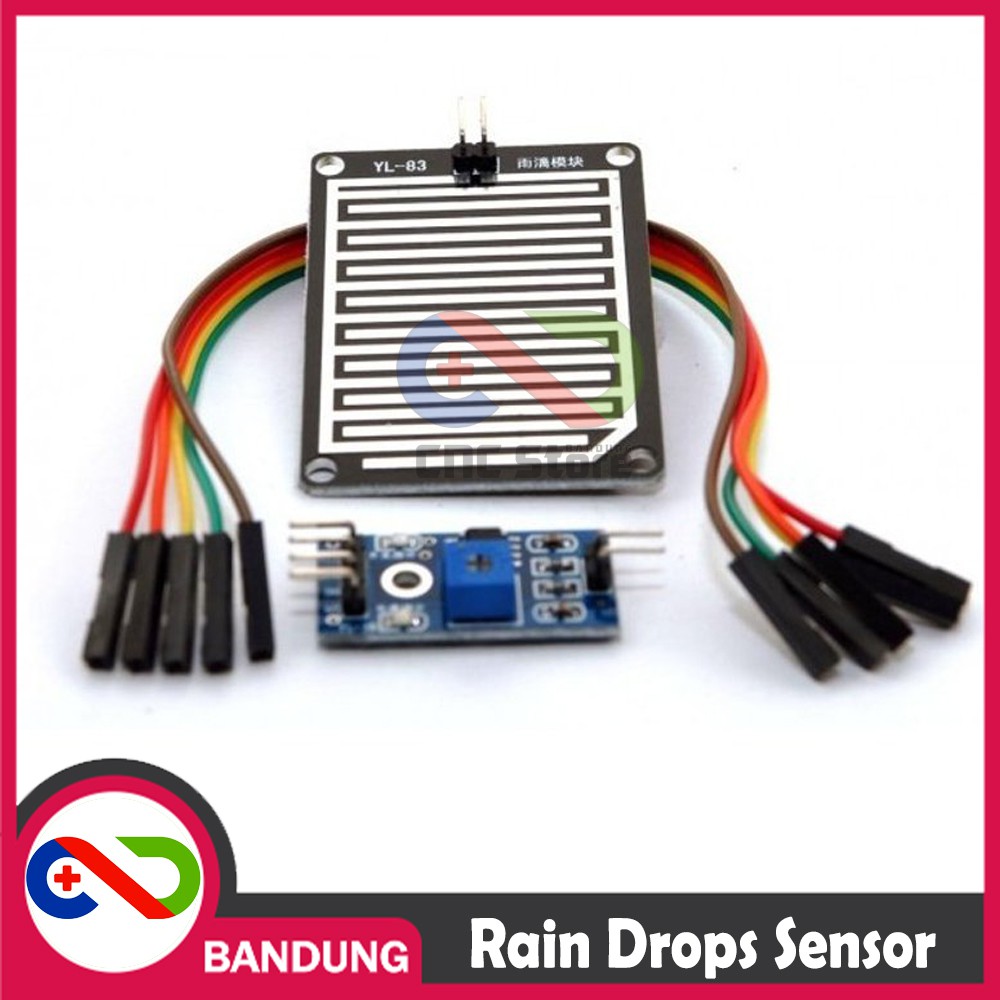

Paket :
=================================
- 1 x Rain sensing board
- 1 x Control board
- 2 x 20cm Dupont Line

UNTUK HARGA GROSIR CHAT US ^^

Gambar produk
