Radio VHF TSSD HT Original TSSD TS-868 Power 10 watt VHF Ready Stock ORI TSSD TS868

Detail Radio VHF TSSD HT Original TSSD TS-868 Power 10 watt VHF Ready Stock ORI TSSD TS868

Spesifikasi :

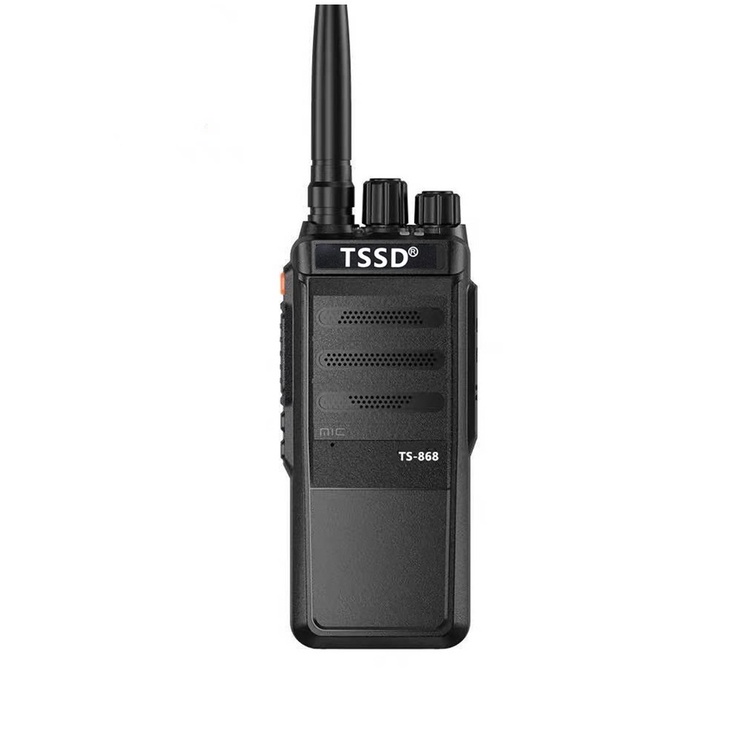

HT Original TSSD TS-868 Power 10 watt Vhf

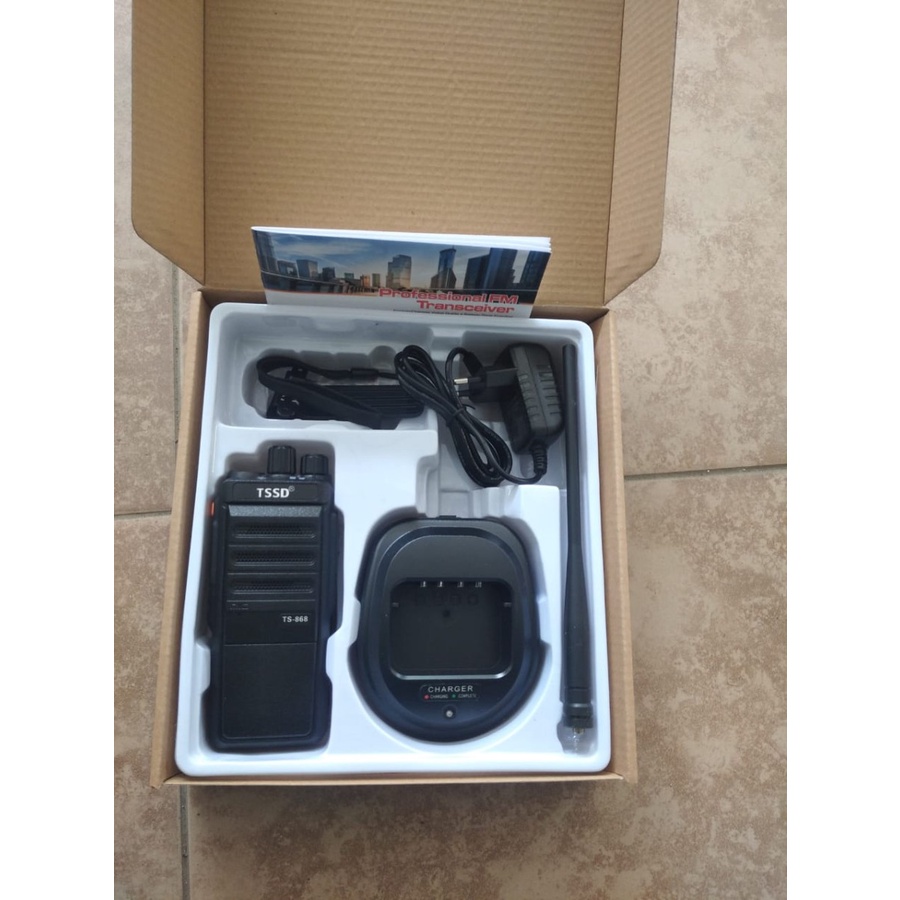

isi box :
- 1 unit Ht TSSD ts - 868
- 1 unit Batttery 3000 mAh 7.4V
- 1 unit Adapter 12v 500mA
- 1 unit Dock Dc 8.4v = 500mA
- 1 unit Tali
- 1 unit Belt Clip

MAIN FEATURES

- 10W high power output
- High /Low power switch
- CTCSS/DCS(QT/DOT code)
- Short cut operation
- Wide/Narrow band
- Monitor /Monitor momentary function
- Scan function
- VOX function
- Emergency alarm
- Time-out-timer(TOT)
- Busy channel lockout(BCL)
- End-tone elimination
- Battery save
- Low-battery alert
- PTT ID

SPECIFICATIONS
- Frequency Range VHF 136-174MHz
- Supply Power DC 7.4V
- Operation Temperature -30- 70
- Frequency Engender PLL frequency synthesis
- Memory Channel 16
- Antenna Rubber antenna
- Antenna Impedance 50ohm
- Work Mode Same frequency simplex or different frequency simplex
- Ground Method Negative
- Dimension 133.557.540mm
- Weight 490g

TRANSMITTER

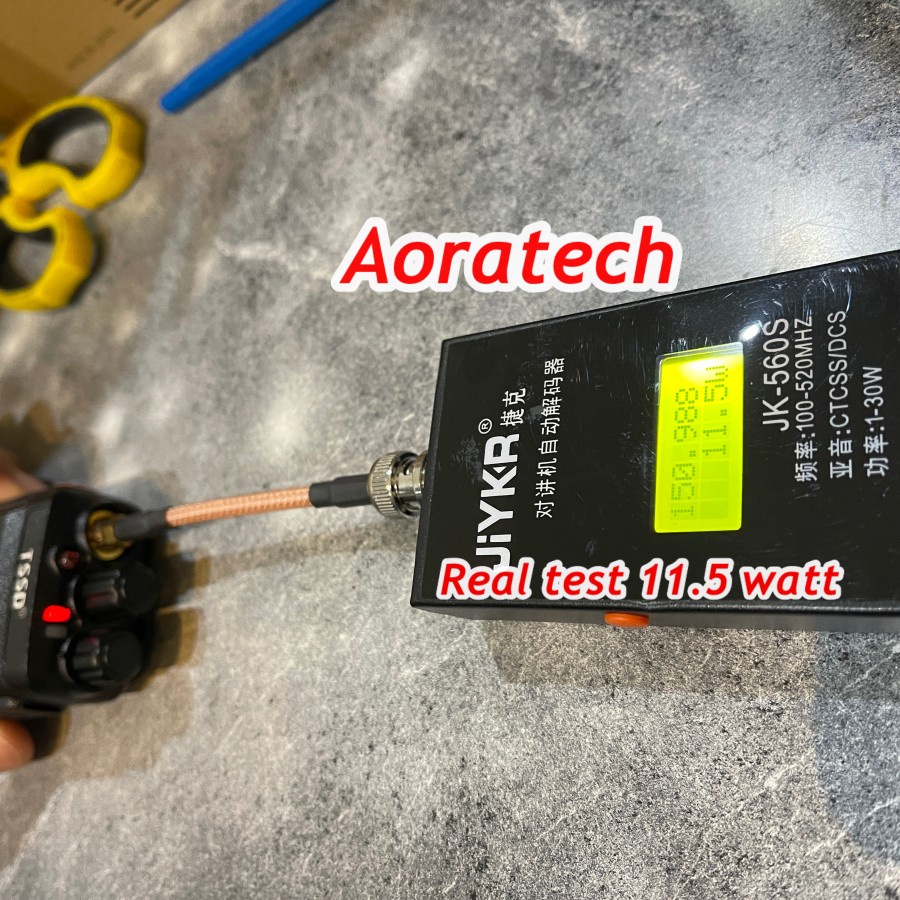

- Output Power 10W/5W/2W
- Modulation Mode FM(F3E)
- Max.Frequency Deviation 5KHz
- Sparious Radiation-60dB
- Preemphasis Character 6dB
- Emission Current 450mA

RECEIVER
- Sensitivity 0.16uV12dB SINAD)
- Squelch Sensitivity 0.2uV
- Intermodulation Interference Resistance 50dB
- Audio Power 400MM/1W
- Receiving Current 100mA
- Standy Current 20mA

Gambar produk
