Detail RADIO SSB ICOM IC-78 IC78 NEW GARANSI RESMI

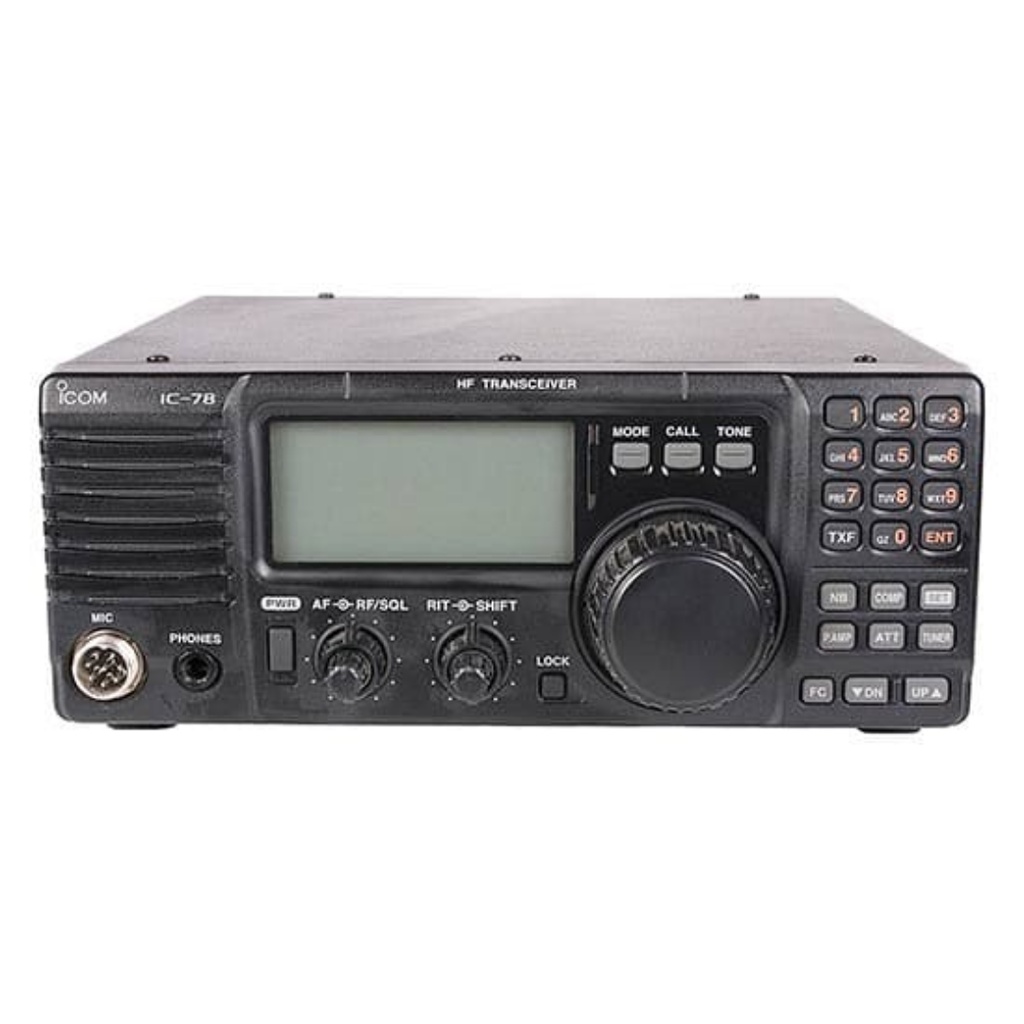

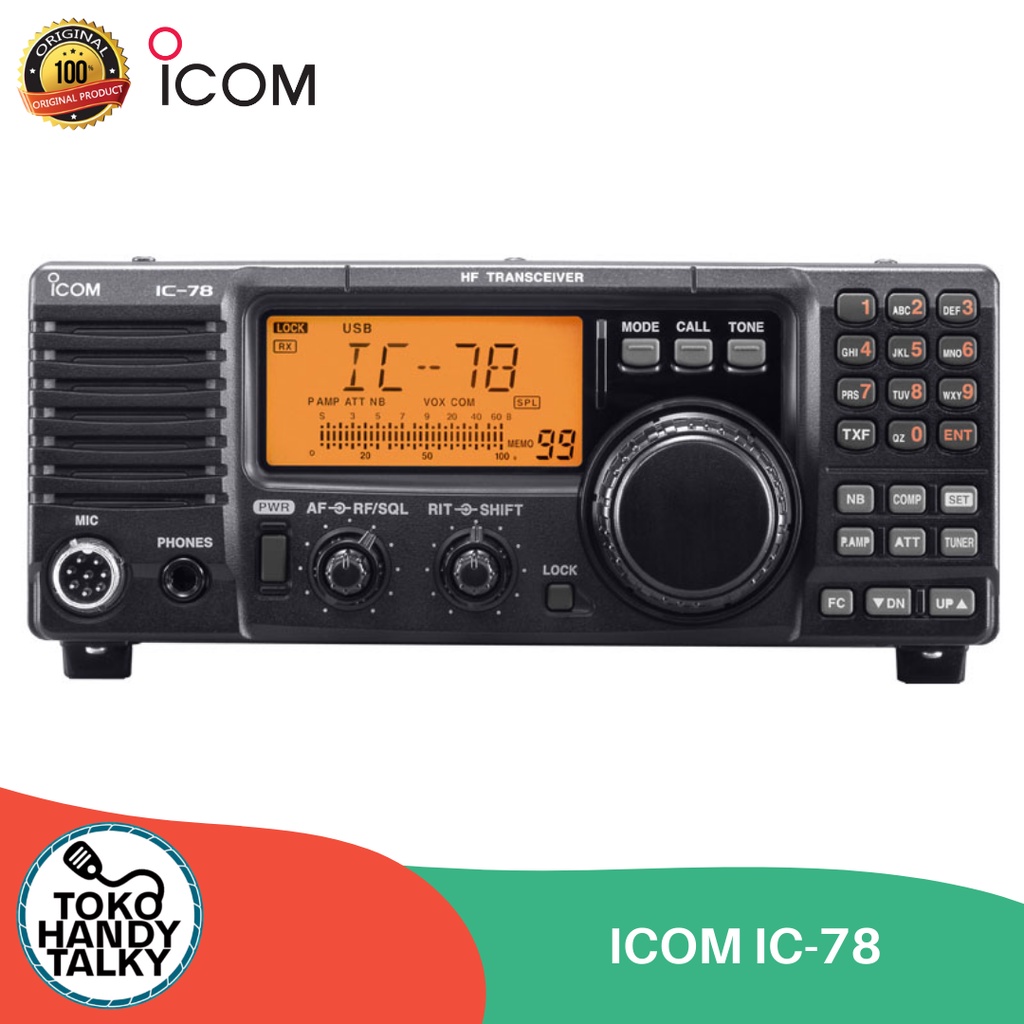

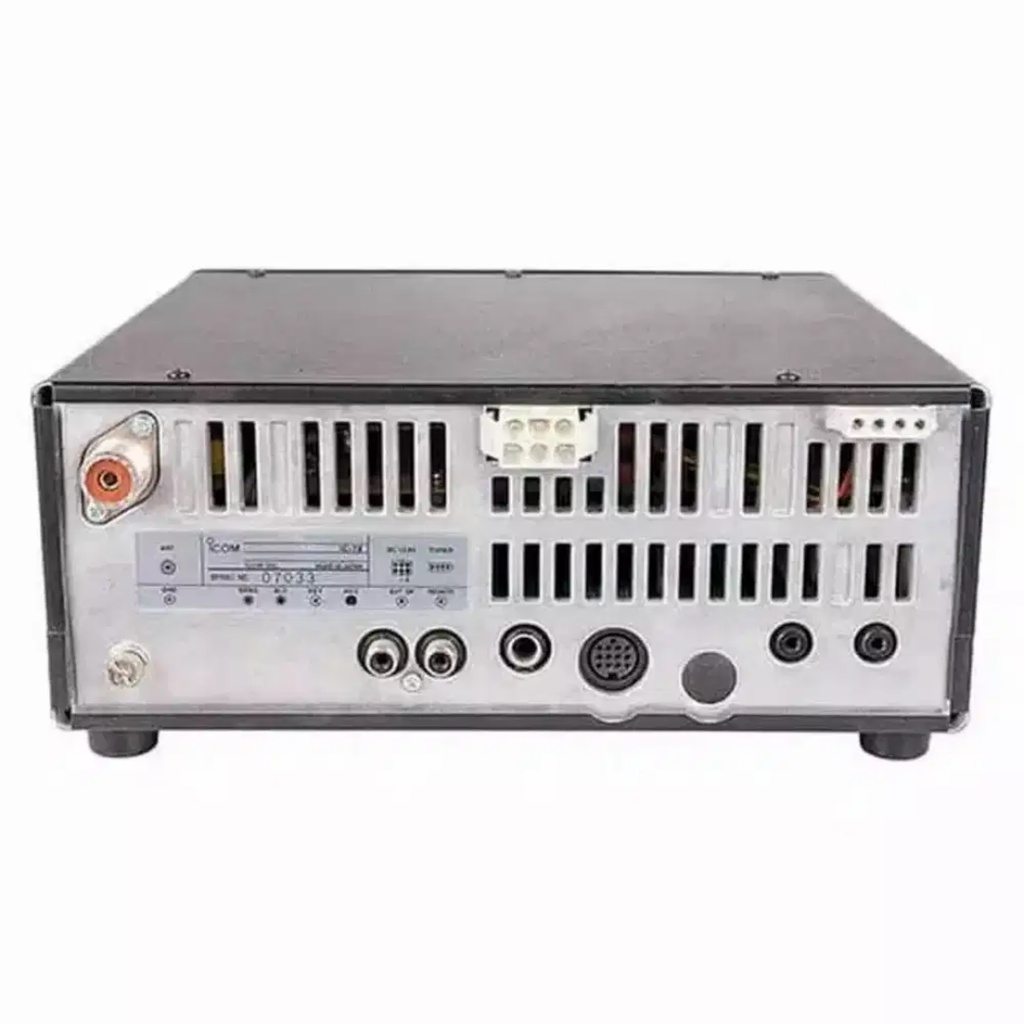

ICOM IC-78
Reliable long distance communications Simple operation with keypad General coverage receive Front mounted loud speaker ther features - 101 memory channels - VOX (Voice Operated Transmission) - Digital S/RF meter - Band stacking register - IF shift interference rejection - Squelch/RF gain control - Optional automatic antenna tuner, AT-140 available
Specification : - Frequency range Tx 1.6-29.9999 MHz (Guaranteed : 0.5-29.9999) Rx 0.03-29.9999 MHz - Power supply requirement 13.8V DC ±15% (negative ground) - Dimensions (W×H×D) (Projections not included) 240×95×239 mm 9.4×3.7×9.4 in - Weight (approx.) 3.8kg; 8.4lb - Current drain (approx.) Transmit (High) 20A typ. at max. power Max. audio output 2.0A - Sensitivity (at 10dB S/N; 1.8–29.999MHz) SSB, CW, RTTY 0.16μV AM 2.0μV typ - Selectivity SSB, CW, RTTY 2.1kHz/-6dB 4.5kHz/-60dB AM 6.0kHz/-6dB 20kHz/-60dB - Audio output powe (10% dist/ 4Ω load) 2.0W (10% dist / 8Ω load) - RF output power (PEP) (output power differs depending on version) SSB, CW, RTTY 2-100W AM 2-35W
