RADIO RIG ICOM IC-M200 MARINE VHF NEW

Detail RADIO RIG ICOM IC-M200 MARINE VHF NEW

Deskripsi RADIO MARINE ICOM IC-M200
FITUR ICOM M200
Dualwatch dan tri-watch fungsi
fungsi saluran favorit
Built-in TCXO ultra-stabil untuk stabilitas frekuensi terpercaya
operasi saluran dengan mikrofon tangan, HM-164B, di tangan Anda
tombol instan-akses untuk Channel 16 dan saluran telepon
Prioritas pemindaian dan memindai biasa
Built-in indikator tegangan rendah
backlighting keypad
Waterproff
Output daya : 15W

SPESIFIKASI ICOM M200
Frequency Range
Tx : 156.025–162.000MHz
Rx : 156.025–162.025MHz

Usable channels : INT, USA, CAN channels
Type of emission : 16K0G3E (FM)
Power supply voltage : 13.8V DC nominal 1.5A (Maximum)
Current drain
Tx (at 25W output) : 5.5A (Maximum)
Rx (Maximum audio) : 200mA

Operating temperature range : –20°C to +60°C; –4°F to +140°F
Antenna Impedance : 50Ω
Dimensions (W×H×D) : 153×67×133 mm;
(Projections not included) 6.0×2.6×5.2 inch

Weight (approximately) : 790g; 1.7lb


Transmitter

Output power (Hi/Mid/Low) : 25W (High power) 1W (Low power)
Modulation : Variable reactance frequency modulation
Max. frequency deviation : ±5kHz
Frequency stability : ±5ppm
Spurious emissions : Less than –70dBc (High power)
: Less than –56dBc (Low power)
Adjacent channel power : More than 70dB
Audio harmonic distortion : Less than 10% (at 60% dev.)
Residual modulation : More than 40dB


Receiver

Intermediate frequency
1st : 21.7MHz
2nd : 450kHz

Sensitivity : –14dBμ typ. (at 12dB SINAD)
Squelch sensitivity : Less than –10dBμ
Adjacent Channel Selectivity : 75dB typical
Spurious response : 75dB typical
Intermodulation : 75dB typical
Hum and noise ratio : More than 40dB
Audio output power 4.5W typical
(at 10% distortion with a 4Ω load)

GARANSI TOKO ; 3BULAN

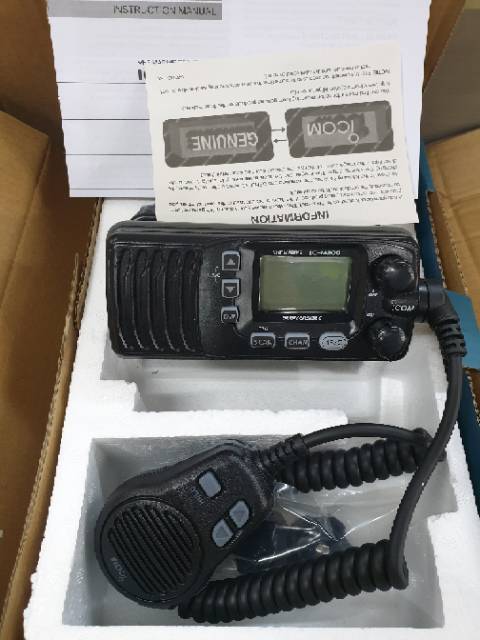

Gambar produk
