Radio Rig Alinco DR CS10

Detail Radio Rig Alinco DR CS10

SPESIFIKASI RIG ALINCO DR-CS10

Features
~ Output Power selectable 60w/25w/10w
~ Pc Progammable 200chn
~ Wide Variety of selective calling features
built-in ;The 2-tone,5-tone,51 CTCSS,
1024DCS, 4 tone burst tones and
DTMF/ ANI decode
~ Radio Stun / Kill / Revive Funtions to protect
your Communication Security
~ Large , Bright LCD and easy to operate
backlit microphone keys
~ Multi-Function microphone enables direct
Frequency entry & Remote control
~ Various Scan Modes , Keys Lock ,
Wide / Narow operations and More

General
~ Frekuensi Range 136-174 Mhz (RX-TX)
~ Number of Chanel 200 channels
~ Channel Spacing 25,20,12.5 Khz
~ Channel Step 2.5,5,6.25,8.33,10,
12.5,15,20,25,30,50 Khz
~ Operating Voltage 13.8V Dc +- 15
~ Squelch Carrier/CTCSS/DCS/
5Tone/2Tone/DTMF
~ Frequency Stability +-2,5ppm
~ Dimensions 145(W) x 35 (H) x 180 (D) mm

Receiver
~ Sensivitify (12db Sinad)
Wide mode <0,25uv Narrow mode <0,35uv
~ Adjancent Channel selectivifity
Wide mode >70db Narrow mode >60db
~ Intermodulation
Wide mode >65db Narrow mode >60db
~ Spurious Rejection
Wide mode >70db Narrow mode >70db
~ Hum & Noise
Wide mode >45db Narrow mode >40db
~ Audio Distorsion <5%
~ Audio Power Output >2W@10%

Transmitter
~ Power Output 60W/25W/10W
~ Modulation
Wide mode 16Kf3e Narrow mode 11Kf3e
~ Adjancent Channel Power
Wide mode >70db Narrow mode >60db
~ Hum & Noise
Wide mode >40db Narrow mode >36db
~ Spurious Emissions
Wide mode >60db Narrow mode >60db
~ Audio Distorsion <5%
~ Current Drain (Max) 10A(TX) / 0,6A (RX)

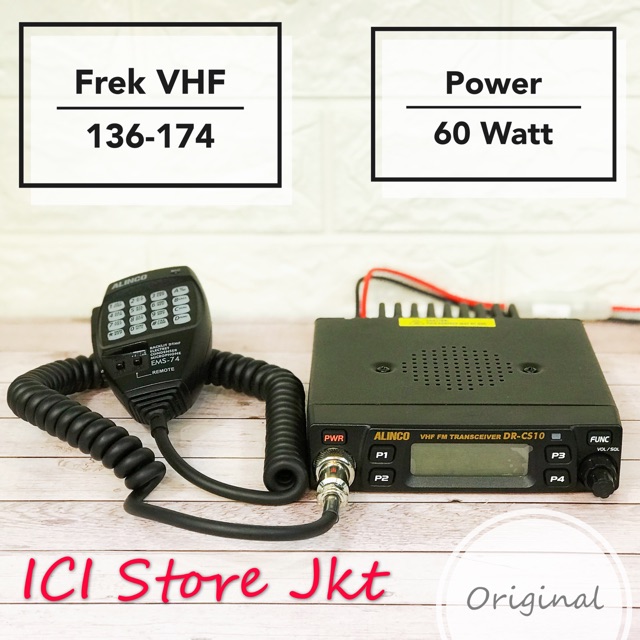

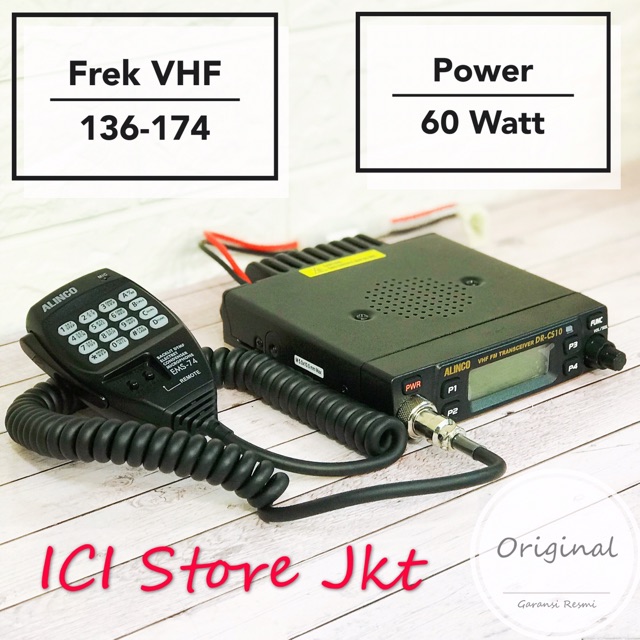

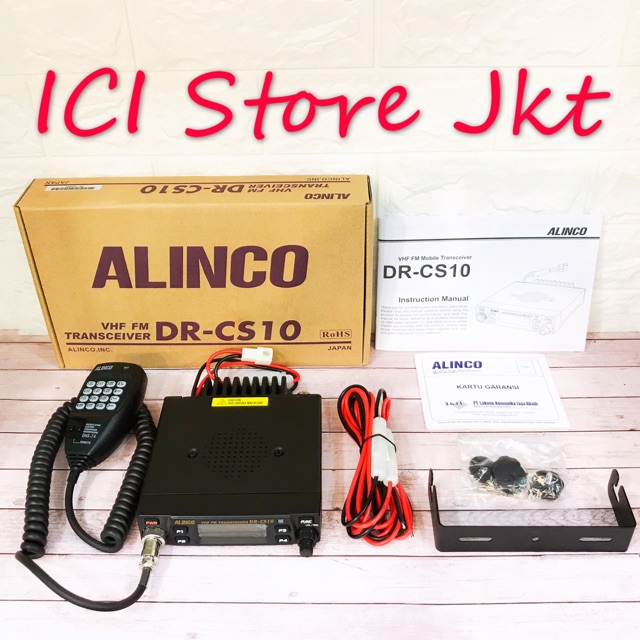

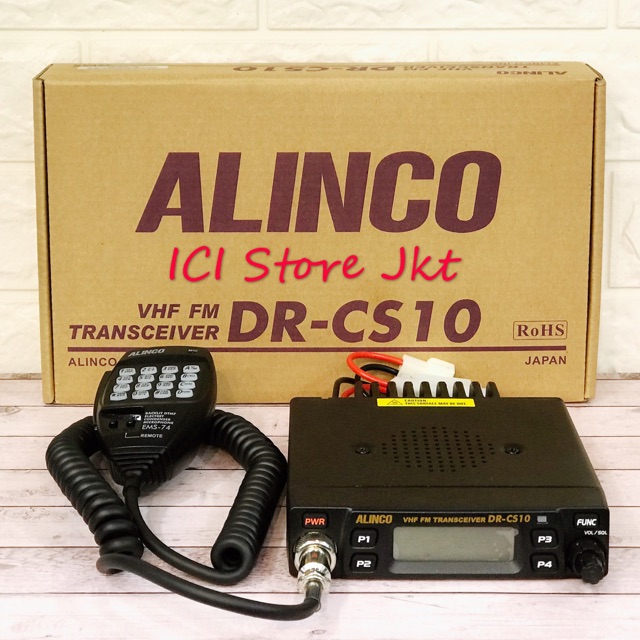

Gambar produk
