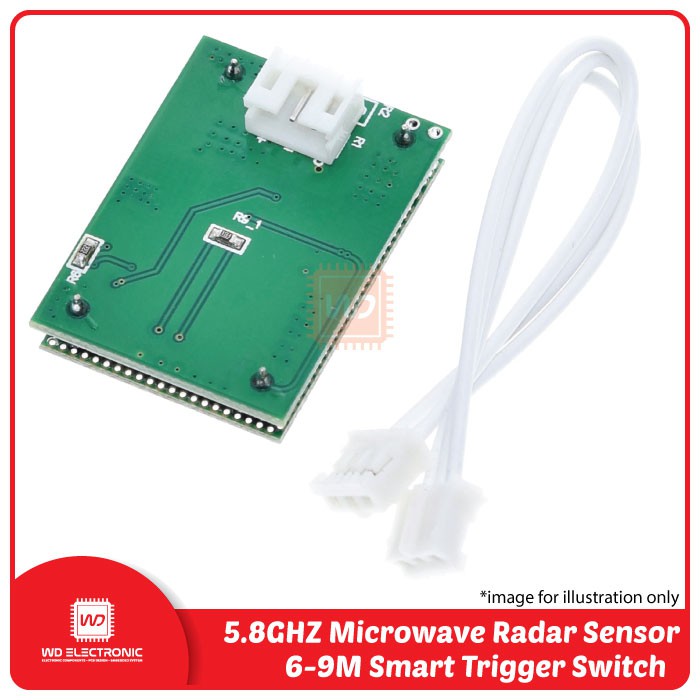

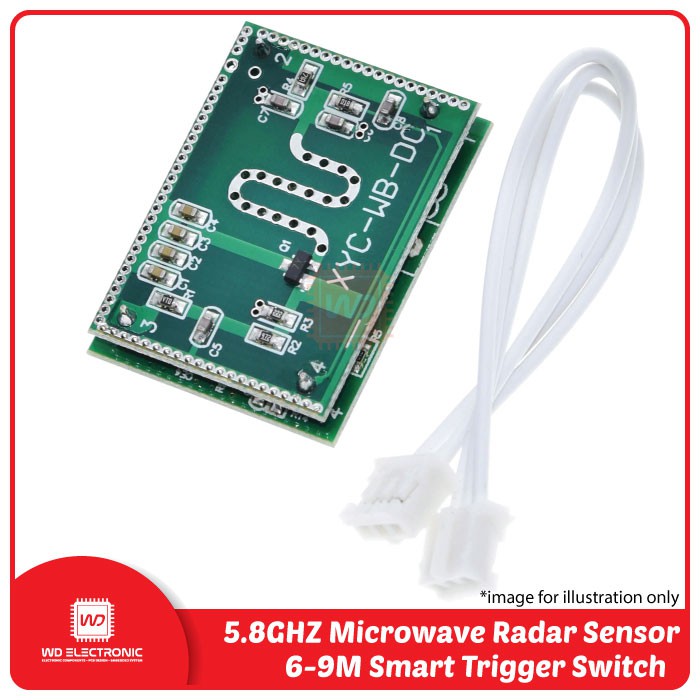

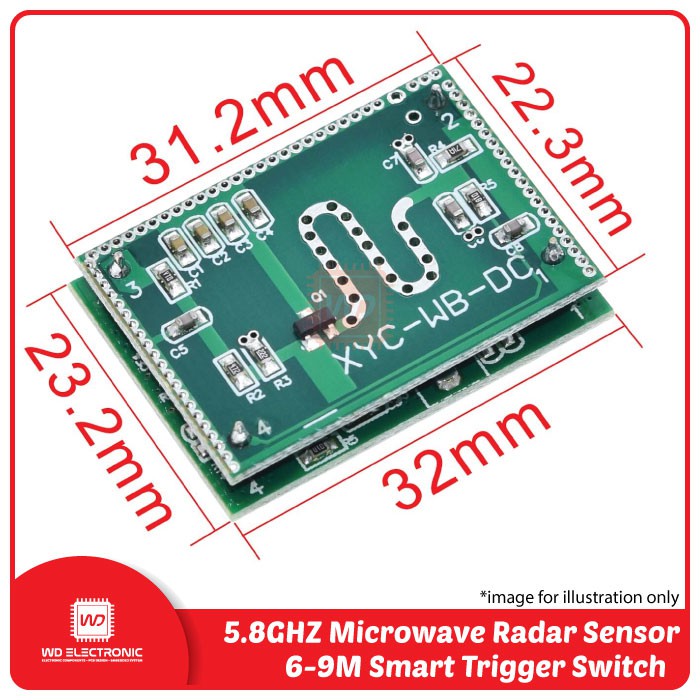

Radar 5.8GHZ Microwave Radar Sensor 6-9M Smart Trigger Switch module

Detail Radar 5.8GHZ Microwave Radar Sensor 6-9M Smart Trigger Switch module

Hi #RekanEasyWare ...
EasyWare Part#: EP000711

It uses Doppler radar technology, with auto-sensing capabilities to control other product,High sensitivity, sensor distance, reliability, wide angle sensor,Wide supply voltage range and other characteristics. Widely used in lighting situations,anti-theft alarm situations.

Features :
- Microwave sensors using planar antenna and receiving echo.
- The switch is active sensors.
- The sensors emit a high-frequency electromagnetic waves and receives their echo.
- The sensors detect changes within echo.
- The sensors detect tiny movement in detect range.
- Send signal to MCU and execution instruction.
- Signals are likely to be detected through the door, glass and thin walls.
- It will get best probe result if person or object when moving toward the sensor.
- This product is a strong anti-jamming capability, almost without wind, heat and other environmental factors foreign interference

Spesifications :
- Working voltage: 3.3-20VDC;
- Standby quiescent current: <3mA;
- Transmit power: <2mW;
- The working environment temperature: -20°~+80°;
- 5. Trigger: Repeat Trigger (default);
- The output signal: TTL level; high->3.3V/Low->0V;
- Detection angle: 360°(spherical) no dead ends;
- Detection range: 6-9 meters (when ordering optional). The default setting 8 meters;
- Working delay: 1 second to hundreds of seconds, the default setting 30S;

Notice :
- It is better away from wall about 3-4 meter.against get sensor from another side of wall;
- Open areas more responsive

Package :
- 1x 5.8GHZ Microwave Radar Sensor 6-9M Smart Trigger Switch module
