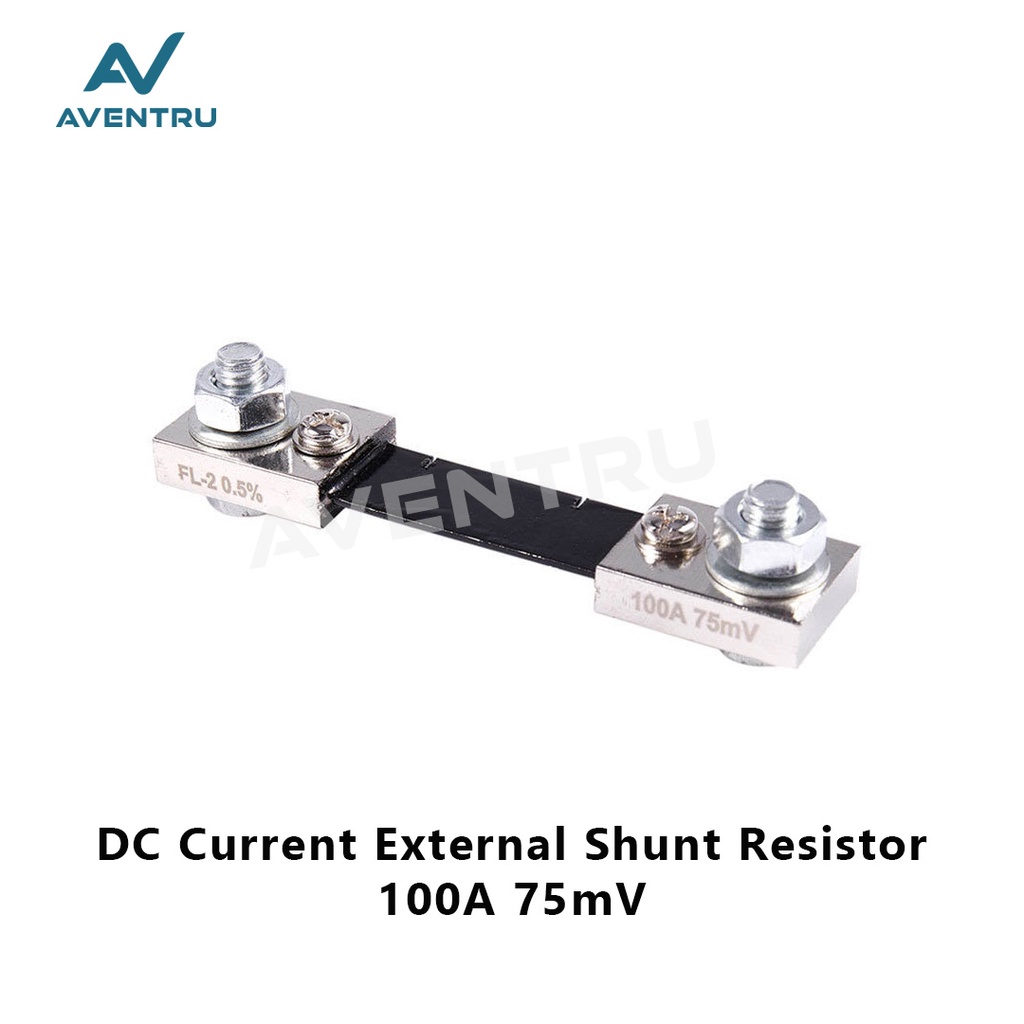

R-Shunt 100A Current Shunt Resistor FL-2 75mV Ampere Meter Ammeter Amper

Detail R-Shunt 100A Current Shunt Resistor FL-2 75mV Ampere Meter Ammeter Amper

The fixed setpoint shunt is a suitable the attached external shunt for measuring for DC current in 10kA less directly acting on the analog display instrument together with the use in order to expand the scope of the for DC current measurement, or sequentially circuit can be regarded as the current sampling with the standard resistors, a sampling voltage is measured with a current can be regarded as an analog signal

Specifications:
1.Accuracy level :2-4000A, 0.5 level5000-10000A 1 level.
2.Environmental conditions: -40 ~ +60 , the relative temperature ≤ 95% (35 ° C)
3.Overload performance: 120% of rated current, 2 hours
4.Voltage drop: 75mV
5.Load heat: Temperature rise changes stabilized, rated current of 50A does not exceed 80 Â ° C; rated current of 50A does not exceed 120 Â ° C.

Paket Berisi:
1x SHUNT CT RESISTOR 100A/75mV

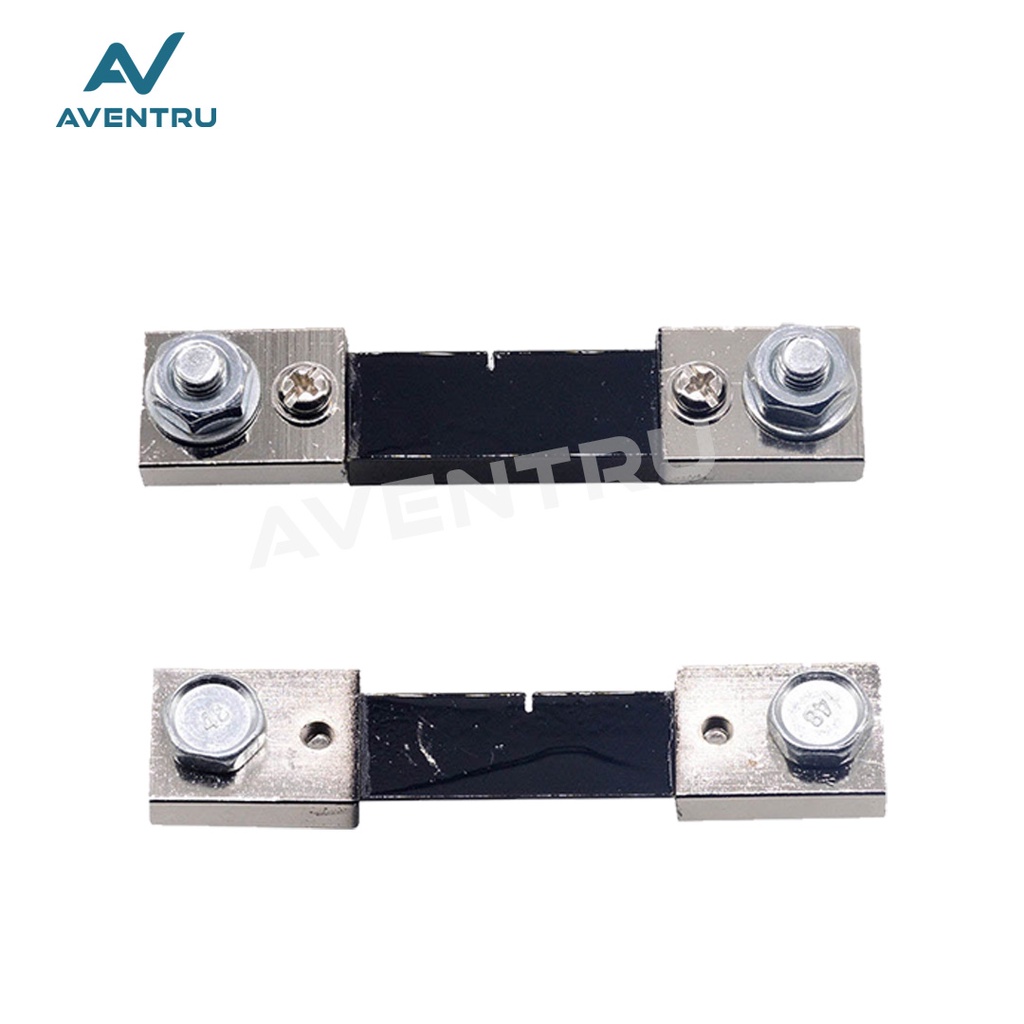

Gambar produk
