QUINTON Welding-Free Audio Crossover Filters Full Range Treble 2 Way Speaker Bass YLY-2088 Multi-Function Stable Adjustable Frequency Divider/Multicolor
Deskripsi singkat
Elektronik > Perangkat Audio & Speaker > Perangkat Audio & Speaker Lainnya > QUINTON Welding-Free Audio Crossover Filters Full Range Treble 2 Way Speaker Bass YLY-2088 Multi-Function Stable Adjustable Frequency Divider/Multicolor
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

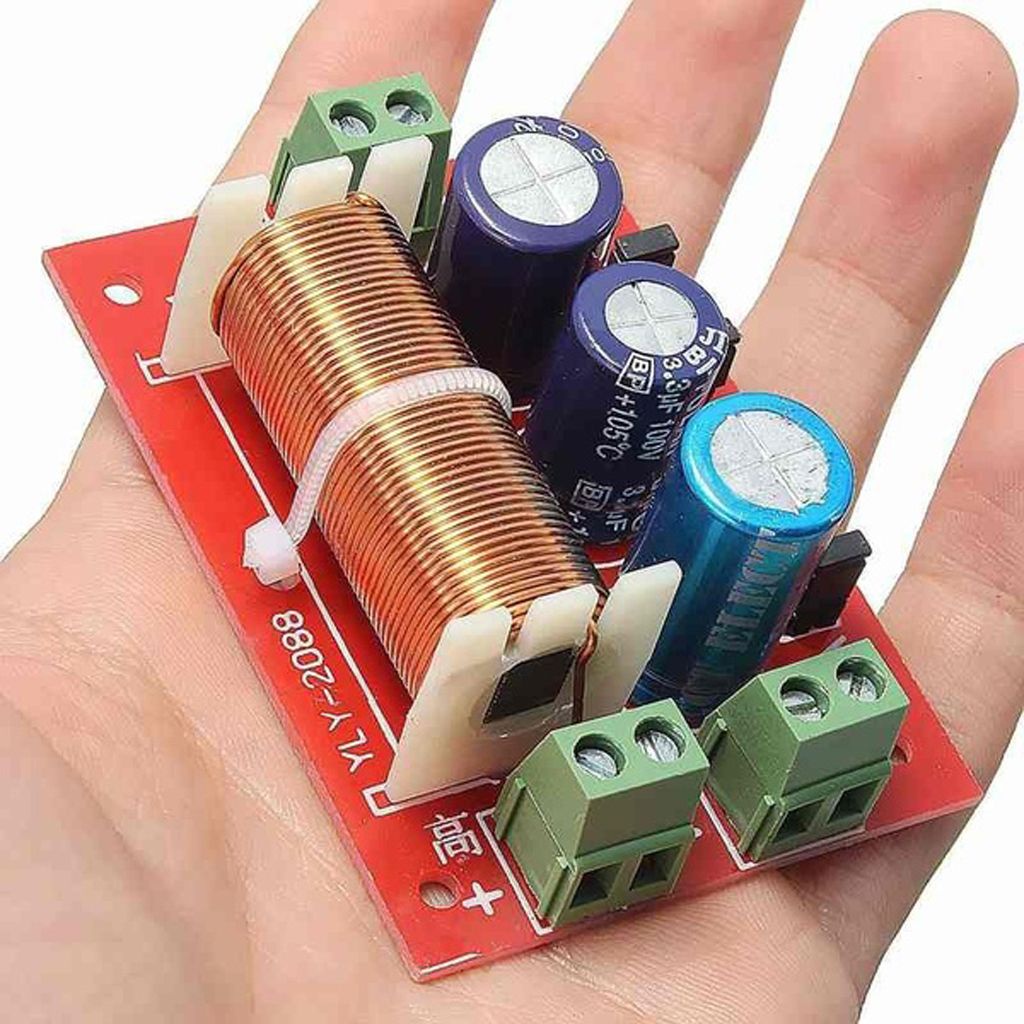

Detail QUINTON Welding-Free Audio Crossover Filters Full Range Treble 2 Way Speaker Bass YLY-2088 Multi-Function Stable Adjustable Frequency Divider/Multicolor
Impedance: 4-16
Diameter of the location hole: 3mm
Material: PCB board + Oxygen-free copper winding
Package Included:1 x Bass Frequency Divider
Frequency point: no positioning, decided by debugging
Power: 400w
Model: YLY - 2088

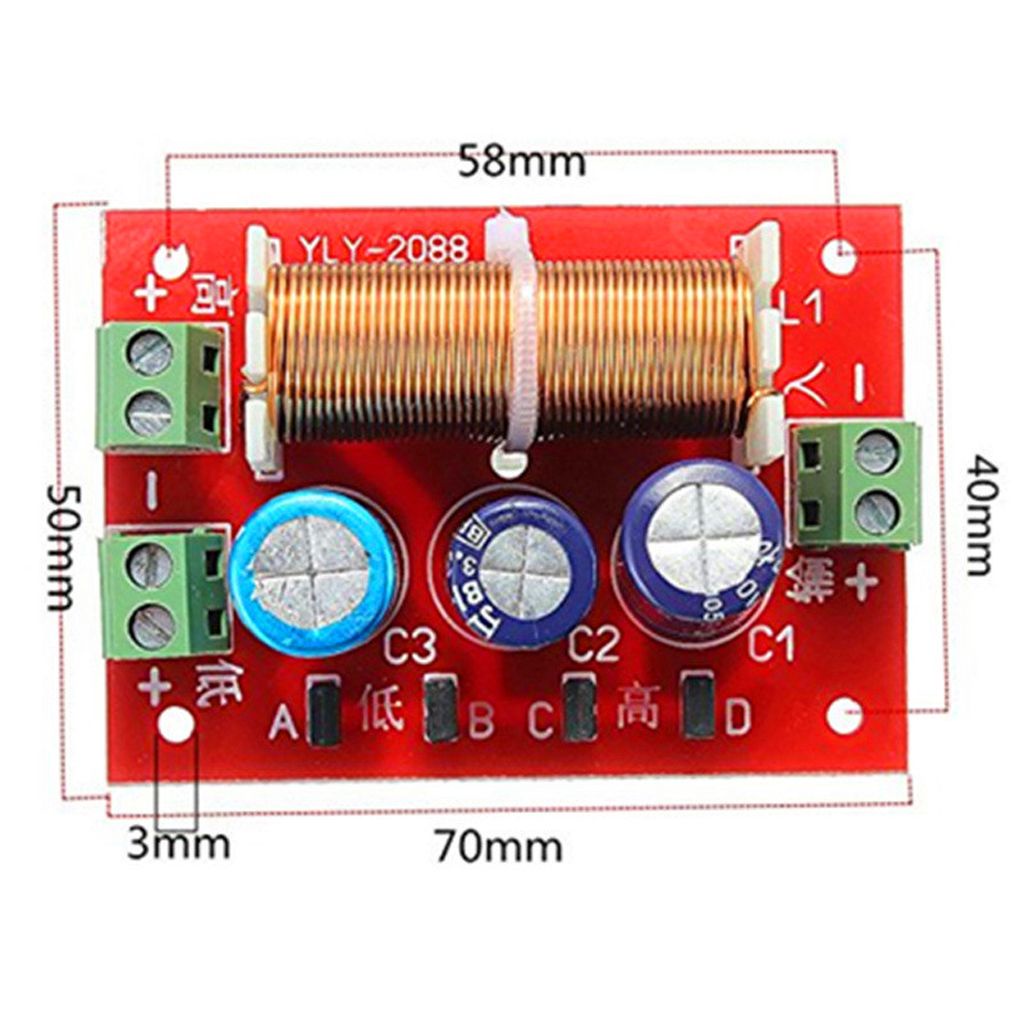

Size: 70mm*50mm

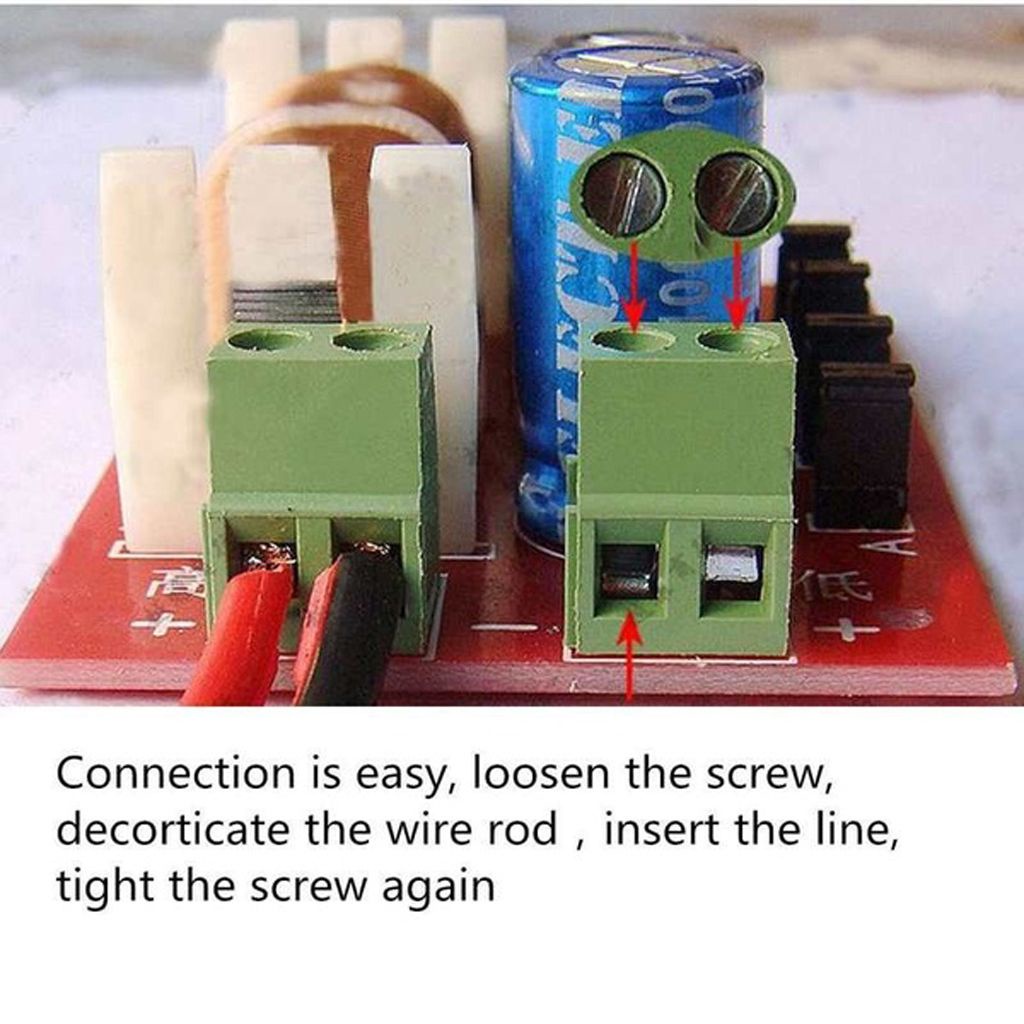

Usage:Band have terminal blocks, wiring is very convenient, such as add horn spring, can realize free welding. The input is marked on board box back or amplifier, High and low connect the treble and bass speaker, if it is a full range,then tight the high and low polar together, if it is a bass or treble single frequency, then just ignore another connectors.
Operational Process :Connect the line of frequency divider first, move out the divider, and then install the trumpet, tucked up the leak hole, play the music, and you can listen to effect while debugging. After the completion of the debugging to fix frequency divider into the box.
Gambar produk
