Detail Quick Fast Charging Board IP2312 CC/CV Mode 5V To 4.2V Type C

Hi #RekanEasyWare ...
EasyWare Part#: EP000694

Features:
3A charging current,can change the current through adjusting resistance;2 types of cut-off voltage can be optional(4.2V/4.35V).
3A polymer ternary lithium battery,quick charging board,provides efficient working effects.
Note: this product does not have the power indicator function, does not have the battery protection function, the store also has the lithium battery protection board and the power indicator board to sell.
Conversion efficiency: 3A 93%, 2A 94%, 1A 95% (data for reference only).

Specification:
- Main-control Chip: IP2312
- Type: Fast Charging Board
- Output: 4.2V,4.35V(optional)
- Input: 4.5-5.5V
- Charging Current: 3A
- Size: One Size
- 1.5x3cm(0.59×1.18in)

Package :
1 x Quick Fast Charging Board IP2312 CC/CV Mode 5V To 4.2V Type C

Gambar produk

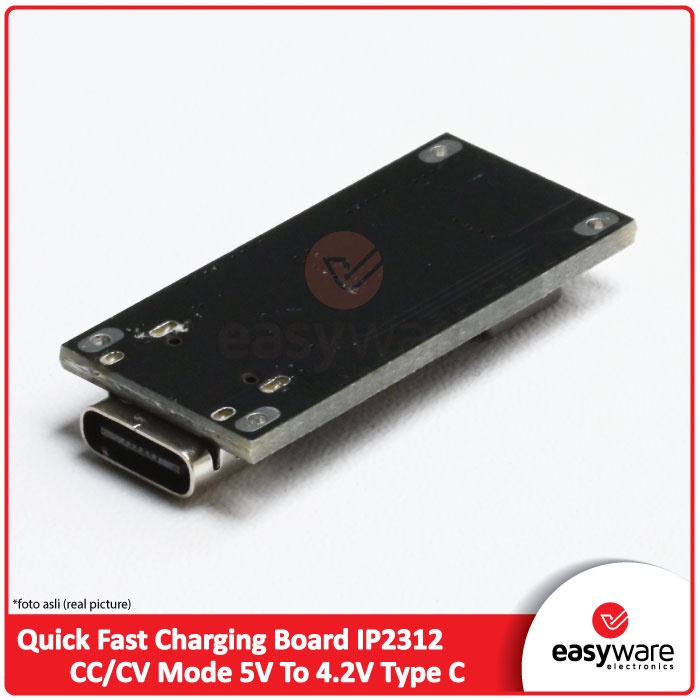

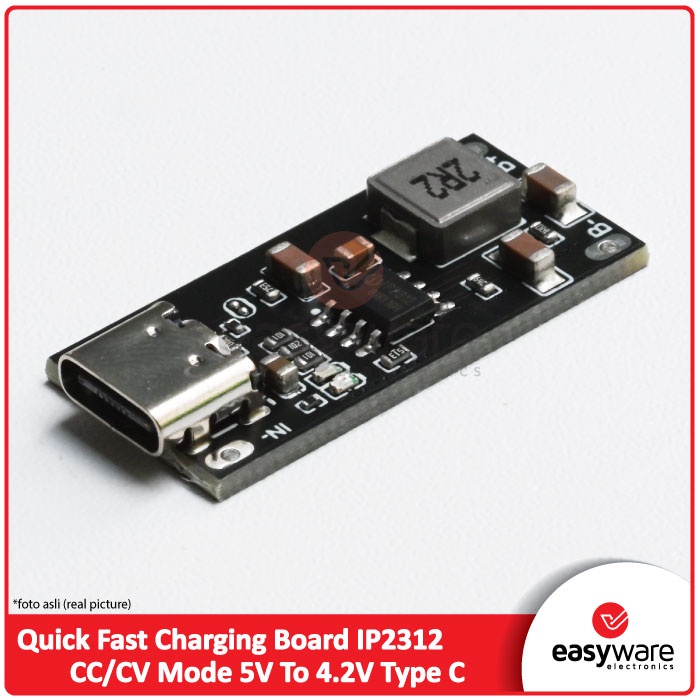

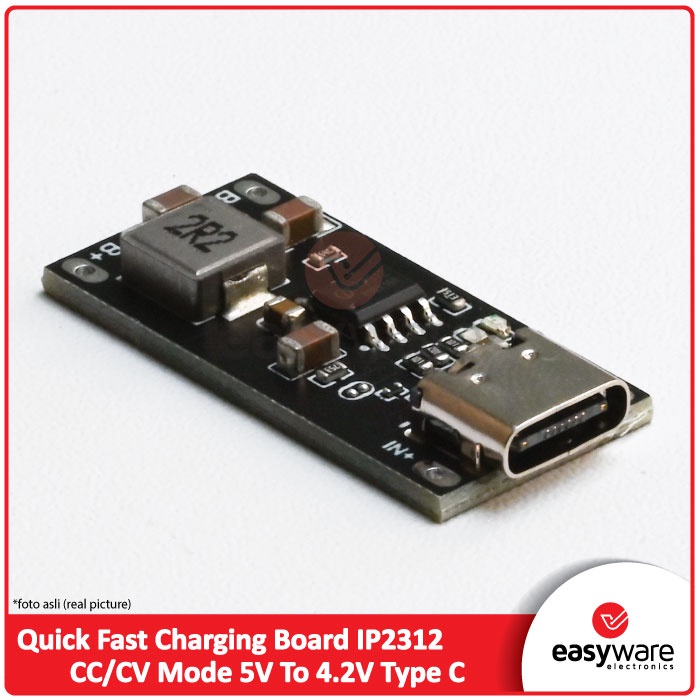

Quick Fast Charging Board IP2312 CC/CV Mode 5V To 4.2V Type C
