QRD1114 QRD 1114 Infrared Optical Sensor Photoelectric Switch IR OPTO

Detail QRD1114 QRD 1114 Infrared Optical Sensor Photoelectric Switch IR OPTO

Deskripsi QRD1114 QRD 1114 Infrared Optical Sensor Photoelectric Switch IR OPTO
Reflective Object Sensor
Features
Phototransistor Output
No-Contact Surface Sensing
Unfocused for Sensing Diffused Surfaces
Compact Package
Daylight Filter on sensor
Ordering Information
Part Number
Operating
Temperature
Package Top Mark Packing Method
QRD1113
-40 to +85C
Custom 4L QRD1113 Bulk
QRD1114 Custom 4L QRD1114 Bulk
Description
The QRD1113 and QRD1114 reflective sensors consist of
an infrared emitting diode and an NPN silicon phototrans-
istor mounted side by side in a black plastic housing. The
on-axis radiation of the emitter and the on-axis response
of the detector are both perpendicular to the face of the
QRD1113 and QRD1114. The phototransistor responds
to radiation emitted from the diode only when a reflective

object or surface is in the field of view of the detector

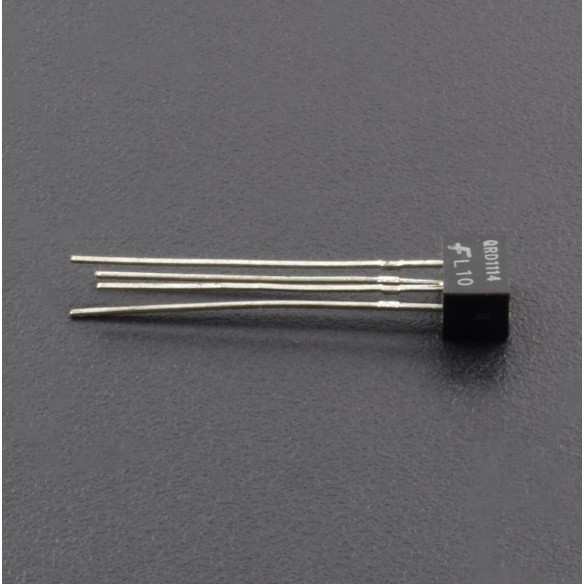

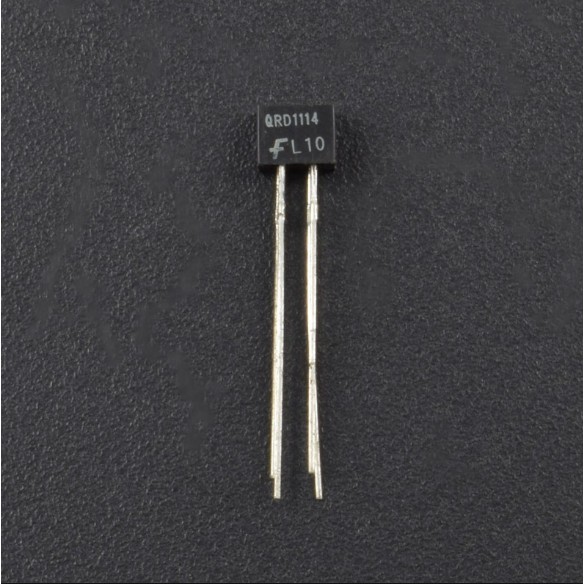

Gambar produk
