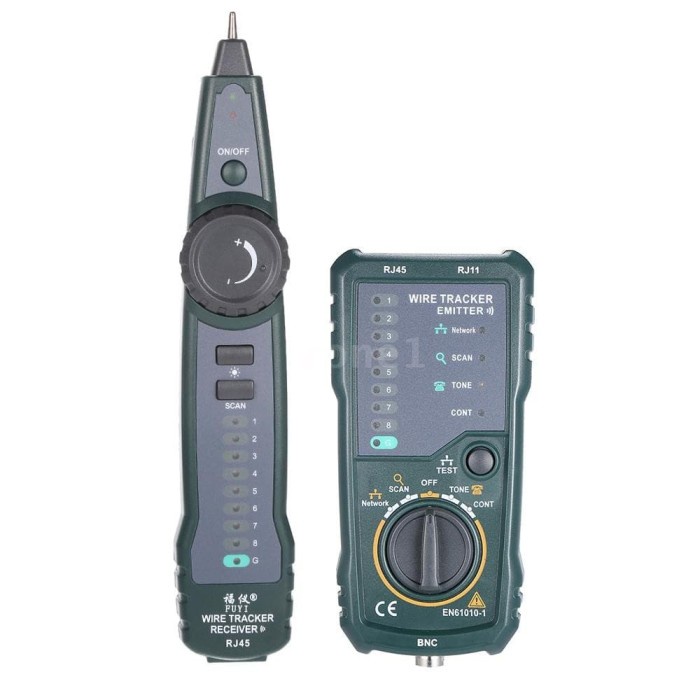

Qintech TS041 LAN Tester Wire-Tracker

Detail Qintech TS041 LAN Tester Wire-Tracker

Multi-function Wire Tracker Hand-held Cable Testing Tool
Our multi-function wire tracker is suitable for many testing purposes including cable tester, finding telephone wires and finding network wires. Find the cable or wire that you want to look for.

Features:
Can be used for: telecommunication engineer, wiring engineer and network maintenance engineer, etc.
Suitable for directly hunting for cables with RJ45 connectors, telephone wires with RJ11 connectors and BNC connectors.
Cable sorting is a process of detecting physical connections in a cable like open circuit, short circuit, wrong circuit and reversed circuit.
Use the emitter to detect line level or positive and negative electrode.
Two ways to detect connected states of circuits.
Note:
Please read the operating manual carefully and observe all the warnings and notes strictly.

Specifications:
Work Temperature:040the maximum 80% relatively humidity [no coagulation]
Storage Temperature:-1050, the maximum 80% relatively humidity [no coagulation,no battery]
Elevation: 2000 meters
Type of Anti-explosion: IP 40
Distance of Sending Signal: 100 meters
Battery: 31.5V/AAA (Emitter), 16F22/9V (Receiver)
Item Color: Green
RJ45 Cable Length: 16.8cm
Emitter Size: 13 * 6 * 3cm / 5.1 * 2.4 * 1.2in
Receiver Size: 19.5 * 3.5 * 3cm / 7.7 * 1.4 * 1.2in
Emitter Weight: 89.1g / 3.1oz
Receiver Weight: 72.2g / 2.5oz
Package Size: 23.5 * 15.2 * 4.5cm / 9.3 * 6.0 * 1.8in
Package Weight: 361g / 12.7oz

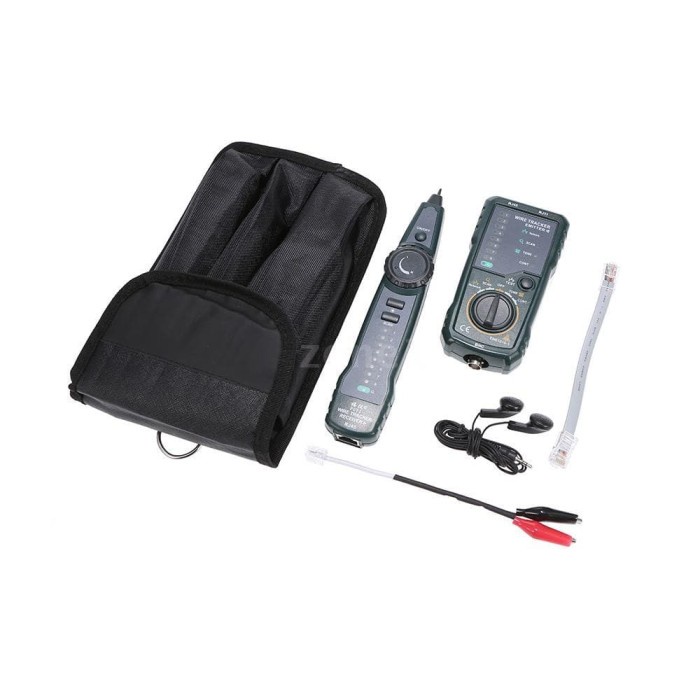

Package List:
1 * Emitter (Battery is not included.)
1 * Receiver (Battery is not included.)
1 * Alligator Clip Test Line
1 * User Manual
1 * RJ45 Cable (Random Color)
1 * Bag
1 * Earphone
