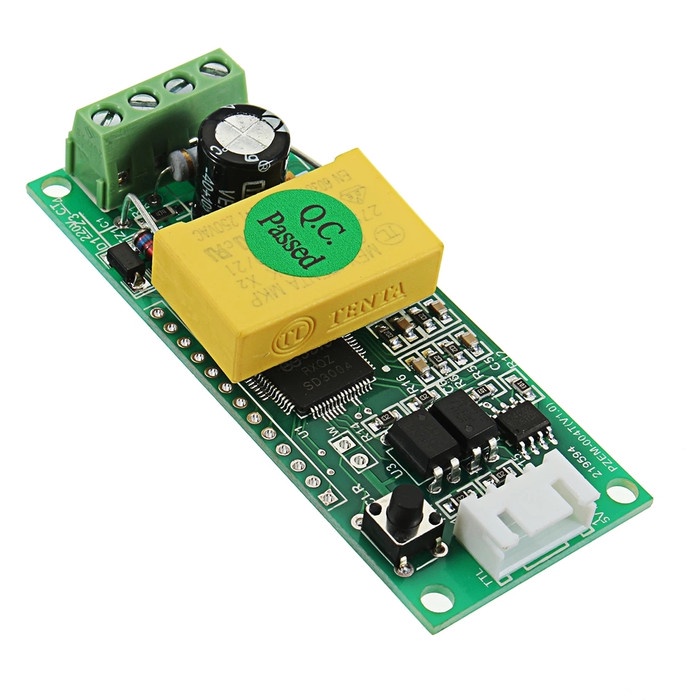

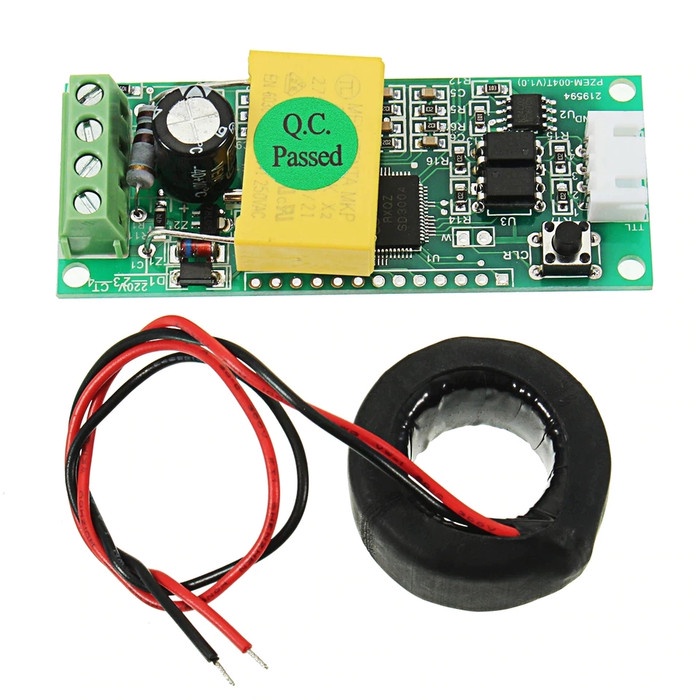

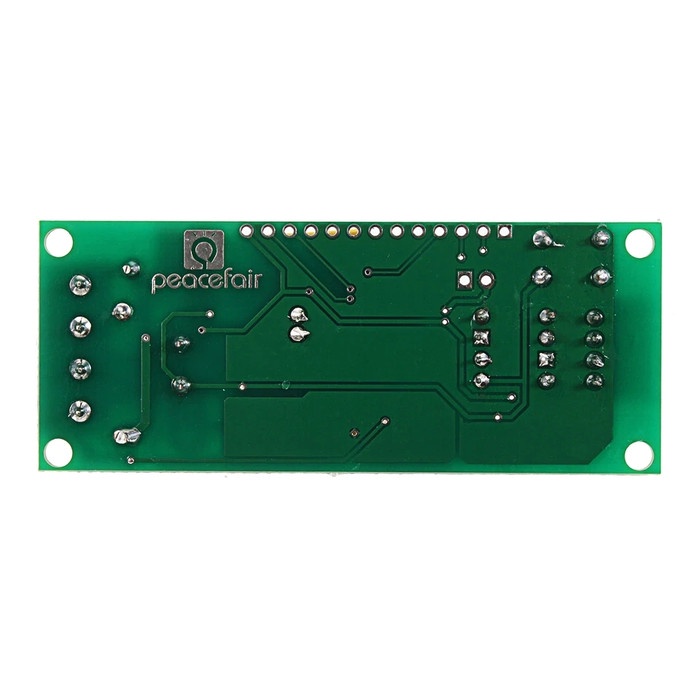

PZEM 004T Serial Wattmeter Energy Listrik 80-260v 220v AC Volt Ampere

Detail PZEM 004T Serial Wattmeter Energy Listrik 80-260v 220v AC Volt Ampere

Sensor Energy Listrik AC
Wattmeter (Voltmeter + Ammeter)

Display Format:

1. Power: measurement range 0 ~ 22kW

0 ~ 10kW within the display format of 0.000 to 9.999;

Within 10 ~ 22kW display format 10.00 ~ 22.00.

2. Power: measurement range 0 ~ 9999kWh

0 ~ 10kWh within the display format of 0.000 to 9.999;

10 ~ 100kWh within the display format of 10.00 to 99.99;

100 ~ 1000kWh within the display format of 100.0 to 999.9;

1000 ~ 9999kWh and above the display format from 1000 to 9999.

3. Voltage: Test Range 80 ~ 260VAC

Display Format 110.0 ~ 220.0.

4. Current: measurement range 0 ~ 100A

Display Format 00.00 to 99.99.

Button:

A built-in button on the panel, used to make electricity clear function, as shown in Figure 2.

Electricity clear method: Press ZERO key five seconds, then release the button!

Press again to clear the key, the data is cleared and exit charge cleared, cleared so far completed.

Serial Communication:

The module is equipped with a TTL serial data communication interface via the serial port

can be read and set the relevant parameters; but if you want a device with a USB or RS232

(such as computers) to communicate,then you need to be equipped with different TTL adapter

hardware board (USB communication needs with TTL to USB adapter plate; RS232 communication

needs with TTL to RS232 adapter plate), the adapter plate of the specific connection details can be found in FI
