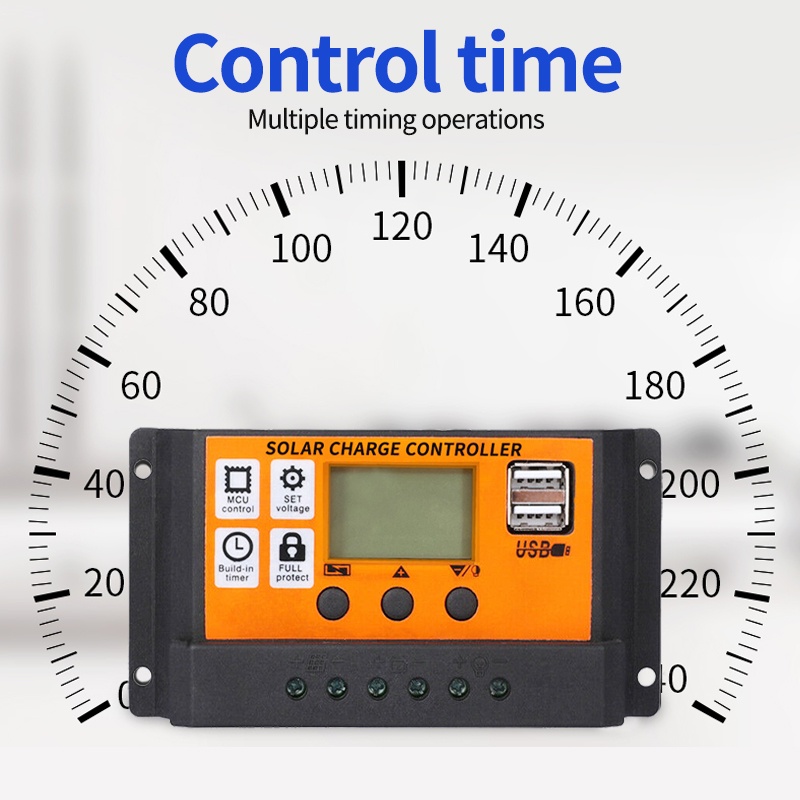

Detail PWM Solar Charge Controller LCD Display Dual USB Output 12V /24V
Feature：- Advanced maximum power point tracking (MPPT/PWM) technology, the efficiency is not less than 99.5%. High-quality components improve the system performance, and the maximum conversion efficiency is 98%. Super fast tracking speed and guarantee tracking efficiency.
- Large screen LCD display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control + delay control; adjustable charge and discharge parameters, with power-off memory and other functions.
- Dual USB output, the maximum current is 2.5A. Equipped with all necessary protection devices, the control parameters of the system are adjustable, easy to set up and operate. Built-in overheating, overcurrent, short circuit, open circuit protection, fault elimination, controller automatic recovery. Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat.
- Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection. Reverse current protection, low calorific value, with self-recovery function, will not damage the controller.
- Real-time display of temperature, charging current and discharge current. Current autofocus MPPT tracking charging, high charging efficiency, charging process does not stop detection, two-way focus tracking.
Suitable for lead-acid batteries
INSTALLING ORDER
1. Connect AKI / BATTERY to the Controller
2. Connect the SOLAR PANEL
3. Connect Load
** ORDER REMOVES
1. Remove the solar panels first
2. Remove the battery / battery from the controller
NOTE:
1. The controller MUST be connected to the battery first. If not, IT CAN BROKE !!!
2. Solar Panel must not be connected without a battery, otherwise it CAN BE DAMAGED
3. Install the plus (+) and Minus (-) cables, do not turn them upside down
4. Before sending the goods have ascertained their function.
