PWM Solar Charge Controller 30 Ampere

Detail PWM Solar Charge Controller 30 Ampere

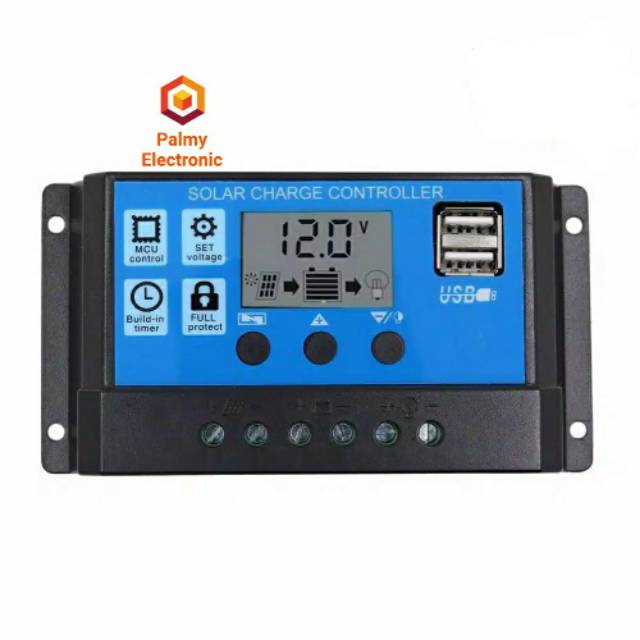

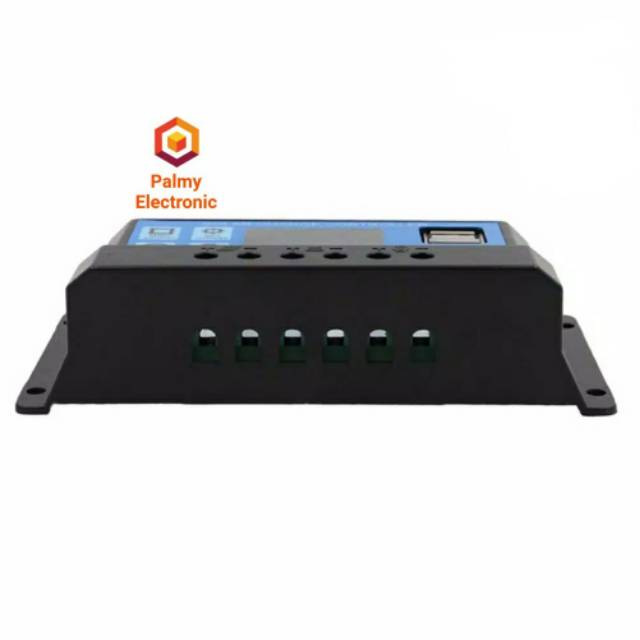

12V/24V HD LCD Auto Work Solar Charge Controller PWM Dual USB Output Solar Cell Panel Charger Regulator
Descriptions:
This controller is a 12V / 24V automatic solar controller, the first installation, make sure that the battery has enough voltage, so that the controller can correctly identify the type of battery.

Features:
The large screen LCD shows that the parameters of charging and discharging can be adjusted.
Complete 3 stage PWM charging management.
Built-in over-current/short-circuit protection, open-circuit protection, reverse protection, are automatic recovery type, do not damage the controller.
Double MOS anti backflow circuit has extremely low calorific value.

Specifications:
Material: PC
Size: 149*78*35mm/5.87*3.07*1.38"
Weight: 120g
Adaptive voltage: 12V/24 V
Current: 30A.
Functions: LCD display; dual USB charging interface; power display; voltage display; charging and discharging parameters can be adjusted; optical control + delay can be adjusted;

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.


Included:

1 XSolar Charge Controller
