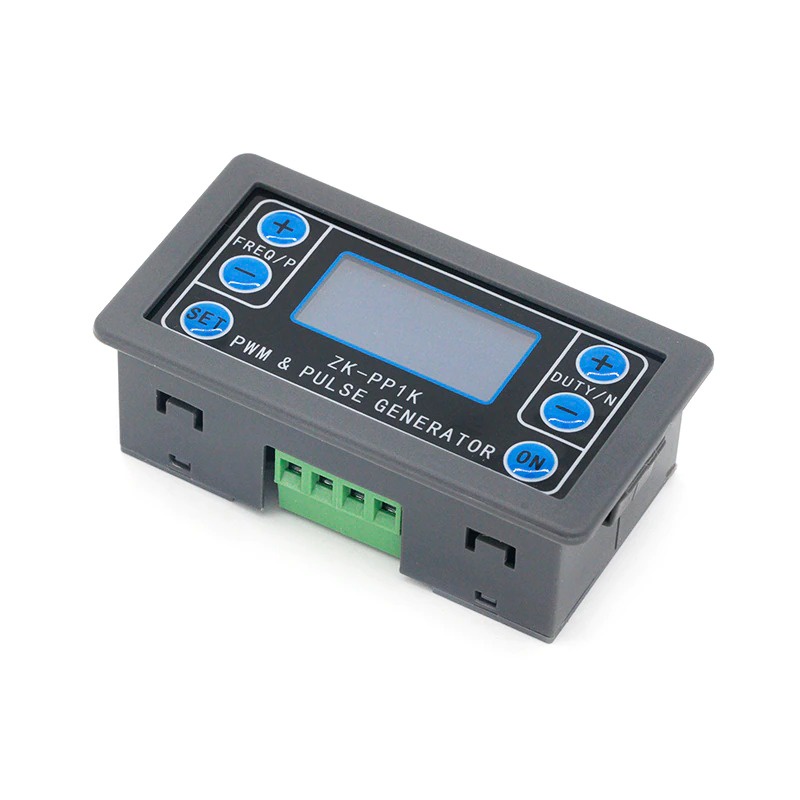

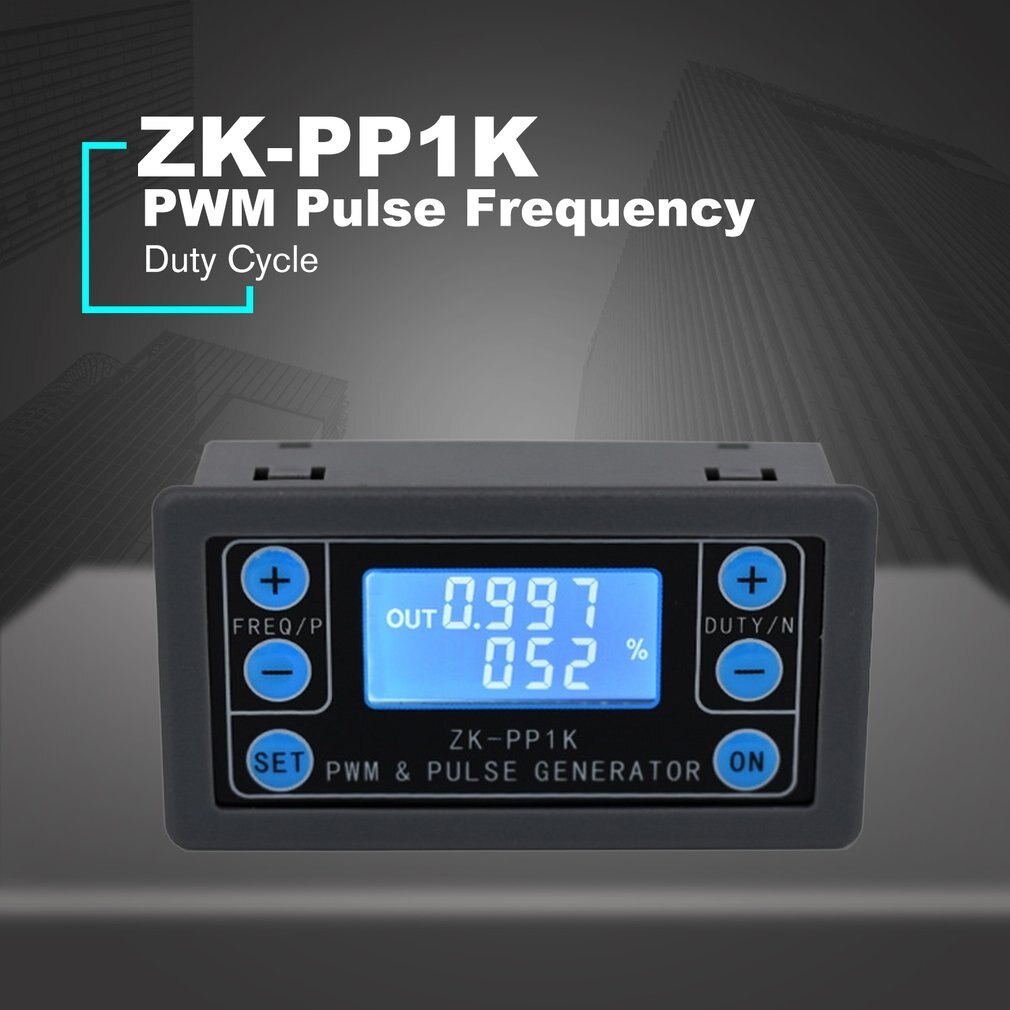

PWM Signal Pulse Generator Dual Mode 1Channel 150KHz LCD ZK-PP1K ZKPP1K

Detail PWM Signal Pulse Generator Dual Mode 1Channel 150KHz LCD ZK-PP1K ZKPP1K

Description:
- This signal generator is a device that provides electrical signals at a variety of frequencies, square wave, pulse and output levels.

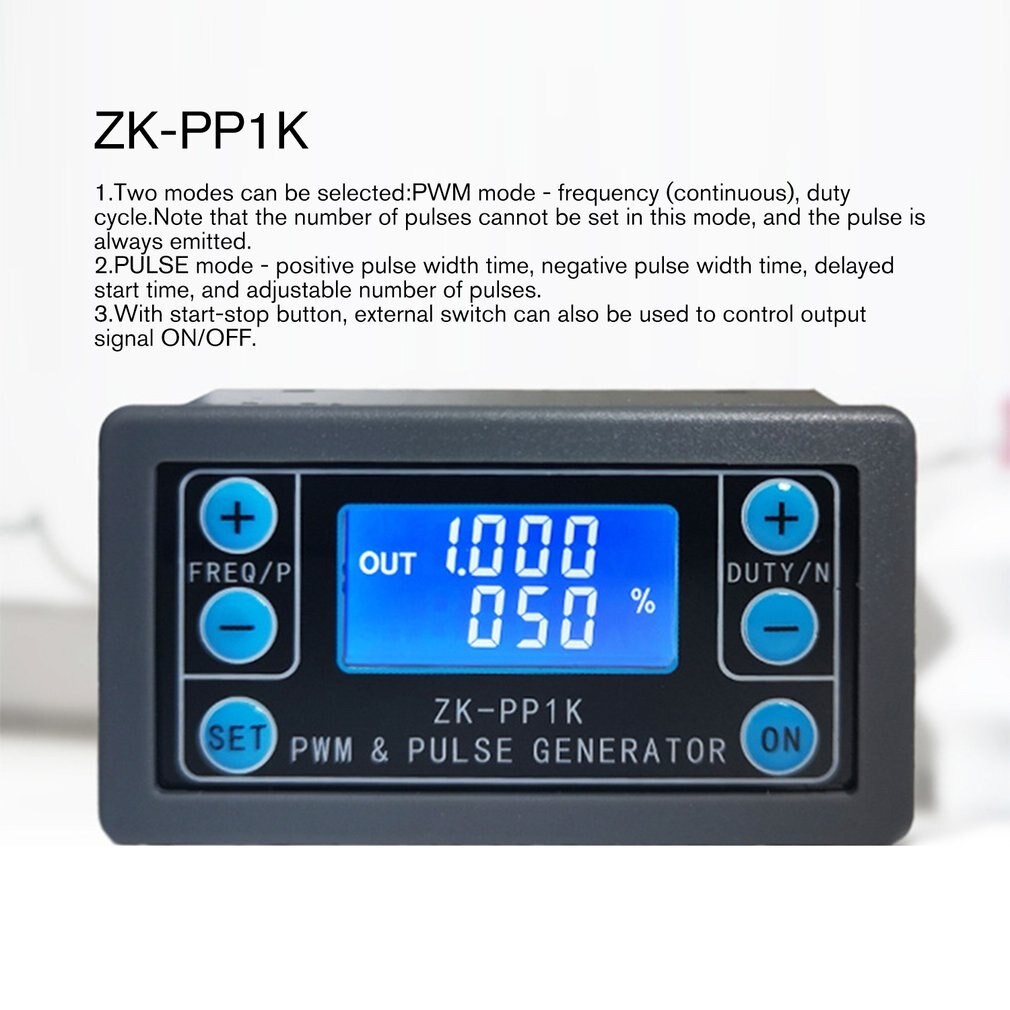

- It supports dual mode: PWM mode and PULSE mode.
- It is used as a signal source or excitation source for testing.
- Widely used in production practice and technology.

Feature:

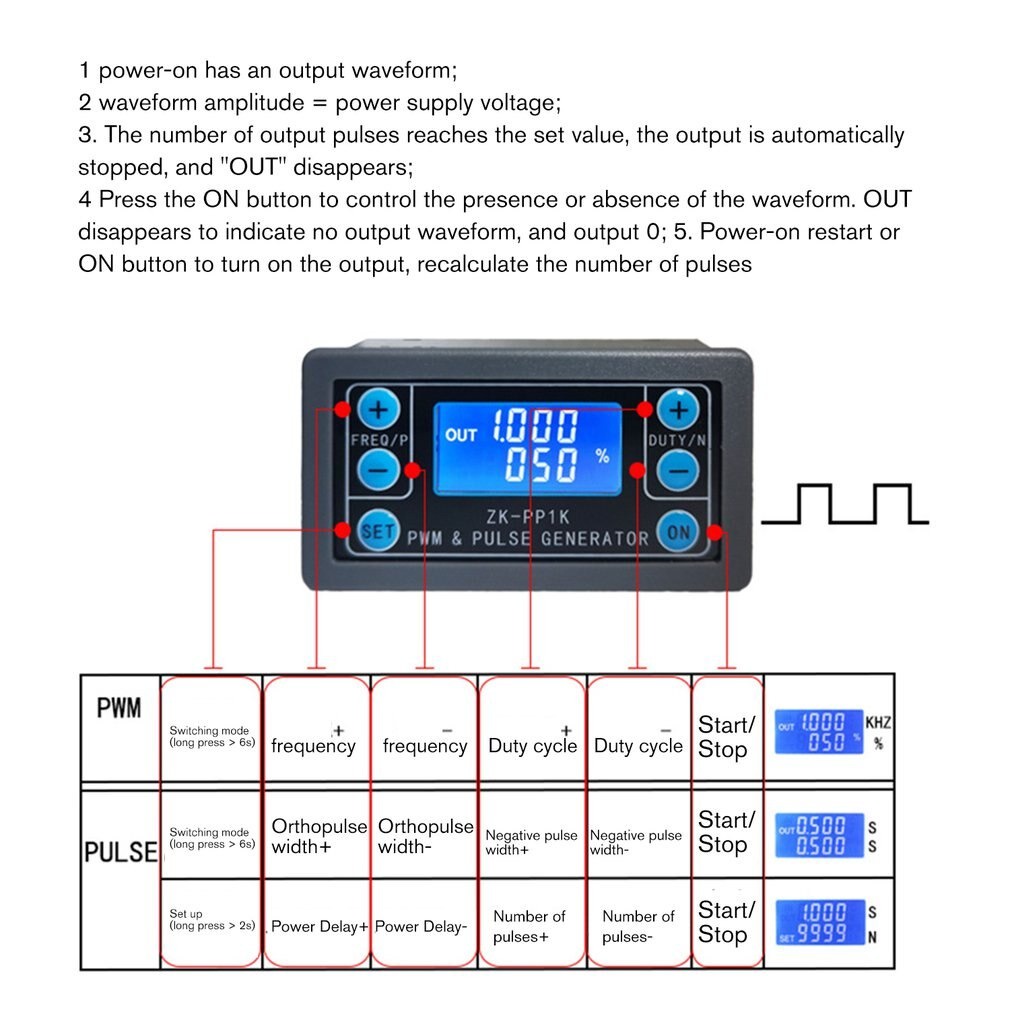

Dual mode: PWM mode and PULSE mode
LCD high definition display
Support frequency adjustment
Support duty cycle adjustment
High precision detection
Support power-down memory function
1-Channel signal output
Support reverse protection

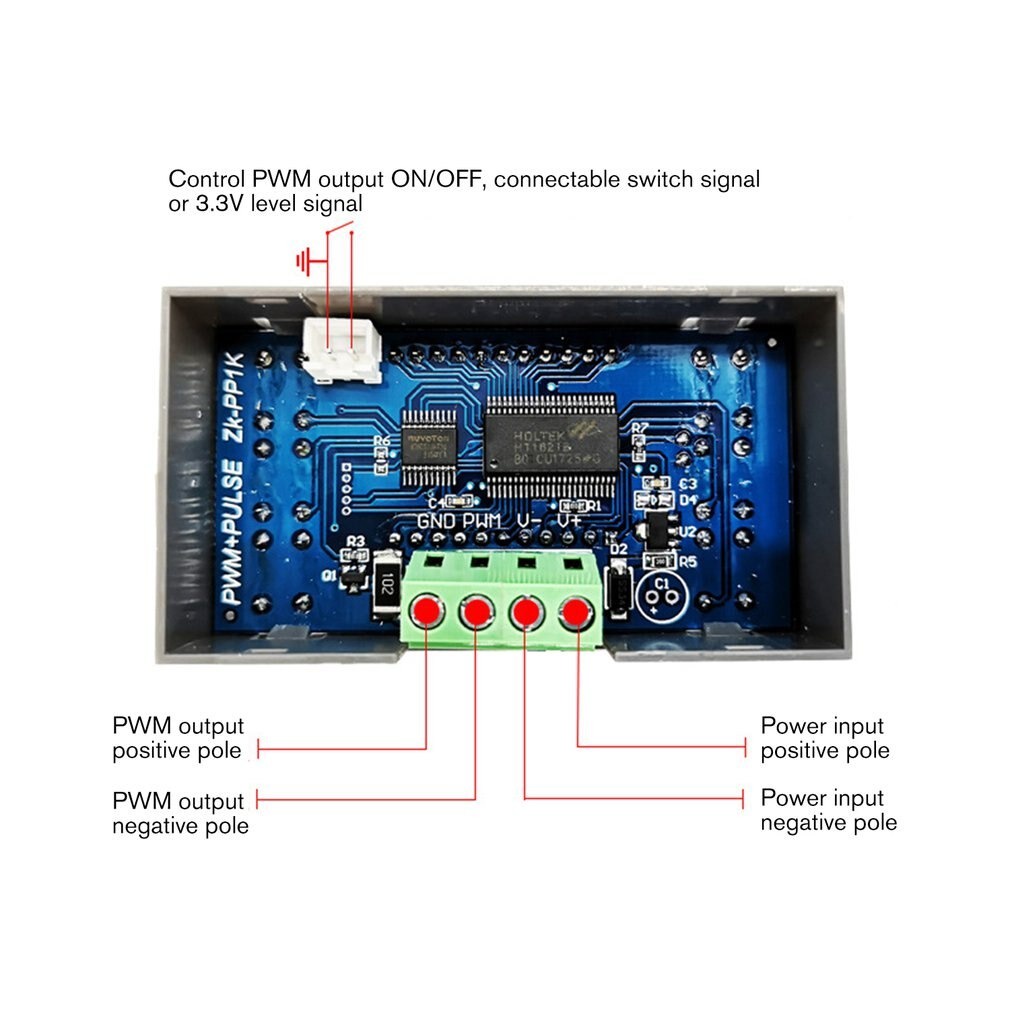

Support enabled/disabled output

Parameter:
Model: ZK-PP1K
Work voltage: DC 3.3V -30V
Frequency range: 1Hz~150KHz
Frequency accuracy: 2%
Duty cycle range: 0.00%-100%
Output Current: <30mA
Number of pulses: 1~9999 or Infinite
Delay time: 0.000s~9999s
Pulse width: 0.000s~9999s
Time accuracy: 1ms
Output amplitude: Same to input voltage
Work Temperature: -20 -85℃
Work Humidity: 0% -95%RH
Size: 79*43*26m

Package Included:
1 * Signal Generator
