Detail PWM DC 10A Speed Controller Motor Dimmer LED Controller 400W 12-40V

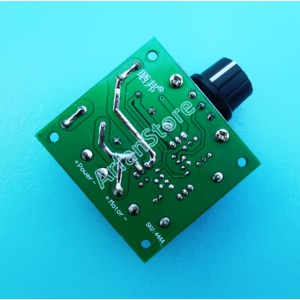

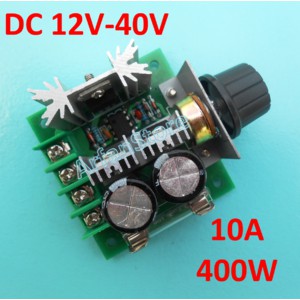

PWM DC 10A Speed Controller Motor Dimmer LED Controller 400W 12-40V

Control the speed of a DC motor with this controller.
High efficiency, high torque, low heat generating.
With reverse polarity protection, high current protection.

Spesifikasi:
Input: DC 12V - DC 40V.
Power: 0.01 - 400W.
Static Current: 0.02 A ( Standby ).
PWM Duty Cycle: 10% -100%.
PWM Frequency: 13 KHz.
Dimensi: 60*56*27mm

Paket:
1 buah PWM 10A Speed Motor Control
