PWM 5A DC 4.5-35V 90W Motor Speed Dimmer Controller Lampu LED Dimer

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > PWM 5A DC 4.5-35V 90W Motor Speed Dimmer Controller Lampu LED Dimer
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail PWM 5A DC 4.5-35V 90W Motor Speed Dimmer Controller Lampu LED Dimer

Untuk informasi harga grosir termurah silahkan chat admin kami.
Mini 5A 90W PWM 5-28V DC-DC Motor Speed Controller Module Adjustable Speed Regulator Control Governor Switch
Specification:
Working voltage: DC5V-28V
Output current: 0-5A
Output power: 90W (maximum)
Static current: 7uA (standby state)
PWM duty ratio: 1%-100%
PWM frequency: 20KHz
Product size: 30mmx26mmx14mm/1.18x1.02x0.55''
Product weight: 14g
Package size: 95mmx60mmx14mm/3.74x2.36x0.55''
Packing weight: 15g

Warm Tips:
1. DC motor governor input is DC not directly connected to AC otherwise it will burn out.
2. DC positive and negative terminals do not reverse otherwise the governor may be damaged.
3. The motor can be divided into positive and negative directions. When the direction of operation is not consistent with the expectation the direction can be changed by adjusting the line order.

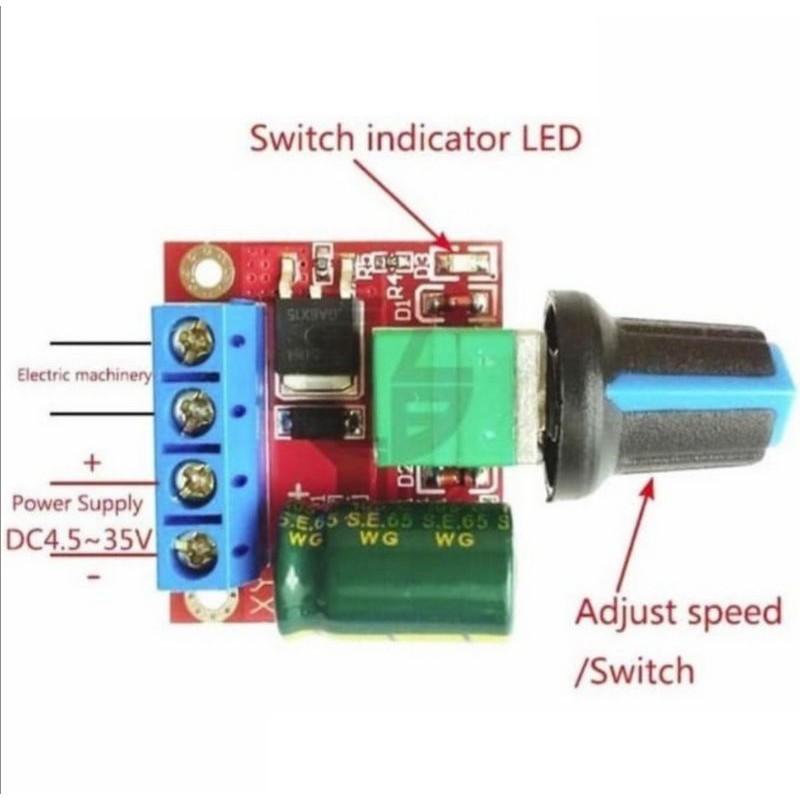

4. Adjusting the potentiometer knob can change the duty cycle of the governor and change the speed of the motor.

Note:
Please allow 1-3cm differs due to manual measurement.
Due to the different display and different light the picture may not show the actual color of the item. Thanks for your understanding.

Included:
1 x PWM DC Motor Speed Controller
