PWM 5A DC 4.5-35V 90W Motor Speed Dimmer Controller Lampu LED Dimer

Spesifikasi:
Tegangan Input: DC 4.5V-35V
Output current: 0-5A
Power: 90W (maximum)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 26mm x 14mm (Without Handle)

DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes

Paket:
1 buah Dimmer DC 90W 4-5-35V

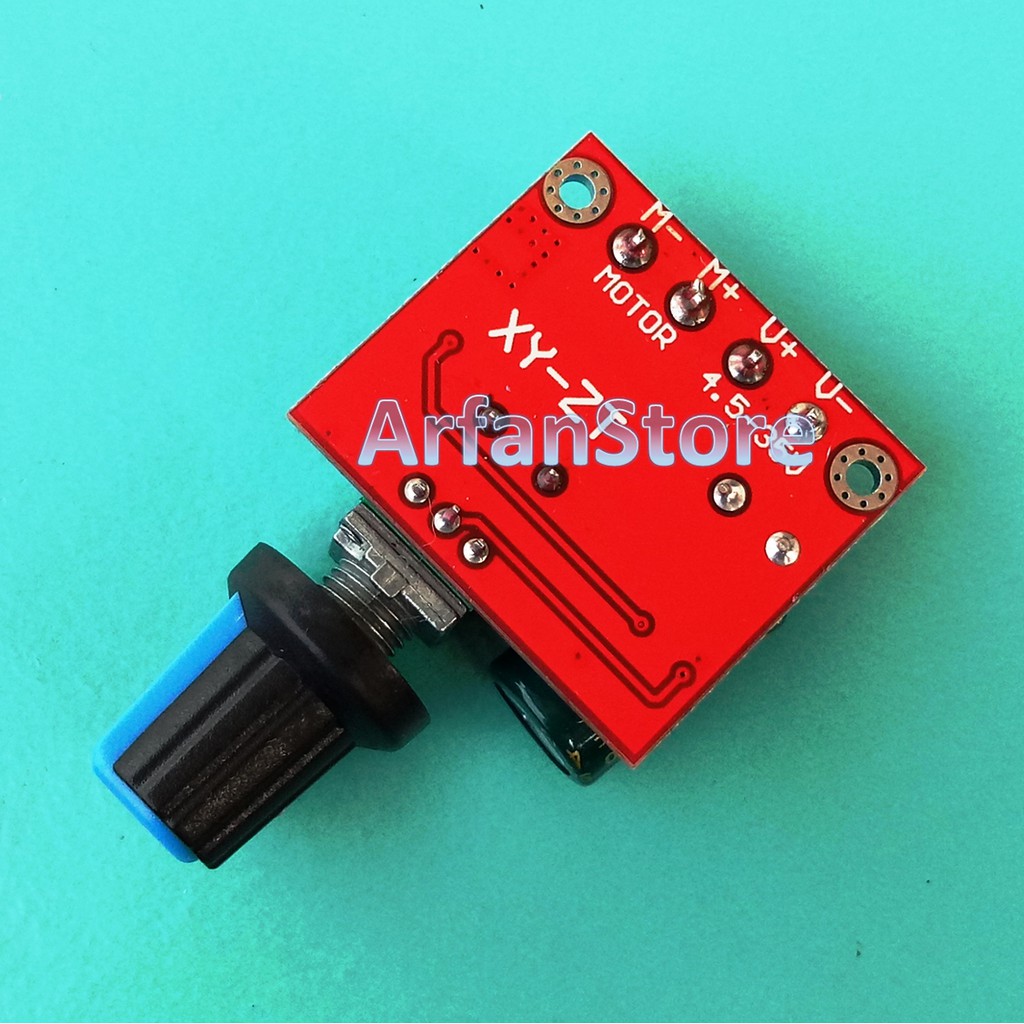

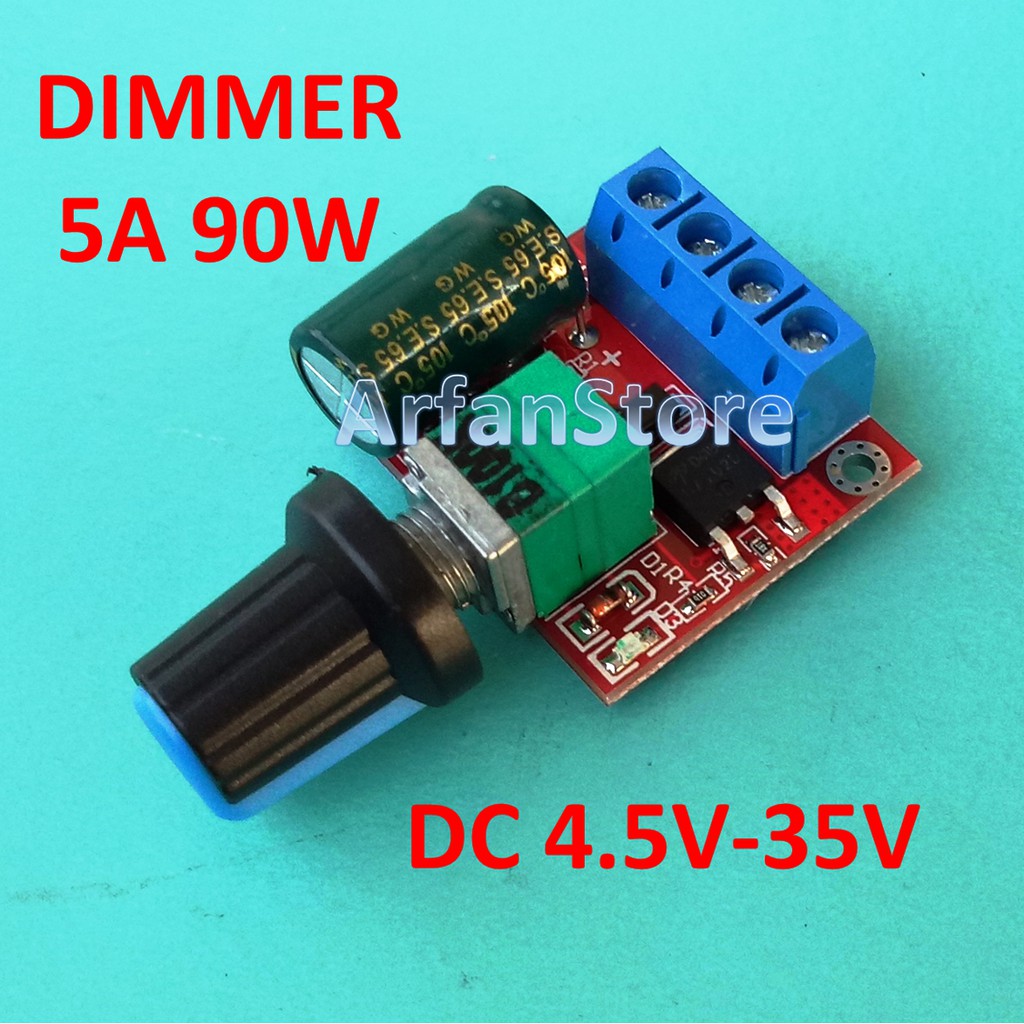

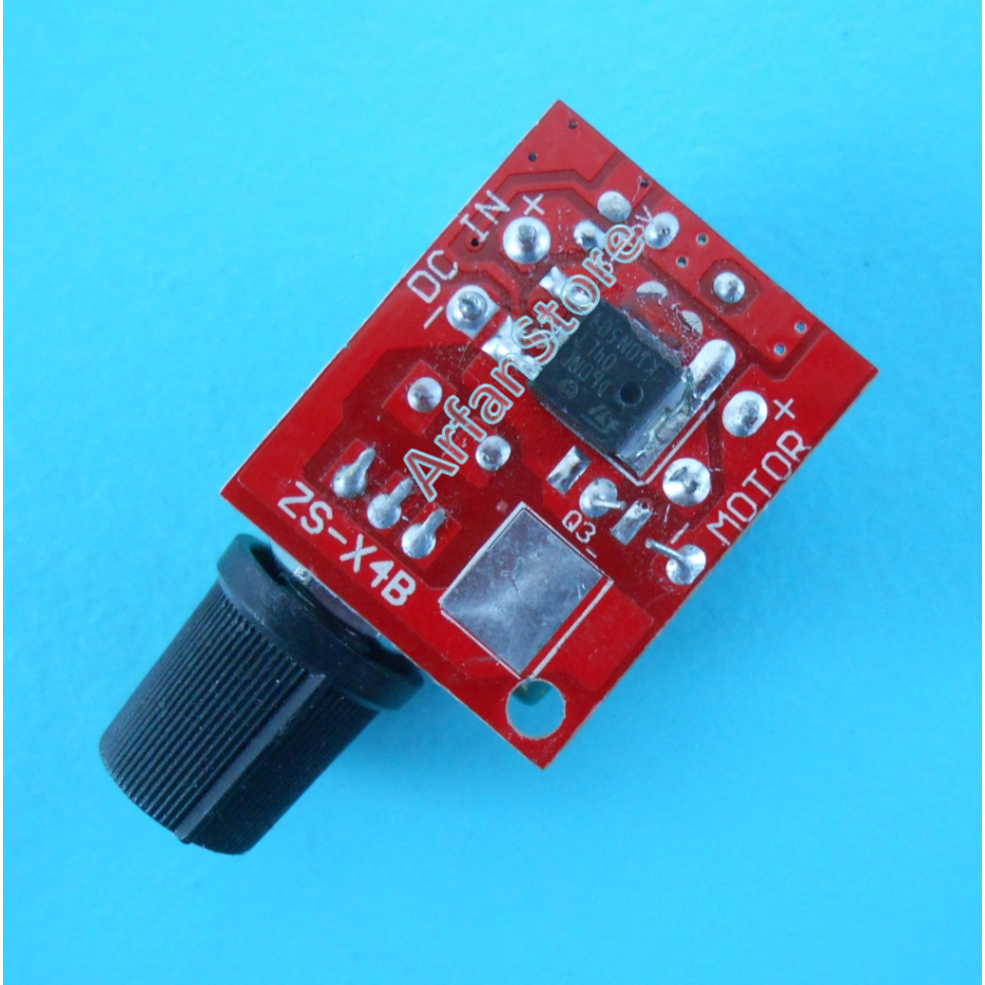

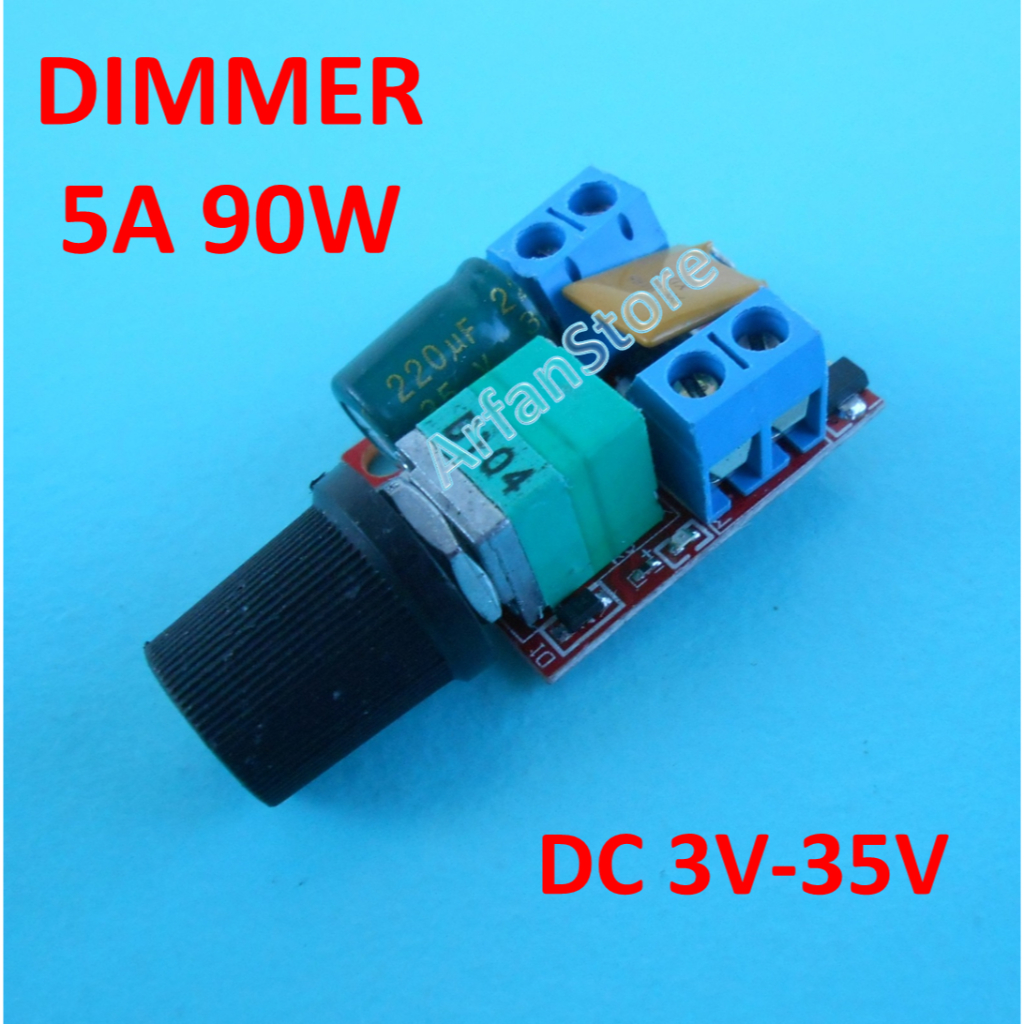

Gambar produk
