Push on Button Stainless Power LED Hijau 16mm 9-24v Momentary Green

Detail Push on Button Stainless Power LED Hijau 16mm 9-24v Momentary Green

Push button stainless 16mm dengan led hijau bila ditekan akan mengunci on dan tekan lagi untuk off. Cocok untuk tombol power.


Spesifikasi:
Operating Voltage: 9V-24V
Mounting hole size: Φ16mm
Switch rated current: 5A
Switch combination: 1NO1NC, 2NO2NC
Operation type: self-duplex
Switch type: slow-acting double contacts
Contact resistance: ≤50mΩ
Insulation resistance: ≥1000mΩ
Insulation strength: 2000VAC
Ambient temperature: -20℃ ~ +55℃
Mechanical life: more than 1 million times ＞1
Electrical life: more than 200,000 times ＞0.2
Nut torque: 5~14N.m
Operating pressure: ≤4N
Operating stroke: ≤2mm
Shell/Button: brass nickel plated
Base: Engineering plastic
Contact: silver alloy

Penjelasan NO atau NC:
1. NO (Normally Open)
Bila digunakan kaki NO dan C: dipencet on, dipencet lagi off
2. NC (Normally Close)
Bila digunakan kaki NC dan C: dipencet off, dipencet lagi on

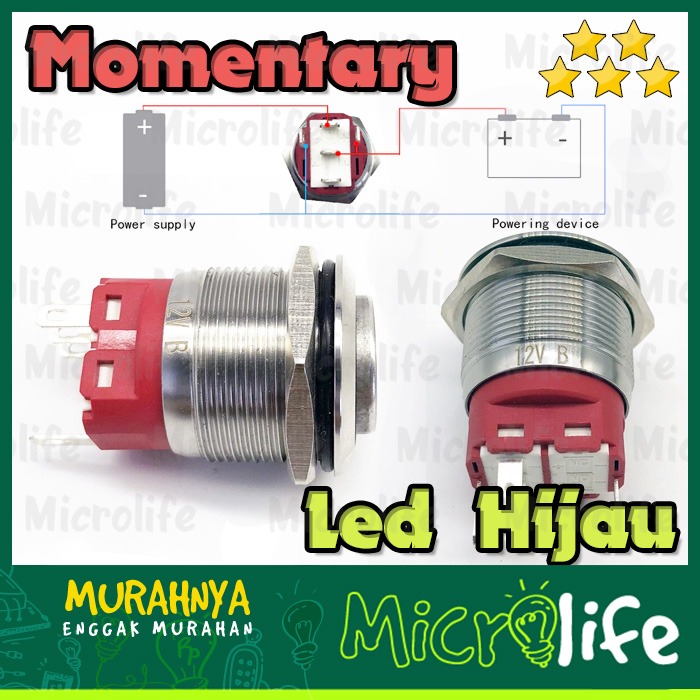

Alternatif cara menghidupkan lampu:
1. Lampu hidup permanen
Sambungkan kaki + dan - ke 3-12V DC secara langsung
2. Lampu hidup jika tombol ditekan (default OFF)
Sambungkan kaki + ke NO, kaki - ke negatif 3-12VDC, kaki C ke positif 3-12VDC
3. Lampu hidup jika tombol dilepas (default ON)
Sambungkan kaki + ke NC, kaki - ke negatif 3-12VDC, kaki C ke positif 3-12VDC

Isi Paket:
1x Push on Button Stainless Power LED Hijau 16mm 9-24v Momentary Green

#BUTTON #SWITCH

Gambar produk
