Pulse oxymeter / Finger pulse oxymeter / Finger tip general care spo2

Detail Pulse oxymeter / Finger pulse oxymeter / Finger tip general care spo2

FEATURES

~ Integrated with SpO2 probe and processing display module
~ Small in volume, light in weight and convenient in carrying
~ Operation of the product is simple, low power consumption
~ SpO2 value display
~ Pulse rate value display, bar graph display
~ Pulse waveform display
~ The display mode can be changed
~ Screen brightness can be changed
~ Low-voltage indication : low-voltage indicator appears before working abnormally which is due to low-voltage
~ Automatically power off function : when the device is under the state of measuring interface. It will automatically power off within 5 seconds if the finger falls out of probe
~ Display format can be saved after power off
__________________________________________________

SPESIFICATION

~ Display Mode : 0.96" Dual-color OLED display
~ Screen Resolution : 128 64
~ SpO2 Measuring Range : 0%100%, (the resolution is 1%)
~ Accuracy : 70% ~ 100% : +/- 2%, Below 70% unspecified.
~ PR Measuring Range : 30bpm ~ 250bpm, (the resolution is 1bpm)
~ Accuracy : 2bpm or 2% (select larger)
~ Measurement Performance in Weak Filling Condition : SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is 4%, pulse rate error is 2 bpm or 2% (select larger)
~ Resistance to surrounding light : The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less that 1%
~ Power Consumption : less than 30mA
~ Voltage : DC 2.6V~3.6V
~ Power Supply : 1.5V (AAA size) batteries 2
~ Battery working hour : Theoretical number is 32 hours
~ Safety Type : Interior Battery, BF Type
~ Dimension : 57(L) 31(W) 32(H) mm
~ Weight : About 50g
__________________________________________________

CONTENTS

~ Hanging Rope
~ User Manual
~ Main Unit
~ 2 AAA Battery

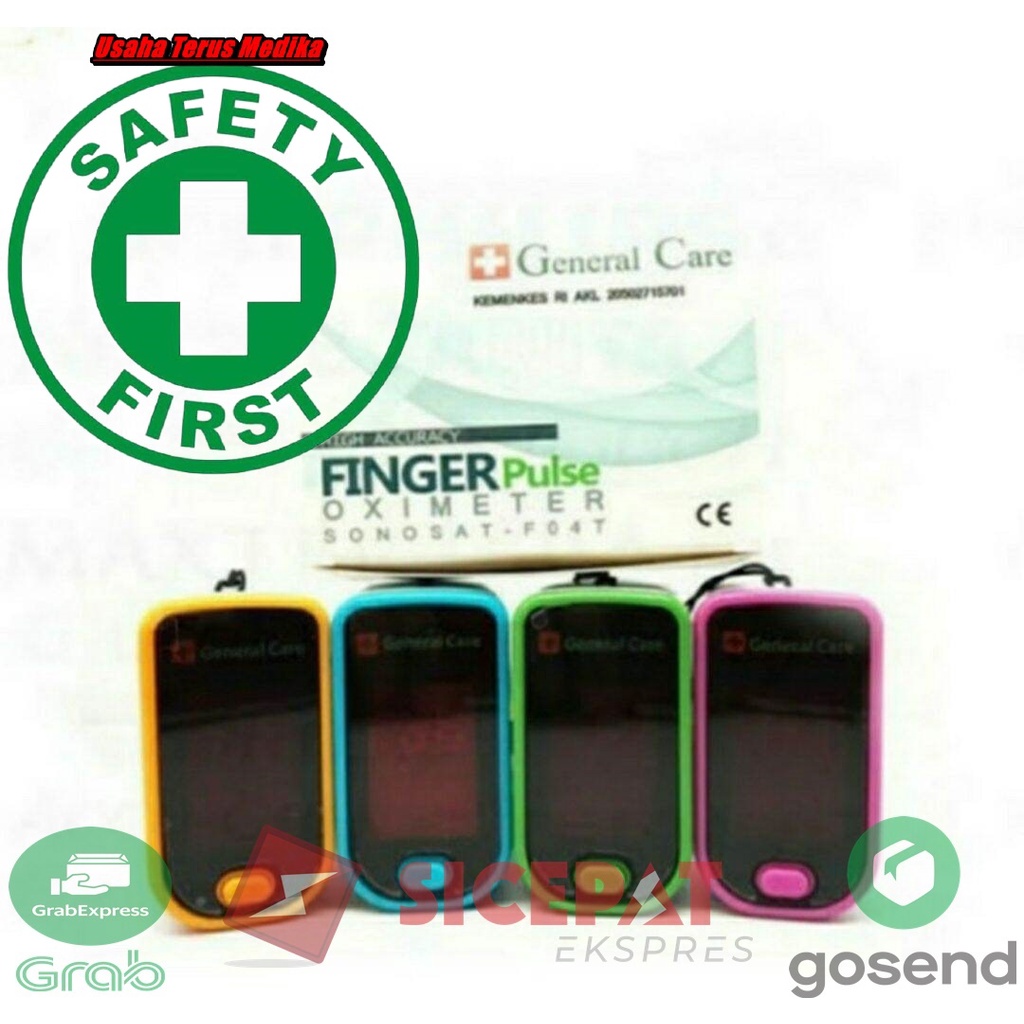

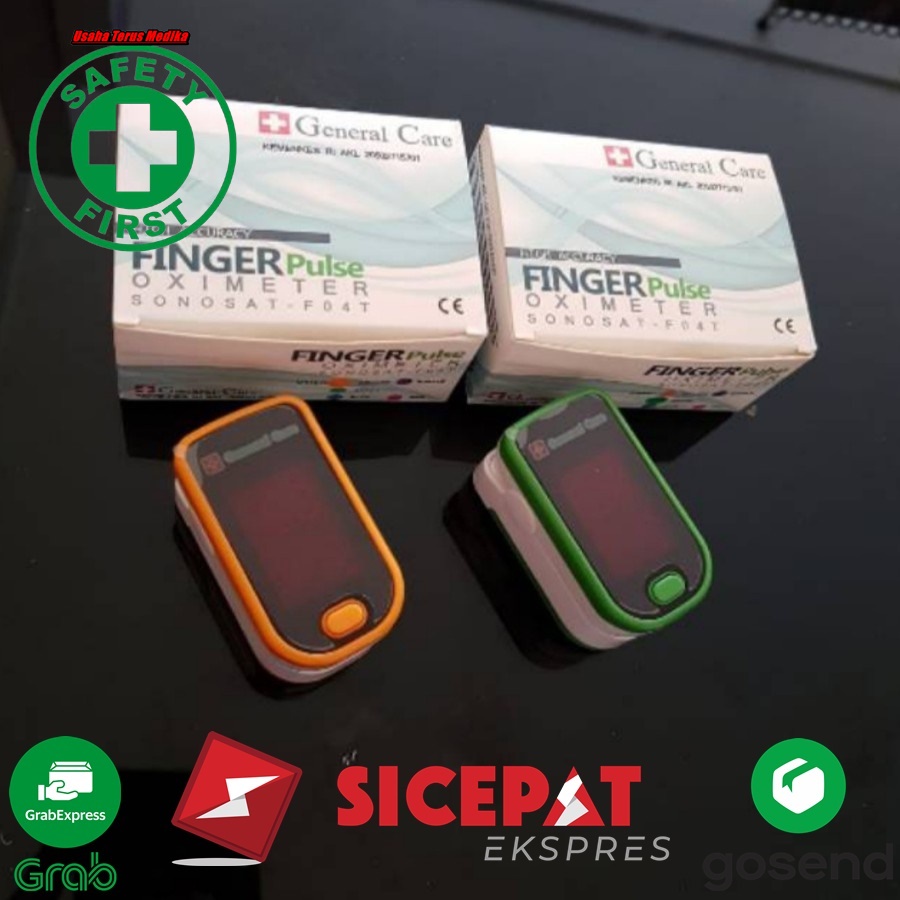

Gambar produk
