PT2315E Audio Processor Stereo Board Tone Control Hi-Fi Class pt2315e

Detail PT2315E Audio Processor Stereo Board Tone Control Hi-Fi Class pt2315e

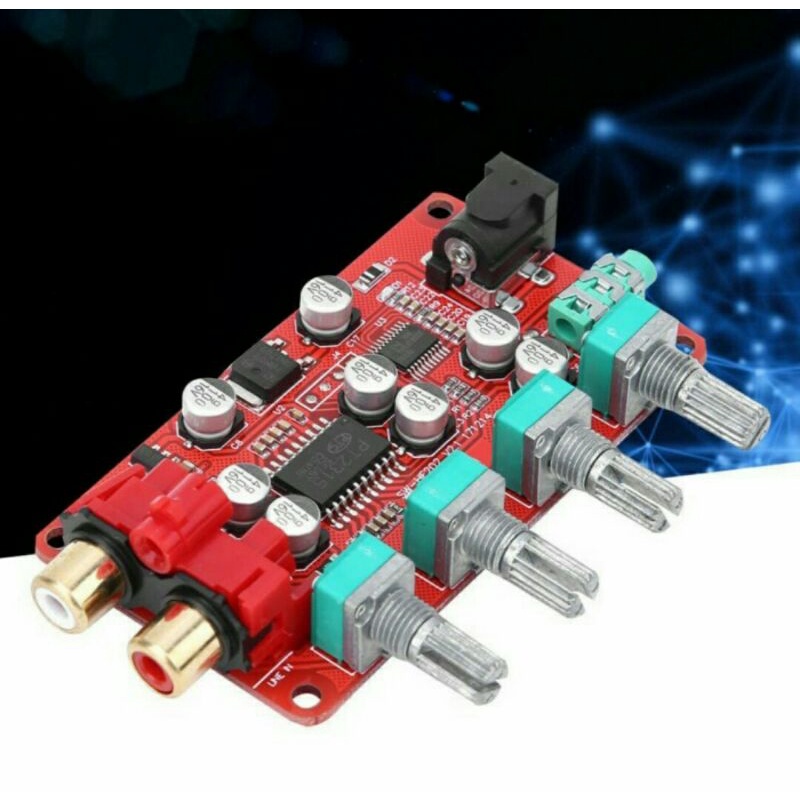

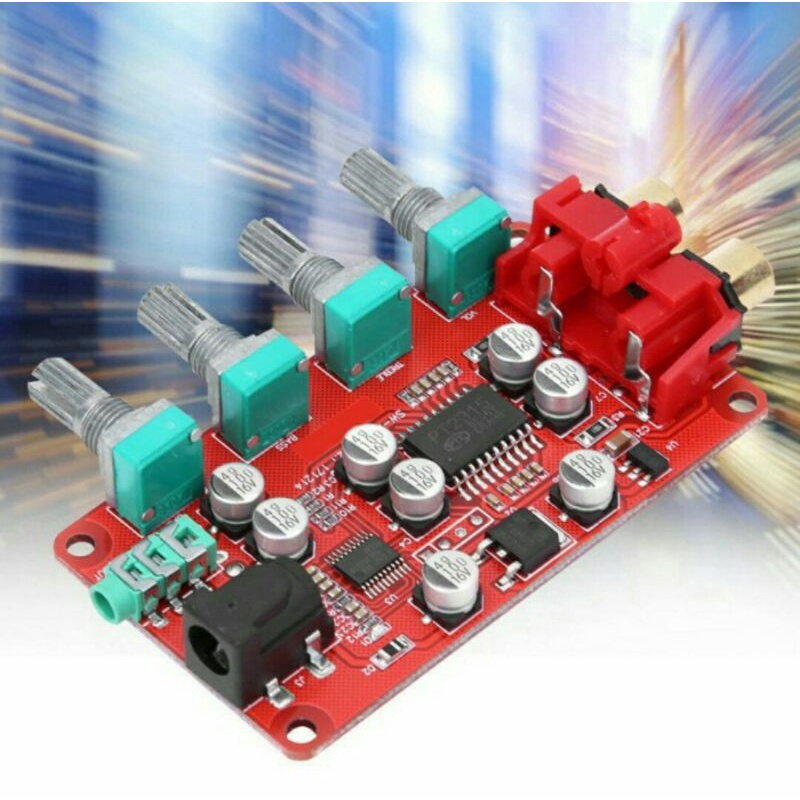

PT2315E Audio Processor Stereo Board Tone Control Hi-Fi Class pt2315e

Feature:
1. Total volume, treble, bass, balance, 4-channel potentiometer adjustment, the indicator light flashes when adjusting.
2. 3.5mm headphone jack, 2-channel audio output, RCAx2 2-channel audio input.
3. Made of high quality electronic components, stable and reliable performance.
4. Low noise figure to make chips, the total harmonic distortion is less, and the volume of the chip is smaller.
5. Clear, realism and natural sound that is to emerge in your ears

Specification:
Item Type: Tone Adjustment Module
Model: HF202
Power Supply: DC9-15V DC2.1 JackAudio Input: RCA x 2 Dual Channel
Audio Output: 3.5mm Headphone Jack
Function Description:

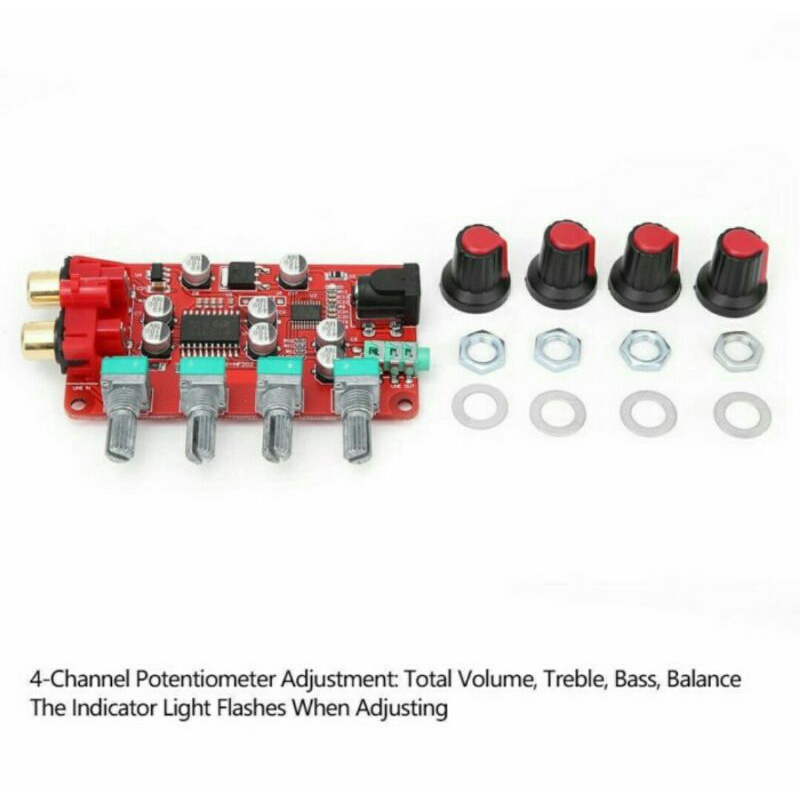

Total volume, treble, bass, balance 4 potentiometer adjustment
The indicator light flashes when adjusting
VOL: -70dB - 0dB (1.25dB steps)
TREBLE: -14dB - 14dB (2dB steps)
BASS: -14dB - 14dB (2dB steps)
BALANCE: -30dB - 0dB (1.25dB steps)

Package List:
1 x Power Amplifier Board
4 x Rotating Cover
4 x Nut
4 x Gasket

#ToneAdjustmentModule #ToneBoard #AudioProcessorBoard #SpeakerModification #AudioParts
