PSU Power Supply ATX CPU Tester Digital LCD Display

Detail PSU Power Supply ATX CPU Tester Digital LCD Display

READY STOK...

PSU Power Supply ATX CPU Tester Digital LCD Display

Power Supply Tester berguna untuk mendeteksi sistem power supply apakah berfungsi dengan baik atau tidak (sedang trouble), menghindari kerusakan eqiupment komputer anda. Sangat bermanfaat untuk fungsional check yg cepat, dapat mendeteksi sistem power supply dalam waktu singkat!

Spesifikas (gambaran, kurang lebih):
DIY Supplies: Electrical
Test voltage: :3.3V, -12V, 12V1, 12V2 + 5 VSB, + 5V, and PG time

Detail Produk (gambaran, kurang lebih):
1. Power supply tester bisa menguji power supply anda dan menghindari kerusakan pada perangkat komputer lebih dini dan cepat.
2. Display LCD menunjukkan status tegangan, bisa juga untuk menguji power supply
3. Simple dan mudah digunakan, tanpa perlu baterai.

Operasional kurang lebih:
1. Colok power supply 24 PIN dan P4 , P6 atau P8 ke corresponding jack dari power test suite.
2. Power on the supply of power, will hear "DuDu" ring , if no flicker (berkedip) then the power supply output voltage is normal.
3. If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed

Specification:
Housing material: Plastic
Support 24Pin, ATX 20Pin interface
Support SATA interface
Support 8Pin, 4Pin interface
Support PCI-E graphics 6Pin interface
Support the floppy disk interface
Support ATE hard disk interface
Test voltage: 3.3V, -12V, 12V1, 12V2 + 5 VSB, + 5V, and PG time

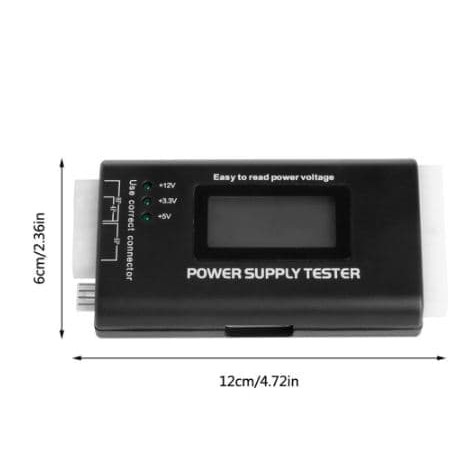

Size: approx. 126 x 64 x 18.5mm/4.96 x 2.51 x 0.72 inch

Kelengkapan:
1 x PSU Power Supply ATX CPU Tester Digital LCD Display

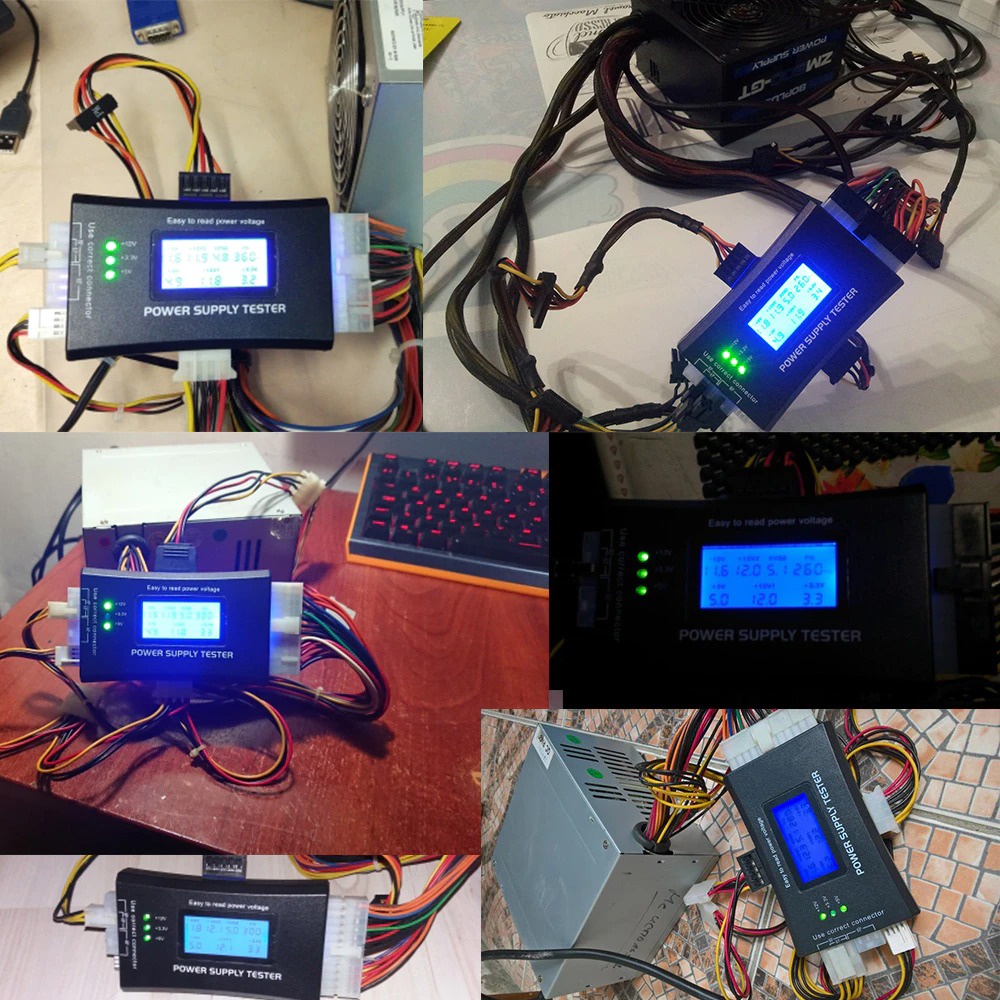

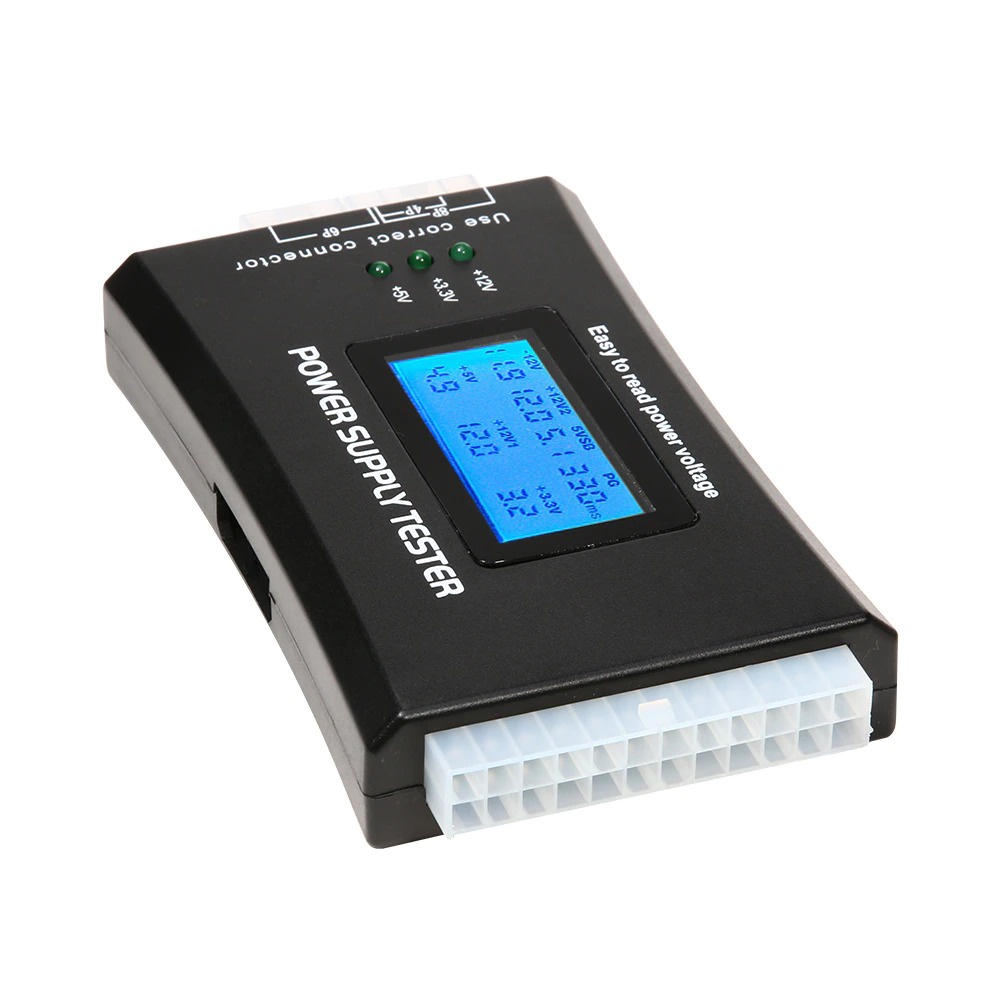

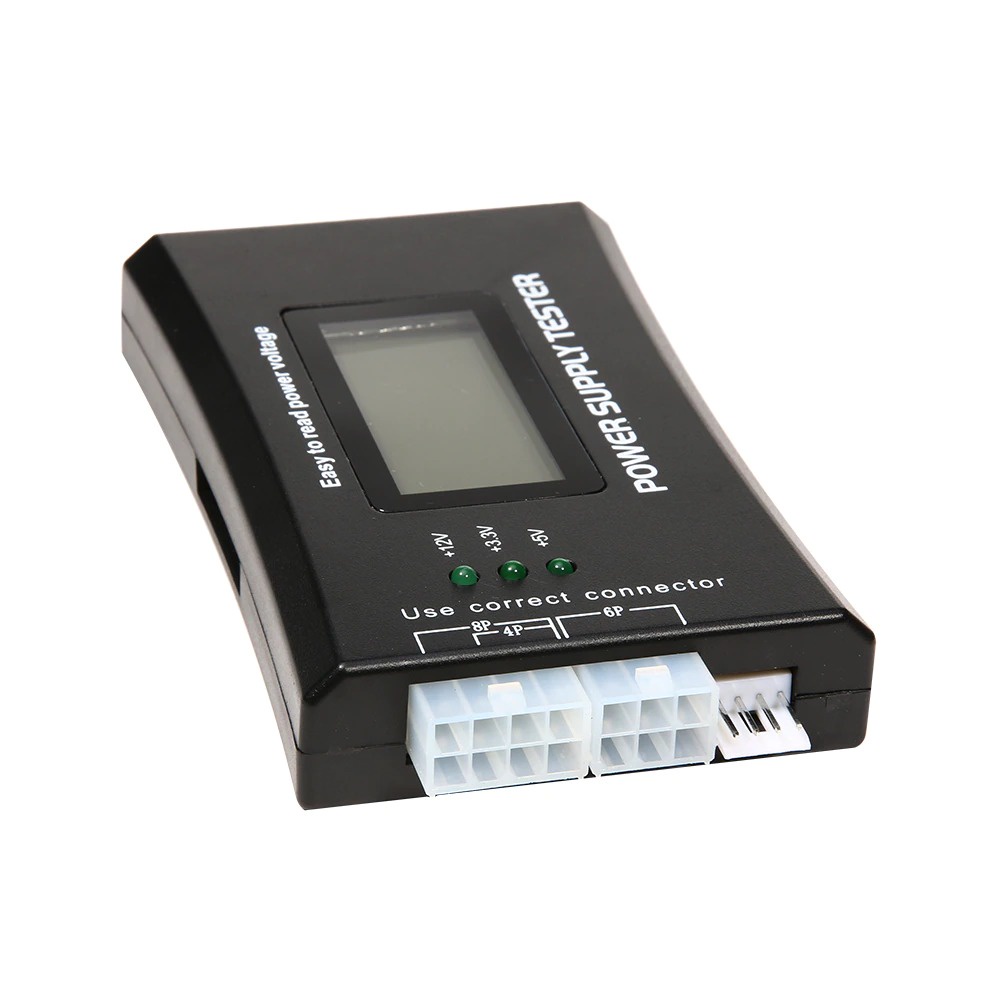

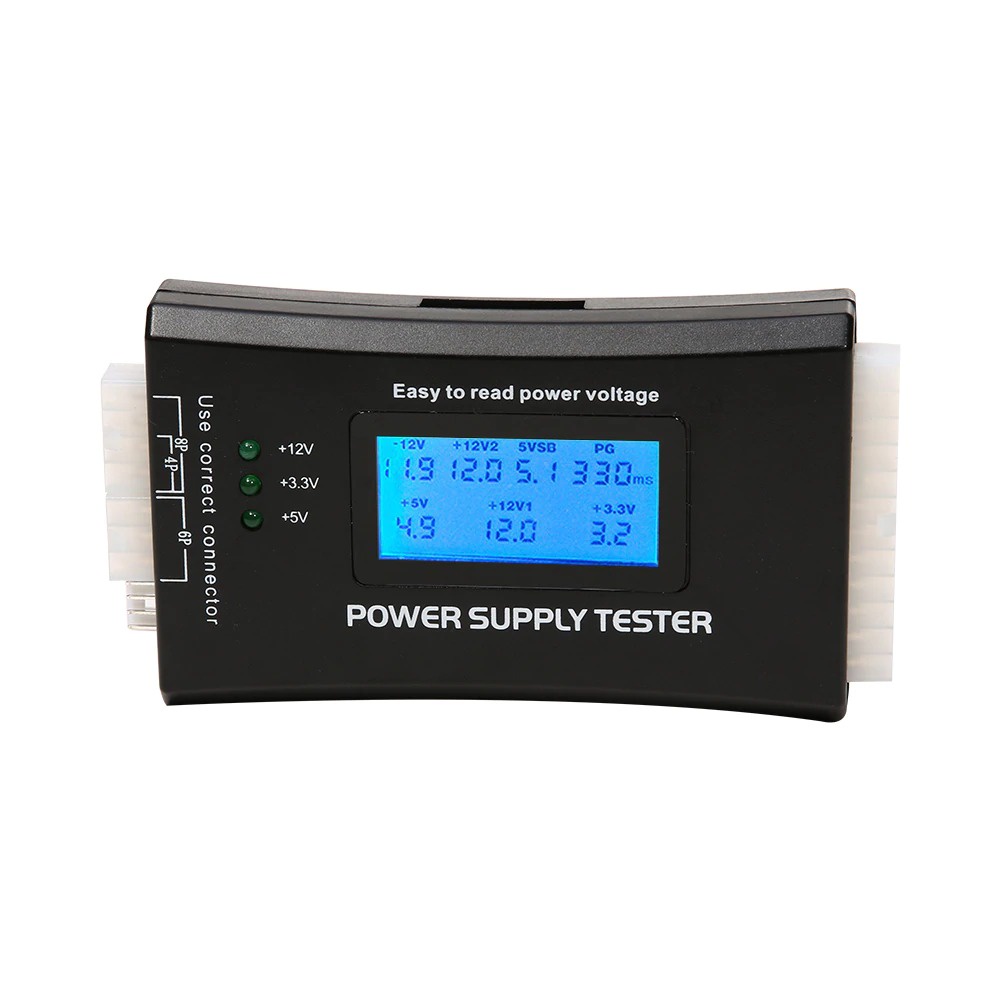

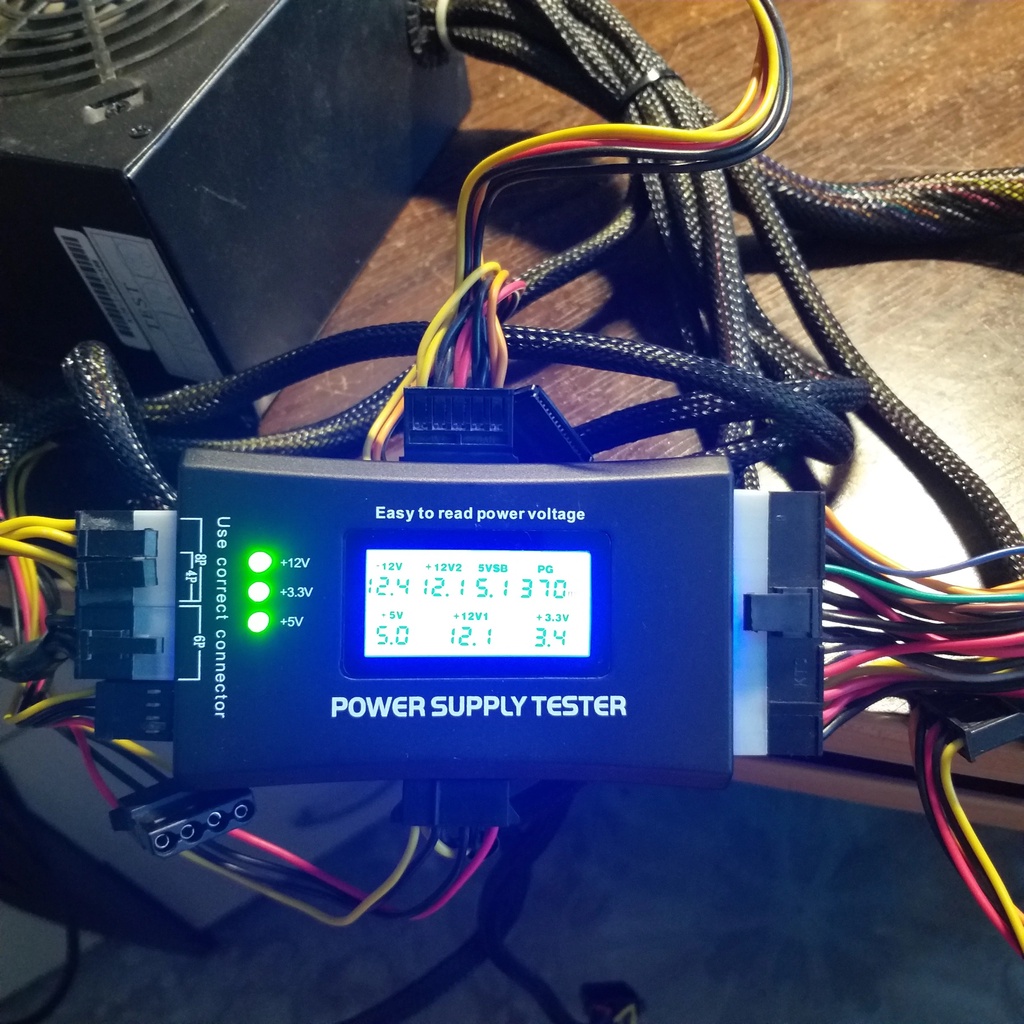

Gambar produk
