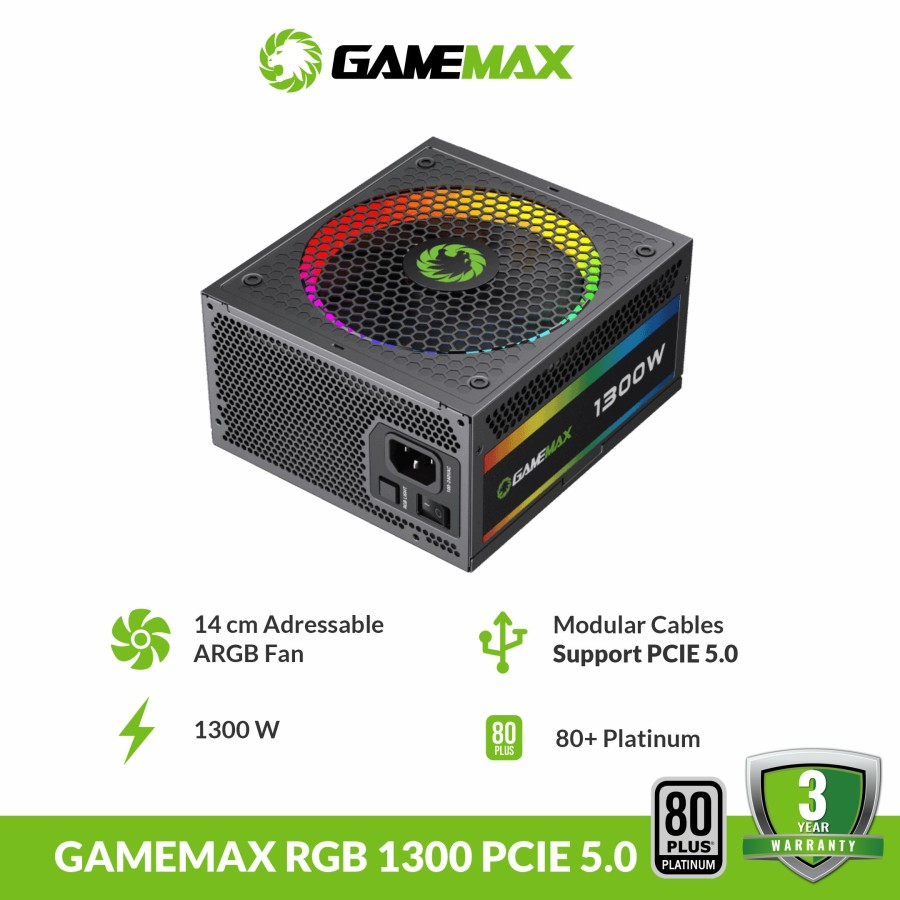

PSU Gamemax RGB 1300 ATX3.0 PCIE5.0 80+ Platinum

Detail PSU Gamemax RGB 1300 ATX3.0 PCIE5.0 80+ Platinum

RGB-1300 (ATX3.0 PCIe5.0)
GameMax RGB-1300 ATX3.0 PCIE5.0 Ready, Fully Modular 80+ Platinum Certified, LLC+DC-DC design for Powerful single +12V rail helps ensure a stable and reliable supply to other PC components. with 140mm ARGB fan helps deliver brighter and stunning light effect and supports synchronization with compatible RGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless illumination possibilities.

PSU Type： RGB
Cabling： Modular
Efficiency： 92+ Platinum

Spesifikasi:
80PLUS® Cetificate: PLATINUM
Form Factor: Intel ATX 12 V
Dimensions: 170 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information

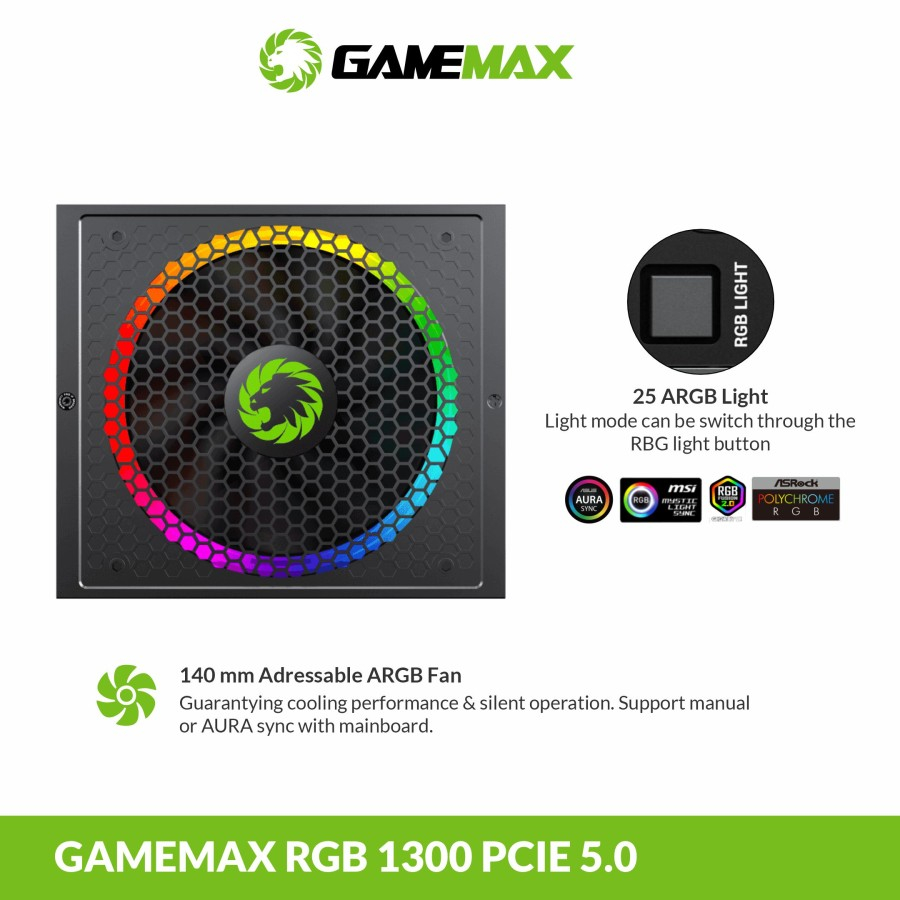

- Fan Size: 140mm with ARGB LEDs
- Fan Control: Temperature control
- Fan Bearing: Fluid Dynamic Bearing
- Life Expectancy: 50,000 hours

Cable Information
- Modularity: Fully Modular
- Cable type: Flat black cables

Electrical Features
- Operating Temperature” 0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
- MTBF: 100,000 Hours (@ 25 °C, Excl. fan)
- AC Input: Full Range
- Protection: OPP, OVP, UVP, OCP, OTP, SCP

Safety Ceritificate : cTUVus, TUV, CB, CCC, EAC, CE
Environmental Compliance: RoHS

RGB Modes Operation Instructions:
Key Function: RGB LED Status
Turn On, Entry last Mode: Keep the Save memory mode
Press RGB Switch: Select RGB light mode
Press and Hold in 3sec: OFF the RGB LED light
Press the Switch again: White light flashes once and Entry in o the last mode
Press Longer Don't release: Entry Self-Test mode(All led White Light）
Release after Press longer: Exit Self-Test mode, Entry Last memory mode
Aura SYNC Mode: Access external ARGB HUB or 5V 3pin signal from motherboard
What's In The Box:
Power Supply
Screws
Manual
2 x Cable Ties

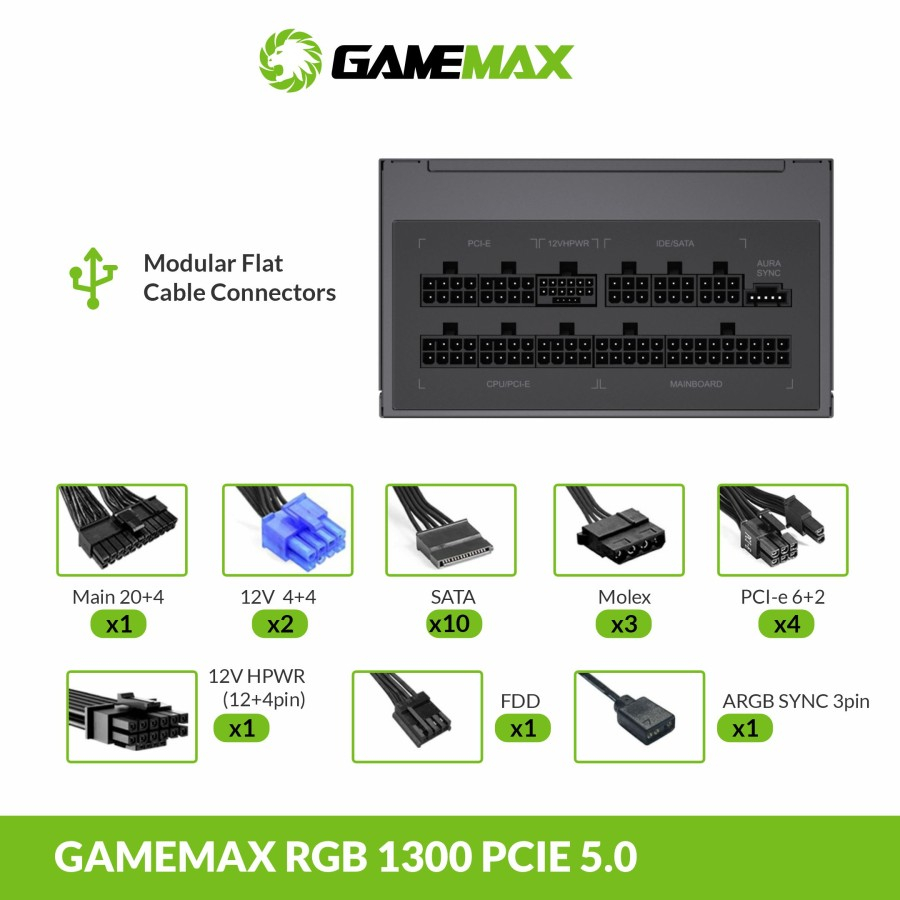

Connector:
20+4 Pin Main Connectors: 1
4+4 Pin 12V Connector:s 2
SATA Connectors: 10
5-Pin Molex Connectors: 3
6+2 Pin PCI-e Connectors: 4

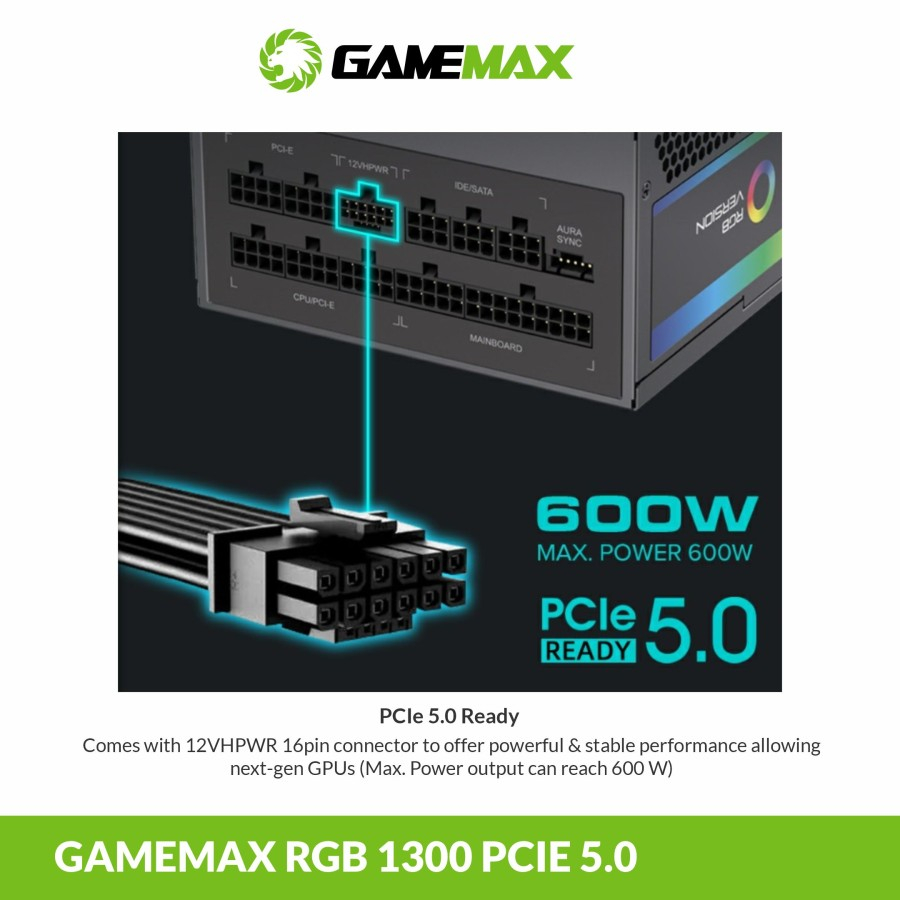

12+4 Pin 12V HPWR: 1
FDD: 1
