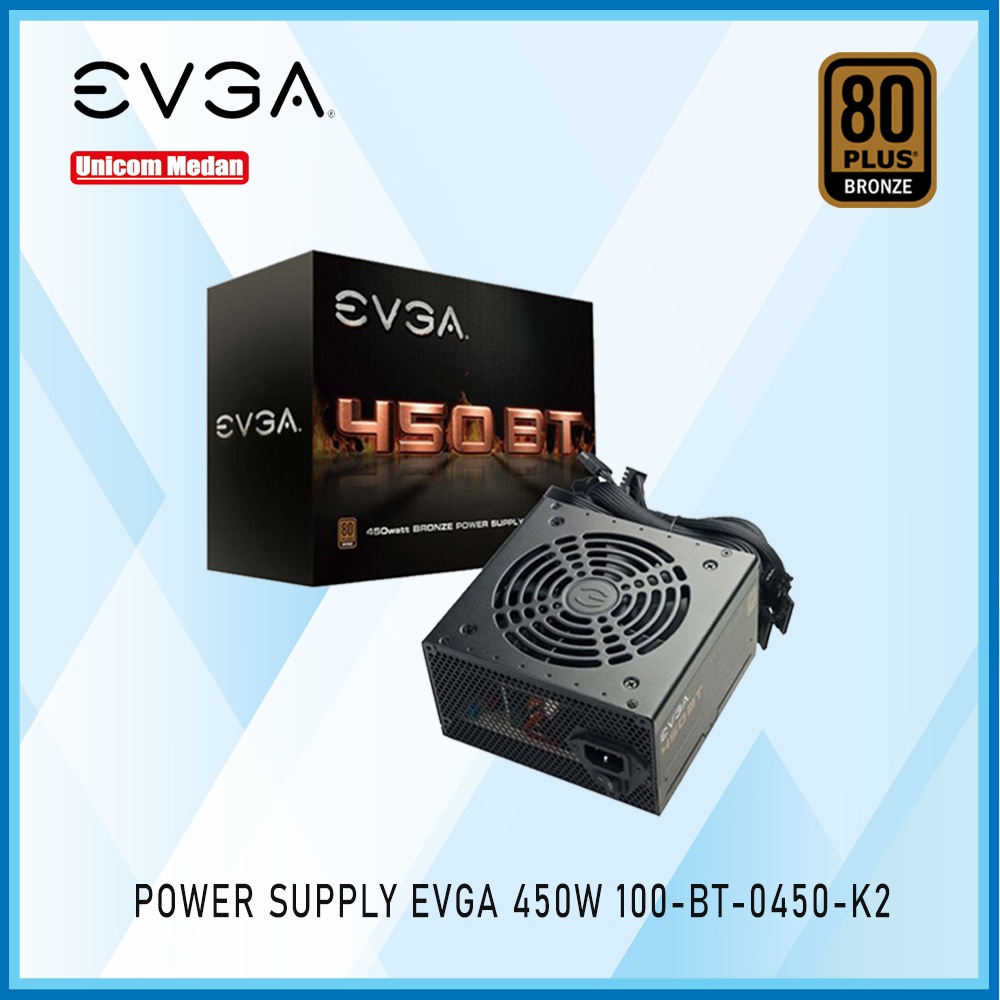

Detail PSU EVGA 450W 80PLUS BRONZE 100-BT-0450-K2 POWER SUPPLY
PSU EVGA 450W 80PLUS BRONZE 100-BT-0450-K2
SPECIFICATIONS:
Cable Length
ATX Cable 1x 550mm
EPS Cable 1x 600mm
PCIe Cable 1x 550mm, 150mm
SATA Cable 2x 450mm, 570mm
Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm + 810mm(Floppy)
AC Power 1x 1200mm (m)
Modular Cable Type No
Connector Quantity
24 Pin ATX 1x
EPS (CPU) 1x 8pin (4+4)
PCIe 2x 8pin (6+2)
SATA 4x
Four-Pin Peripheral 3x
Floppy 1x
Power Specs
AC Input 110 - 240 VAC, 6A, 50 - 60 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 18A 18A 35A 2.5A 0.3A
420W
90W 420W 12.5W 3.6W
Total 450W @ +30C
Additional Details
Operating Temperature 0° to 30° C
MTBF 100,000 Hours
Net Weight 4 lbs
Size 85mm (H) x 150mm (W) x 142mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 120mm Sleeve Bearing
#psu #powersupply #evga #80+ #bronze #450watt
Gambar produk
