PSU DeepCool DQ750M-V3L 750W 80 Plus Gold - Power Supply Fully Modular

Detail PSU DeepCool DQ750M-V3L 750W 80 Plus Gold - Power Supply Fully Modular

PSU DeepCool DQ750M-V3L 750W 80 Plus Gold - Power Supply Fully Modular

The DeepCool DQ750M-V3L is a fully modular power supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance + DC/DC architecture, and uses all Japanese capacitors. The power output is stable and efficient, making it an excellent choice for AAA games.

GO FOR GOLD
The DQ750M-V3L power supply is 80 Plus Gold certified, will generate clean and consistent power, while reducing heat and noise. The DQ750M-V3L is energy-efficient, and provides efficiency greater than 91.9% at 50% load.

DESIGNED AND BUILT SOLID

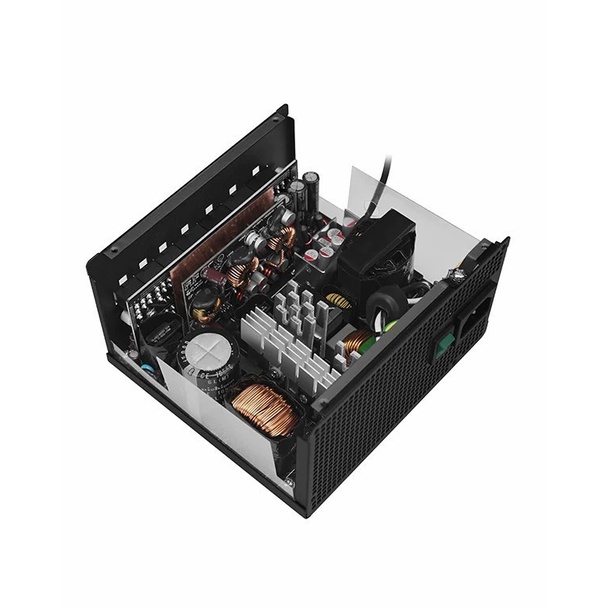

The internal design is compact, with full Japanese capacitors and materials. The main capacitor is selected from 105 bulk capacitor, making it resistant to high temperatures. Solid state capacitors are used for the auxiliary capacitors producing low noise and long life.

Technical Spec
Type ATX12V V2.4
Product Dimensions 150x140x86mm (W x L x H)
80PLUS Certifications Gold
Fan Size 120mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-500ms
Hold Up Time 16ms(80% Load)
Efficiency 90% Under Typical Load(50% Loading)
Protection SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature 0 - 40 C
Regulatory CB/CCC/CE/FCC/UKCA/BIS/EAC/CAN ICES-003(B)/NMB-003(B)
Erp Regulation ErP 2014
MTBF 100,000 Hours
