PSU Cooler Master Power Supply 500 Watt Elite V3 P500

Detail PSU Cooler Master Power Supply 500 Watt Elite V3 P500

Elite P500 230V - V3
Entry Level ATX Power Supply Unit

Active PFC + Forward Topology Design
High Temperature Resistance
Peak Power Tolerance
75% Efficiency
Durable, Reliable, And Safe
3 Year Warranty

Power Up
The Elite - v3 series power supply unit is a dependable choice for entry level PC builders and office work systems. The quiet 120mm fan, Active PFC, and 3 year warranty deliver a PSU that provides function and resilience you can count on. It’s the perfect option for work horse systems stored and operated in less than ideal conditions and climates. This PSU has been engineered for reliability with a focus on reducing random shutdowns in conditions where power sources are inconsistent and unstable, making it ideal for locations prone to experience brown outs. The Elite - v3 is a complete solution, offering performance and stability at an affordable price.

Note :
+ Cek stock terlebih dahulu sebelum order (Ketersediaan Terbatas).
+ Gambar hanya ilustrasi, versi produk dapat berbeda tergantung kebijakan vendor, namun tidak mengurangi spesifikasi dan fungsi produk

ELITE P500 230V - V3
ENTRY LEVEL ATX POWER SUPPLY UNIT
Active PFC + Forward Topology Design
High Temperature Resistance
Peak Power Tolerance
75% Efficiency
Durable, Reliable, And Safe
3 Year Warranty

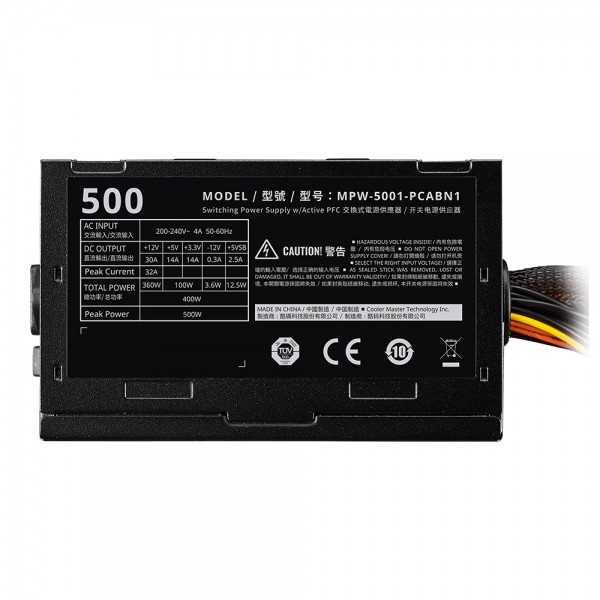

MODEL MPW-5001-PCABN1
ATX VERSION = ATX 12V Ver. 2.41
PFC = Active PFC
INPUT VOLTAGE 200-240Vac
INPUT CURRENT 4A
INPUT FREQUENCY = 50-60Hz
DIMENSIONS = (L X W X H) 140 x 150 x 86 mm
FAN SIZE == 120mm
FAN BEARING = Sleeve Bearing
EFFICIENCY = 75% @ Typical Load
80 PLUS = None 80 PLUS
ERP 2014 LOT 3 Yes
OPERATING TEMPERATURE 40°C
POWER GOOD SIGNAL 100 - 500 ms
HOLD UP TIME >14ms at 100% load
MTBF >100,000 Hours
PROTECTIONS OVP, OPP, OTP, SCP, UVP
REGULATORY TUV, CE, CB
MB 24-PIN CONNECTORS 1
EPS 4+4 PIN CONNECTORS 1
SATA CONNECTORS 3
PERIPHERAL 4-PIN CONNECTORS 2
PCI-E 6+2 PIN CONNECTORS 1
PEAK CURRENT = 32A
PEAK POWER = 500W
SERIES = Elite Serie
