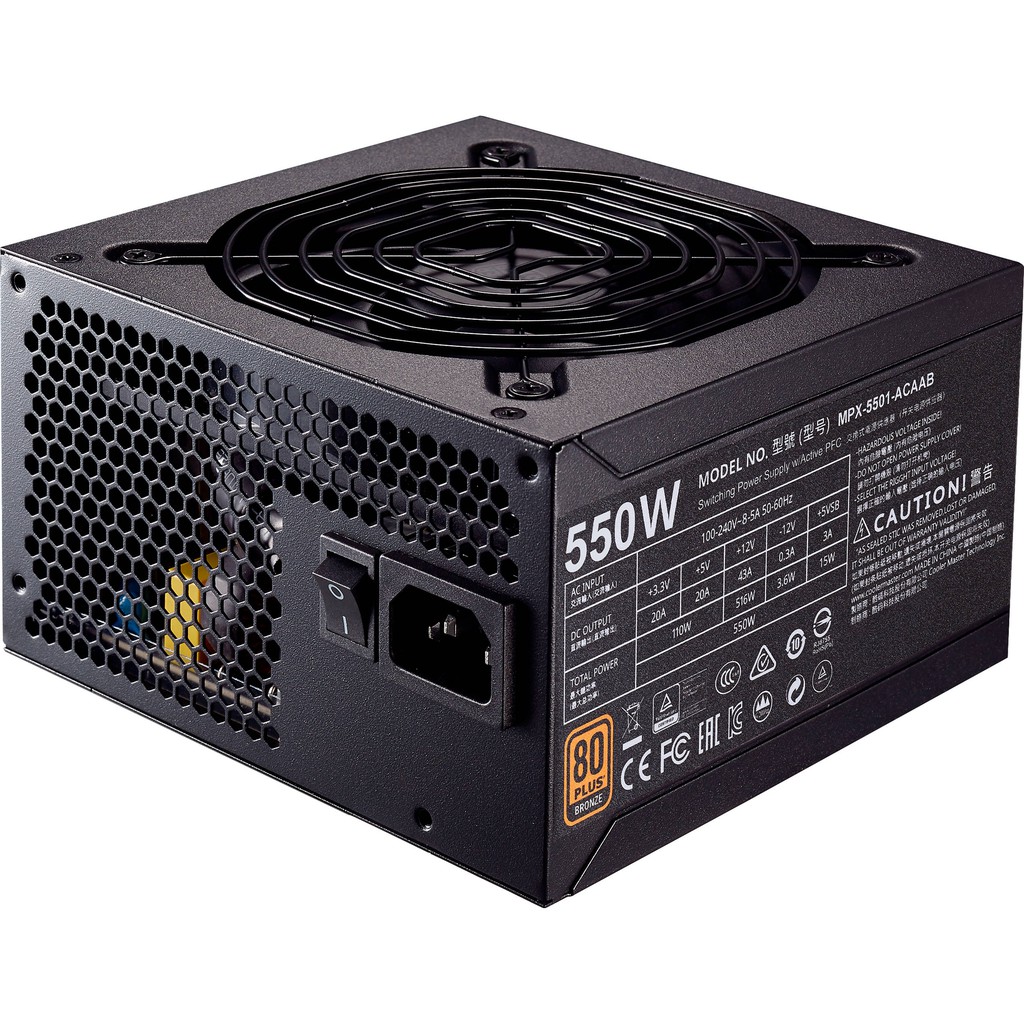

PSU COOLER MASTER MWE 550 BRONZE V2 230V 80+ POWER SUPPLY FLAT CABLE

Detail PSU COOLER MASTER MWE 550 BRONZE V2 230V 80+ POWER SUPPLY FLAT CABLE

MODEL
MPE-5501-ACAAB
ATX VERSION
ATX 12V V2.52
PFC
Active PFC
INPUT VOLTAGE
200-240V
INPUT CURRENT
8-4A
INPUT FREQUENCY
50-60Hz
DIMENSIONS (L X W X H)
140 x 150 x 86 mm
FAN SIZE
120mm
FAN BEARING
HDB
FAN SPEED
1500 RPM
NOISE LEVEL @ 20%
11.13 dBA
NOISE LEVEL @ 50%
15.6 dBA
NOISE LEVEL @ 100%
31.0 dBA
EFFICIENCY
85% Typically
80 PLUS RATING
80 PLUS Bronze
ERP 2014 LOT 3
Yes
OPERATING TEMPERATURE
40°C
POWER GOOD SIGNAL
100-500ms
HOLD UP TIME
>18ms at 100% Full Load@230Vac
MTBF
>100,000 Hours
PROTECTIONS
OVP, OPP, SCP, UVP, OTP
REGULATORY
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24-PIN CONNECTORS
1
EPS 4+4 PIN CONNECTORS
1
SATA CONNECTORS
6
PERIPHERAL 4-PIN CONNECTORS
4
PCI-E 6+2 PIN CONNECTORS
2
80 PLUS
Bronze
MODULAR
Non Modular
WATTAGE
500 to 750W
SERIE
MWE Bronze Series
